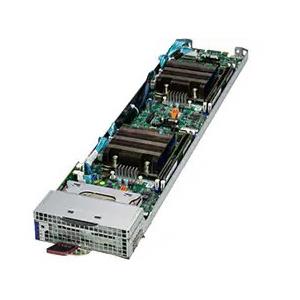

Supermicro MBI-310I-1D96N MicroBlade 2 Independent Nodes Per Module Embedded Intel Xeon D-2796NT Processor

MicroBlade For 6U/3U Enclosure, Two Nodes per Module, Each Node Supports: Embedded Intel Xeon D-2796NT Processor, 2.00GHz (20-Core/40 Thread). Up to 128GB in 2 DIMM slots, RDIMM, Chipset: SoC. On-Board: SATA/NVMe Ports. Drive Bays Configuration: 1x 2.5in HDD/SSD/NVMe U.2, 1x SATA DOM, 1x NVMe M.2 (M-Key/2280). Network Connectivity: Dual 25GbE LAN Ports, IPMI via Chassis Management Module (CMM) - (MBI-310I-1D96N)

Extra Specifications for Supermicro MBI-310I-1D96N MicroBlade 2 Independent Nodes Per Module Embedded Intel Xeon D-2796NT Processor

Main Specifications
Device Type	MicroBlade
Built-in Devices	MBD-B3SD1-20C-25G
Dimensions (WxDxH)	Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm)
Weight	Gross Weight: 5.08 lbs (2.31 kg)
Enclosure Color	Silver Grey
Processor
Compatible Processors (per Node)	Intel Xeon D-2796NT Processor SOC
Cache/Core (per Node)	Up to 20 cores, 40 threads
System Memory
Memory Capacity (per Node)	2 DIMM slots
Memory Type (per Node)	3200MHz ECC DDR4 RDIMM
Memory Voltage (per Node)	1.2V
DIMM Sizes (per node)	32GB, 64GB, 128GB
Error Detection (per Node)	Corrects single-bit errors, Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset (per Node)	SoC
Network Controllers (per Node)	Dual 25GbE LAN ports
IPMI (per Node)	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
TPM	1 TPM Header
System BIOS
BIOS Type	128Mb Flash EEPROM
BIOS Features	Plug and Play (PnP), APM 1.2, SMBIOS 2.7.1
Front Panel
LEDs	Power LED, Fault LED, Network Activity LED, UID / KVM LED
Expansion / Connectivity
Expansion Bays (per node)	1x 2.5" NVMe U.2
	1x SATA DOM
	1x SATA/NVMe M.2
Environmental
Operating Environment	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Operating Temperature: 10°C to 38°C (50°F to 100.4°F)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro MBI-310I-1D96N MicroBlade 2 Independent Nodes Per Module Embedded Intel Xeon D-2796NT Processor

$ 7,200.00$ 7,200.007200.0USD

$ 7,200.00
