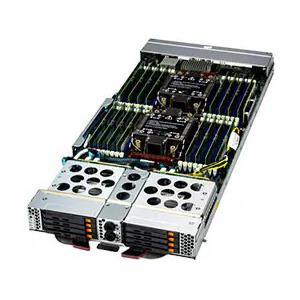

  2. Supermicro SBI-621E-1NE38 SuperBlade Sled Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series With HBM
Supermicro SBI-621E-1NE38 SuperBlade Sled Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series With HBM
Supermicro SBI-621E-1NE38 SuperBlade Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series With HBM

Supermicro SBI-621E-1NE38 SuperBlade Sled Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series With HBM

  • Enterprise data center, Cloud, VDI Applications

SuperBlade For 6U Enclosure, Support Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation and Intel Xeon CPU Max Series with High Bandwidth Memory (HBM). Up to 8TB in 32 DIMM slots, RDIMM, Chipset: On-Board: Intel C741. On-Board: Intel C741 Controller SATA3 With RAID 0,1. Drive Bays Configuration: 8x Hot-swap E3.S Drive Bays. Network Connectivity: Dual 25G Ethernet, IPMI 2.0 - (SBI-621E-1NE38)

$ 1,712.00$ 1,712.001712.0USD

$ 1,712.00

Option not available

PreOrder
25 lb

    This combination does not exist.

    Add to Cart

    Key Features


    • 70 servers per 42U Rack

    • Dual socket E (LGA-4677) supports 5th/4th Gen Intel Xeon Scalable processors

    • Intel C741 chipset

    • 32 DDR5 DIMM slots, 2DPC with 5600MHz ECC RDIMM

    • Support up to 8 Hot-swap drives

    • Dual-port 25G Ethernet (LOM), additional dual-port 25G Ethernet via mezzanine card

    • IPMI 2.0 / KVM over IP / Redfish API / TPM 2.0 / Signed Firmware / HW Root of Trust

    • Front IO with 2 PCIe 5.0 slots for network cards

    • Liquid cooling solution is available

    Extra Specifications for Supermicro SBI-621E-1NE38 SuperBlade Sled Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series With HBM

    Main Specifications
    Device TypeSuperBlade Sled
    Built-in DevicesMBD-B13DEE
    Dimensions (WxDxH)Height 9.75" x Width 1.75" x Depth 23.5"
    Weight15.21 lb
    Enclosure ColorBlack
    Processor
    Compatible Processors5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors, Intel Xeon CPU Max Series with High Bandwidth Memory (HBM)
    Compatible SocketDual Socket E (LGA-4677)
    System Memory
    Memory Capacity32 DDR5 DIMM slots, 2DPC with 5600MHz ECC RDIMM
    On-Board Devices
    ChipsetIntel C741
    Network ControllersOnboard Dual 25G Ethernet, Optional 2x 25GbE port via Mezzanine expansion slot
    MGMT/SecurityIPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
    GraphicsAspeed AST2600
    System BIOS
    BIOS Type256Mb SPI Flash with AMI BIOS
    BIOS FeaturesPlug and Play (PnP), PCI 2.2, ACPI up to 3.0, USB Keyboard support
    Front Panel
    ButtonsPower On/Off button, KVM button
    LEDsPower LED, UID, Network Activity LED, Fault LED
    ConnectorSUV (Serial/USB/Video) Connector
    Drive Bays
    Hot-swap8 Hot-swap E3.S drive bays
    Input / Output
    TPM1 TPM 2.0 Header
    Environmental
    Operating EnvironmentOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
