- Supermicro AS-8125GS-TNMR2 GPU 8U Barebone Dual AMD EPYC 9004 Series Processors

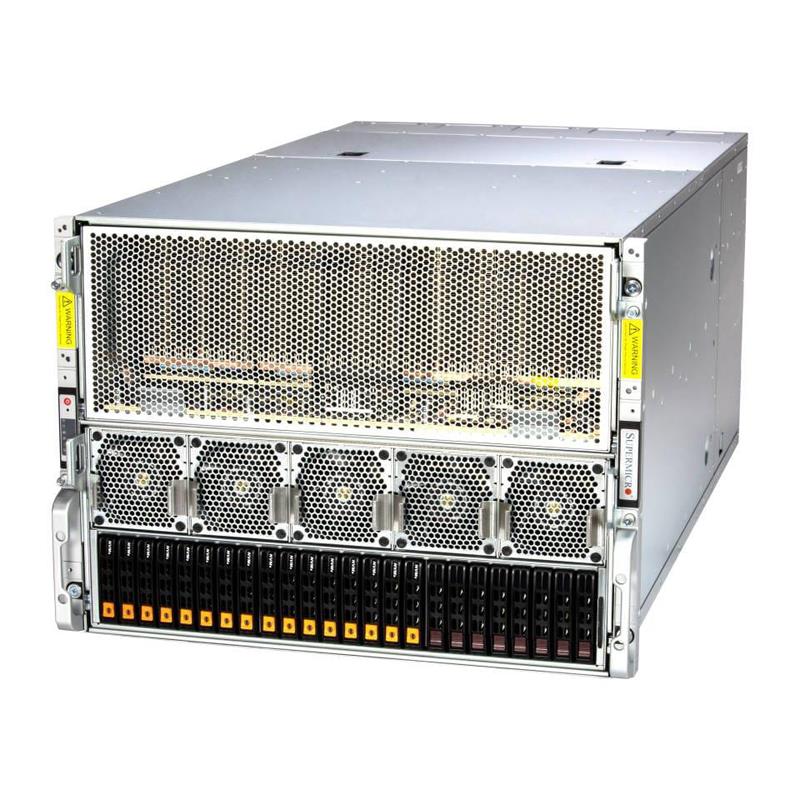

Supermicro AS-8125GS-TNMR2 GPU 8U Barebone Dual AMD EPYC 9004 Series Processors
• High Performance Computing
• AI/Deep Learning Training
• Industrial Automation, Retail
• Climate and Weather Modeling
Barebone 8U Rackmount SuperServer With AMD MI300X, Support Dual Socket SP5, Supporting AMD EPYC 9004 Series Processors 4th Generation. Up to 6TB in 24 DIMM slots, RDIMM/LRDIMM, Max GPU Count: Up to 8 onboard GPUs, Supported GPU AMD: Instinct MI300X Accelerators. Chipset: AMD SP5, On-Board: NVMe. Drive Bays Configuration: 16x Front Hot-swap 2.5in NVMe Drive Bays, 2x Front Hot-swap 2.5in SATA Drive Bays, 2x M.2 NVMe Slots (M-key). Flexible Networking Options, 3000W Power Supply - (CSE-GP801TS + H13DSG-OM) - AS-8125GS-TNMR2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs (minimum 48 Cores per socket, 56 Cores recommended), 1.5TB Memory for MI300X OAM 8 GPU's, 1 Storage device, and 1 network device.) Service: OSNBD3 is highly recommended.
1. 8 NIC for GPU direct RDMA (1:1 GPU Ratio) High density 8U system with AMD Instinct MI300X 8-GPU
2. 24 DIMM Slots; Up to 6TB DRAM; 4800 ECC DDR5 LRDIMM;RDIMM;
3. 8 PCIe Gen 5.0 X16 LP, and up to 4 PCIe Gen 5.0 X16 FHFL Slots
4. Flexible networking options
5. 2x 2.5" Hot-swap SATA drive bays 1 M.2 NVMe for boot drive only up to 16x 2.5" Hot-swap NVMe drive bays (12 by default + 4 optional)
6. 10 heavy duty fans with optimal fan speed control
7. 6x 3000W redundant Titanium level power supplies
Extra Specifications for Supermicro AS-8125GS-TNMR2 GPU 8U Barebone Dual AMD EPYC 9004 Series Processors
| Product SKUs | ||
| Product SKUs | AS -8125GS-TNMR2 | |
| Motherboard | ||
| Motherboard | ||
| Processor | ||
| CPU | Dual Socket SP5 | |
| AMD EPYC™ 9004 Series Processors | ||
| Note | Supports up to 400W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 8 onboard GPU(s) | |
| Supported GPU | View GPU Options | |
| AMD: Instinct MI300X Accelerators | ||
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 24 DIMM slots | ||
| Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | AMD SP5 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Connectivity | View AOC Options | |
| Input / Output | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 +1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 8U Rackmount | |
| Model | CSE-GP801TS | |
| Dimensions and Weight | ||
| Height | 14" (355.6 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 33.2" (843.28 mm) | |
| Package | 29.5" (H) x 27.5" (W) x 51.2" (D) | |
| Weight | Gross Weight: 225 lbs (102.1 kg) | |
| Net Weight: 166 lbs (75.3 kg) | ||
| Available Color | Black front & silver body | |
| Front Panel | ||
| LED | Power status LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat & Power Fail LED | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| 12 front hot-swap 2.5" NVMe drive bay(s) | ||
| (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Default: Total 18 bay(s) 12 front hot-swap 2.5" NVMe drive bay(s) 2 front hot-swap 2.5" SATA drive bay(s) 4 front hot-swap 2.5" NVMe* drive bay(s) | ||
| 2 front hot-swap 2.5" SATA drive bay(s) | ||
| 4 front hot-swap 2.5" NVMe* drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 NVMe slot(s) (M-key) | ||
| System Cooling | ||
| Fans | N/A | |
| Power Supply | ||
| Dimension (WxHxL) | 106.5 x 82.1 x 245.5 mm | |
| +12V | Max: 91.66A / Min: 0A (200Vdc-240Vdc) | |
| 12V SB | Max: 3A / Min: 0A | |
| AC Input | 2880W: 200-207Vac / 50-60Hz | |
| 3000W: 0240Vdc / 50-60Hz (for CQC only) | ||
| 3000W: 207-240Vac / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13DSG-OM | 1 | Super H13DSG-OM Motherboard | |
| Motherboard / Chassis | CSE-GP801TS | 1 | 8U Chassis | |
| Add-on Card / Module | AOM-528G-FAN-CAS2-P | 2 | FAN board with 5 FAN connectors and 4 2x4 power connect | |
| Add-on Card / Module | AOM-DXF-IO-P | 1 | Delta Next IO module, VGA, RJ45 LAN, USB3.0, COM, UID,Ro | |
| Add-on Card / Module | AOM-GP401-PCIE-P | 1 | NIC IO board for 4U Liquid-Cool GPU System,RoHS | |
| Add-on Card / Module | AOM-GP401-SW-P | 1 | NIC adaptor board with Switch for 4U Liquid-Cool GPU Sys | |
| Add-on Card / Module | AOM-GP801-LPIO-P | 1 | NIC card carrier board for Delta-Next GPU system,RoHS | |
| Backplane | BPN-GPU-GP801-1 | 1 | Midplane for 8U GPU system, support Delta-Next, Intel PVC and AMD MI-300 carrier board along with X13DEG-M and H13DSG-OM MB,RoHS | |
| Backplane | BPN-NVME5-HS219N-S24 | 1 | NVMe Gen5 24-slot direct-attached backplane, support NVMe Gen5/SAS4/SAS3/SATA HDD/SSDs.,RoHS | |
| Cable | CBL-0223L | 6 | BLADE PWS POWER CORD C-19 TO C-20, PBF | |
| Cable | CBL-CDAT-0923A-40 | 1 | I2C, (1x6F to 1x6F)/PH2.0,40CM,24AWG,2A/p,RoHS | |
| Cable | CBL-GNZ2-1221MTS4 | 1 | GenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHS | |
| Cable | CBL-MCIO-1466M5FHDN1-J | 1 | 2 MCIOx8 (STR to STR),FFC,FOLD,62-66cm,30AWG,RoHS | |
| Cable | CBL-MCIO-1466M5FHDN3-J | 1 | 2 MCIOx8 (STR to STR),FFC,FOLD,65-66cm,30AWG,RoHS | |
| Cable | CBL-MCIO-1472M5FB-E | 1 | [NR] 4 MCIOx8 (STR to STR),FFC,FOLD,60-72cm,30AWG,RoHS | |
| Cable | CBL-OTHR-0604-21 | 1 | Fan,Locked 1x6 to 1x4,PH2.0,w/3.3VAux,21cm,28AWG,RoHS | |
| Cable | CBL-OTHR-0604-53 | 1 | Fan,Locked 1x6 to 1x4,PH2.0,w/3.3VAux,53cm,28AWG,RoHS | |
| Cable | CBL-OTHR-0795-1 | 1 | FLAT,IDC 2X11F/P1.27 at both endsNCSI,14CM,w/sh30AWGRoHS | |
| Cable | CBL-PWEX-1142-40 | 1 | MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS | |
| Cable | CBL-PWEX-1142B-20 | 2 | MicroHi (2x4F to 2x4F), PH3.0, 20cm, 8.5A/p,18#,RoHS | |
| Cable | CBL-PWEX-1442-60 | 1 | MicroHi(2x4 to 2x4),PH3.0,60cm,7.5A/p,18AWG,PUR/BLK,RoHS | |
| Cable | CBL-PWEX-1444-20 | 1 | MicroHi to McrPwrP,2x4,PH3.0,20cm,8.5 A/p,18AWG,PUR/BLK, | |
| Cable | CBL-SAST-1245-100 | 1 | Slimline x4 (STR) to Slimline x4 (STR),42.5CM,100 OHM,R | |
| Cable | CBL-CDAT-1052-70 | 1 | [NR]FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 70CM,RoHS | |
| Fan | FAN-0238L4-1 | 5 | 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan for GP801,Ro | |
| Fan | FAN-0246L4 | 5 | 80x80x80mm, 48V 14.6K/12.2K RPM Counter-rotator, rear fan, c | |
| Power Supply | PWS-3K06G-2R | 6 | AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A | |
| Power Supply | PWS-DF009-2F | 2 | 8080 FAN module use with PWS-3K06G-2R | |
| Software | SFT-DCMS-SINGLE | 1 | Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF | |
| Heatsink / Retention | SNK-P0083P | 2 | 2U Passive CPU Heat Sink for AMD Socket SP5 Processors, RoHS | |
| *Drive Tray(s) | MCP-220-00147-0B | 8 | Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design) | |
| *Drive Tray(s) | MCP-220-00167-0B | 16 | Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS | |
| *Front Panel | FPB-FP846-T | 1 | Front control board for SC846 with temperature sensor |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
