| Product SKUs |

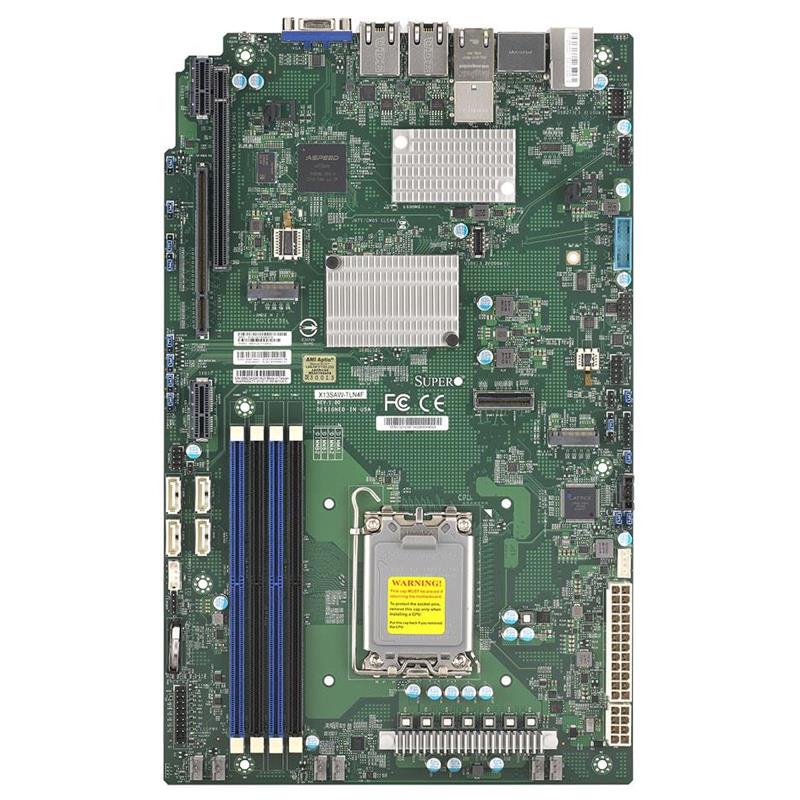

| Product SKUs | MBD-X13SAW-TLN4F |
| Physical Stats |
| Form Factor | Proprietary WIO |
| Dimension | 8" x 13" (20.32cm x 33.02cm) |
| Processor |
| CPU | Single Socket LGA-1700 supported |
| 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor |
| Core | Up to 24 cores |
| System Memory |
| Memory Capacity | 4 DIMM slots |
| *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz |
| Memory Type | 4400/4000/3600 MT/s |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | Intel R680E |
| SATA | Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Network Controllers | N/A |
| Input / Output |
| SATA | 4 SATA3 port(s) |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports |
| 2 RJ45 2.5 Gigabit Ethernet LAN port |
| USB | 2 USB 2.0 port(s) (2 via header) |
| 1 USB 3.2 Gen2 port(s) (1 via header) |
| 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear type A) |
| Video Output | 1 VGA port(s), 2 DP (DisplayPort) port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | TPM TPM 2.0 onboard |
| Expansion Slots |
| PCIe | 1 PCIe 5.0 x16, |
| 1 PCIe 4.0 x4 |
| M.2 | Key: M-Key, M-Key |
| M.2 Interface: 1 PCIe 3.0 x4; 1 PCIe 3.0 x4 |
| Form Factor: 22110, 2280, 2280 |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | RTC (Real Time Clock) Wakeup |
| SMBIOS 3.0 or later |
| UEFI 2.7 |
| PCI FW 3.0 |
| ACPI 6.1 |
| Management |
| Software | Redfish API , Supermicro Server Manager (SSM) , Supermicro Update Manager (SUM) , SuperDoctor® 5 , Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, Memory temperature, CPU temperature, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID, 6 fans with tachometer status monitoring |
| LED | Power LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Other Features | RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
