| Product SKUs |

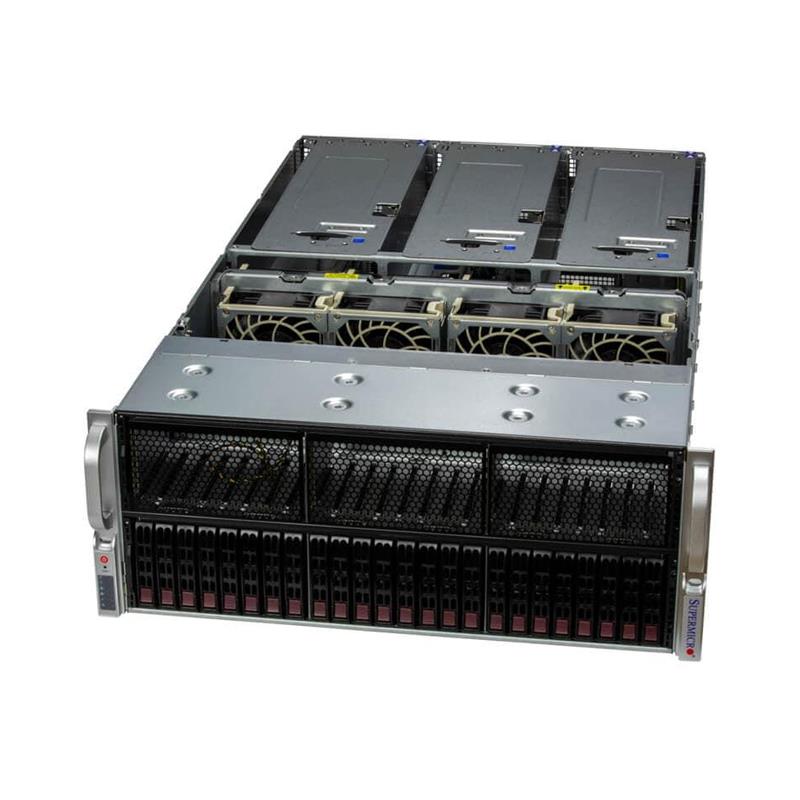

| Product SKUs | SYS-440P-TNRT |
| Motherboard |
| Motherboard | Super X12QCH+ |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Quad Socket P+ (LGA-4189) |
| 6 UPI up to 10.4GT/s |
| Support CPU TDP 120-250W * |
| Cores | Up to 28C/56T; Up to 38.5MB Cache |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization. |
| System Memory |
| Memory | Intel® Optane™ persistent memory 200 series |
| Memory Capacity: 48 DIMM slots |
| Memory Type: 3200MHz ECC DDR4 LRDIMM/RDIMM |
| Up to 12TB: 48x 256 GB DRAM |
| Up to 18TB: 24x 256 GB DRAM and 24x 512 GB PMem |
| On-Board Devices |
| Chipset | Intel® C621 |
| Network Connectivity | (Optional) AIOM 100G QSFP 28 |
| 2x 10GbE BaseT + 2x 10GbE SFP+ with Intel® X710-TM4 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2x 10G RJ45 |
| 2x 10G SFP+ |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-418HTS-R3K3AWP |
| Dimensions and Weight |
| Height | 6.96" (177mm) |
| Width | 17.3" (440.9mm) |
| Depth | 29.74" (755.5mm) |
| Package | 17.12" (H) x 28.34" (W) x 42.5" (D) |
| Weight | Net Weight: 77.16 lbs (35 kg) |
| Gross Weight: 132.27 lbs (60 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | Power On/Off |
| UID/ BMC Reset (Default) |
| LEDs | HDD activity |
| Power status |
| Network activity |
| System information (overheat/UID) |
| Expansion Slots |
| PCI-Express (PCIe) | 2 PCIe 3.0 x16 FHHL slot(s) |
| 4 PCIe 3.0 x8 FHHL slot(s) |
| 6 PCIe 3.0 x8 FHFL slot(s) |
| 6 PCIe 3.0 x16 FHFL slot(s) |
| Drive Bays / Storage |
| Hot-swap | 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (4x 2.5" NVMe hybrid) |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 8x 9cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 185 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1600W: 200-240Vac / 50-60Hz |
| DC Input | 1600W: 240Vdc for CCC only/ 132A Max |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 132A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Platinum Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
