| On-Board Devices |
| Chipset | Intel® C621A |
| Network Connectivity | 2 RJ45 10GBASE-T with Intel® X550-AT2 |
| SATA | SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| 2 RJ45 10 GBASE-T LAN ports (Intel® X550-AT2) |
| TPM | 1 TPM header |
| USB | 2 USB 2.0 Type-A ports(rear) |
| 4 USB 3.0 Type-A ports(Rear) |
| Video | 1 VGA port(Rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| SMBIOS 3.0 or later |
| Riser Card audio detection support |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Supermicro SuperDoctor® 5 (SD5) |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| System Lockdown |
| Product SKUs |
| Product SKUs | SYS-E403-12P-IPA2-C |
| Motherboard |

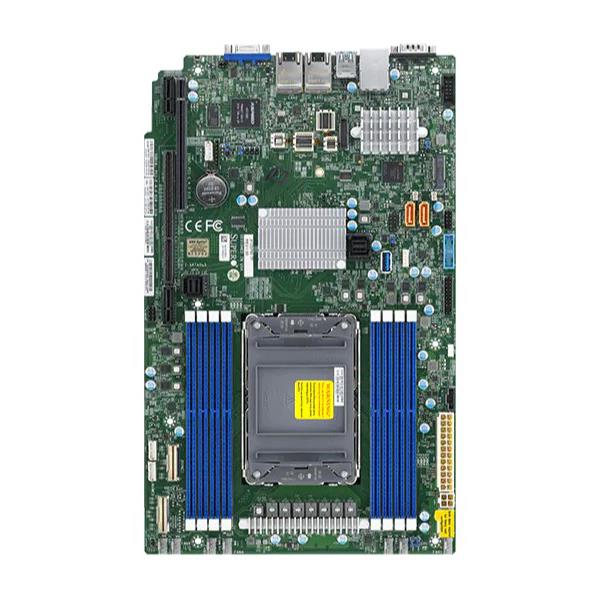

| Motherboard | Super X12SPW-TF |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Single Socket P+ (LGA-4189) |
| Note | Supports up to 205W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | Slot Count: 8 DIMM slots |
| Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2V |
| Chassis |

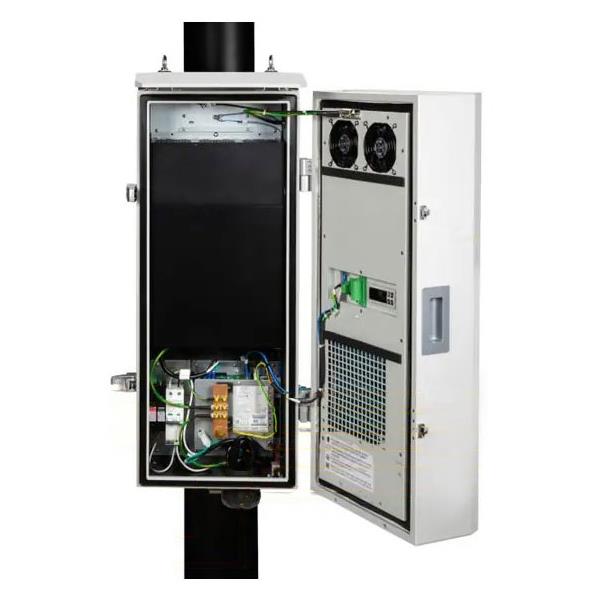

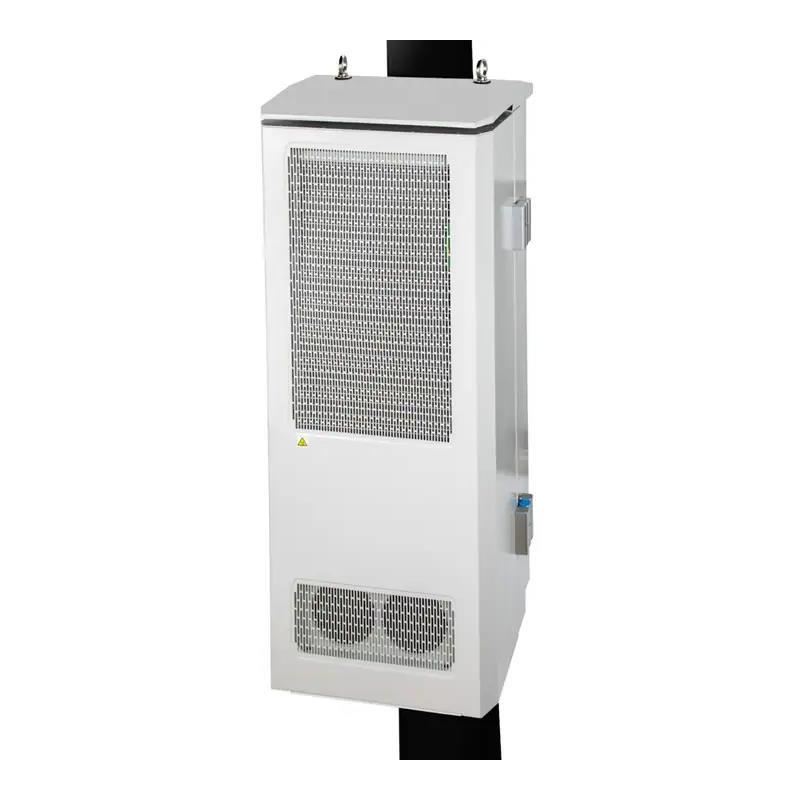

| Form Factor | Outdoor |
| Model | CSE-B403-C500S1-IP65 |
| Dimensions and Weight |
| Height | 30.95" (786 mm) |
| Width | 12.58" (319.4 mm) |
| Depth | 11.83" (300.4 mm) |
| Package | 45.35" (H) x 25.6" (W) x 27.56" (D) |
| Weight | Net Weight: 58.37 lbs (26.48 kg) |
| Available Color | Beige |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 4 bays 4 internal fixed 2.5" SATA drive bays |
| 4 internal fixed 2.5" SATA drive bays |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110) |
| System Cooling |
| Fans | 3 heavy duty fans with optimal fan speed control(In server) 80x80x38mm Fan(s) |
| 1 Active Air Conditioner Module (On IP65 enclosure) with build-in Fan(s) |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: -40°C to 46°C + solar load (-40°F to 115°F + solar load) |
