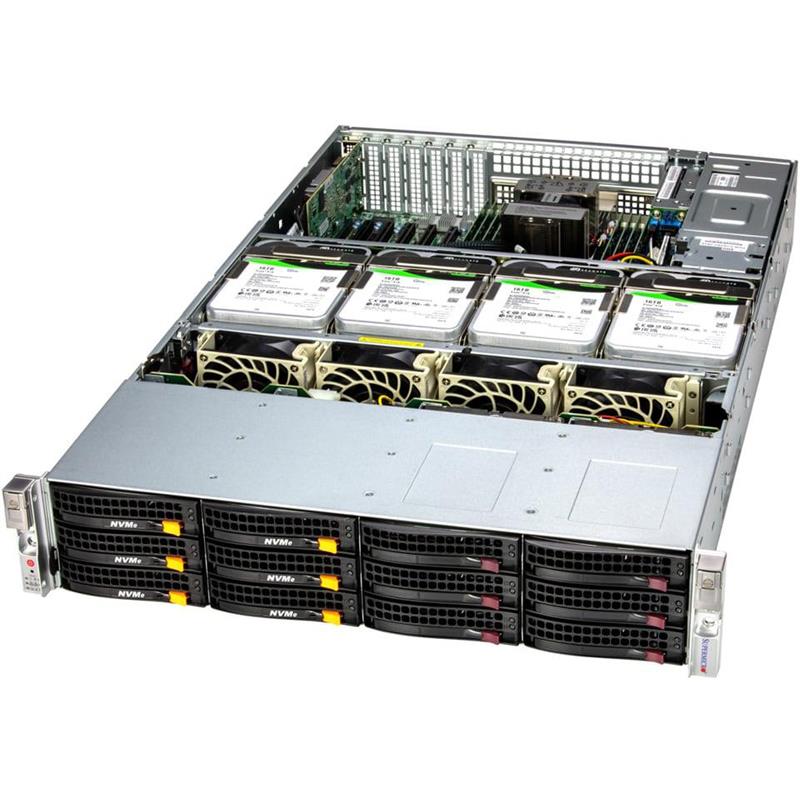

- Supermicro SSG-621E-ACR16H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
Supermicro SSG-621E-ACR16H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Barebone 2U Rackmount SuperServer, Support Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation - Up to 270W TDP CPUs (Air Cooled), Up to 4TB in 16 DIMM slots, RDIMM, Chipset: Intel C741, On-Board: Intel C741 Controller SATA3 (6 Gbps) With RAID, Drive Bays Configuration: 12x front hot-swap 3.5in SAS/SATA Drive Bays, 4x internal hot-swap 3.5in SAS/SATA Drive Bays, 2x Rear Hot-swap 2.5in SATA Drive Bays, 2x M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110). Network Connectivity: 1x RJ45 1GbE Dedicated IPMI LAN Port, 2x RJ45 10GbE LAN Ports (Broadcom BCM57416) (IPMI shared on LAN port 1), 1600W Power Supply - (CSE-829HTS-R1K62LPBP2 + X13DEI-T) -SSG-621E-ACR16H
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
3. 2x 10 GbE onboard via Broadcom BCM57416 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
4. 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
5. 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
6. 1600W Redundant Power Supplies Titanium Level (96%)
7. HW RAID support via Broadcom® 3916
Extra Specifications for Supermicro SSG-621E-ACR16H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SSG-621E-ACR16H | |
| Motherboard | ||
| Motherboard | Super X13DEI-T | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Supports up to 270W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 16 DIMM slots | ||
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 10GbE with Broadcom® BCM57416 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| NVMe | View NVMe Options | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1) | ||
| USB | 4 USB 3.0 port(s) (rear) | |
| Video | 1 VGA port(s) (Rear) | |
| Serial | 1 COM port(s) (Rear) | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-829HTS-R1K62LPBP2 | |
| Dimensions and Weight | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 27.75" (705 mm) | |
| Package | 10.8" (H) x 25.9" (W) x 39.3" (D) | |
| Weight | Gross Weight: 62 lbs (28.12 kg) | |
| Net Weight: 41.5 lbs (18.82 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| LED | Power status LED | |
| System Information LED | ||
| Power Fail LED | ||
| HDD Fail LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| 2 rear hot-swap 2.5" SATA drive bay(s) | ||
| (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Option A: Total 6 bay(s) 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s) | ||
| 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s) | ||
| 12 front hot-swap 3.5" SAS/SATA drive bay(s) | ||
| Default: Total 18 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 4 internal hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) | ||
| 4 internal hot-swap 3.5" SAS/SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 4 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 73.5 x 40 x 203 mm | |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 133A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1600W: 200-240Vac / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| [Test Report] | ||
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13DEI-T | 1 | Super X13DEI-T Motherboard | |
| Motherboard / Chassis | CSE-829HTS-R1K62LPBP2 | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-S3916L-H16IR-32DD-O | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS | |
| Backplane | BPN-NVME5-LA26A-S12 | 1 | 2U 12-Slot 3.5 | |
| Backplane | BPN-SAS3-829HA-A4 | 1 | 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable | CBL-0277L | 1 | HDD POWER CABLE (BIG 4 PIN; 32CM), PBF | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-SAST-1250A-100 | 1 | SlimSAS (x8 ST to x4 STR and miniS)80/50CM,100OHM,RoHS | |
| Cable | CBL-SAST-1281-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, | |
| Cable | CBL-CDAT-0607 | 1 | [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD,Ro | |
| Cable | CBL-CDAT-0921-85 | 1 | [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1078 | 4 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
| Parts | MCP-260-00042-3N | 1 | STD I/O shield for X13 server MB with venting holes | |
| Air Shroud | MCP-310-82619-0B | 1 | Sponge air Block sets for CSE-826B and LA26-AW | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0087V | 1 | 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform | |
| Heatsink / Retention | SNK-P0088AP4 | 1 | 2U Active CPU Heat Sink for X13 Gen. Building Block Solution | |
| *Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| *Power Distributor | PDB-PT829H-2824 | 1 | 2U standard output with 24Pin PDB support up to | |
| *Fan | FAN-0209L4 | 4 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above | |
| *Fan | FAN-0166L4 OR | 4 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) | |
| *Fan | FAN-0206L4 | 0 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | |
| *Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 | |
| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Drive Tray(s) | MCP-220-82902-0N | 1 | Middle tray plate for SC829H | |
| *Drive Tray(s) | MCP-220-82903-0N | 4 | Internal mid tray with handle for SC829H | |
| *Drive Tray(s) | MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS | |
| *Rail Set | MCP-290-00053-0N-01 | 1 | 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W |
