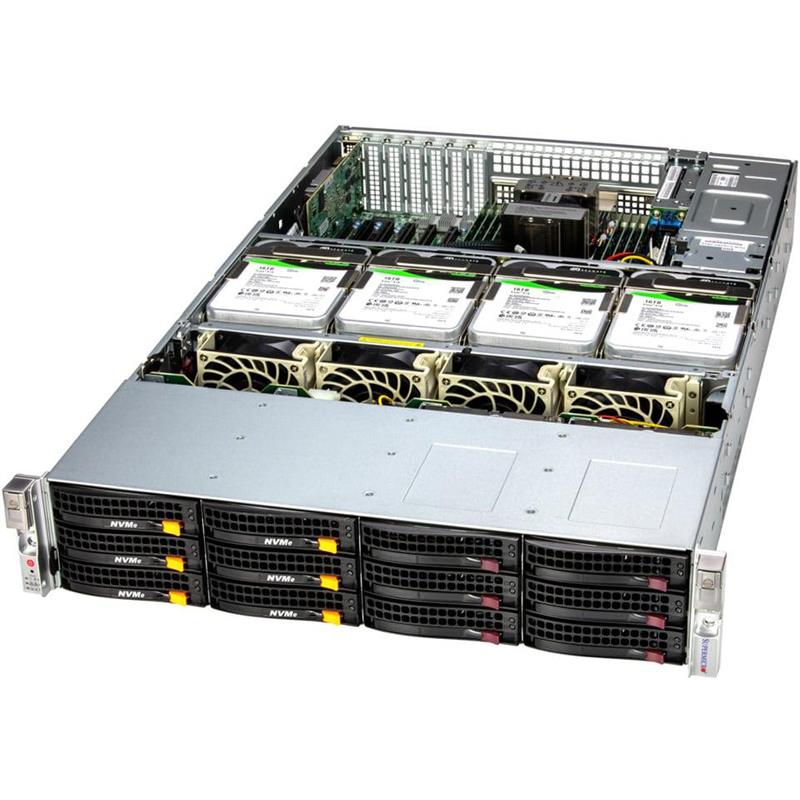

- Supermicro SSG-621E-ACR16H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
Supermicro SSG-621E-ACR16H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Barebone 2U Rackmount SuperServer, Support Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation - Up to 270W TDP CPUs (Air Cooled), Up to 4TB in 16 DIMM slots, RDIMM, Chipset: Intel C741, On-Board: Intel C741 Controller SATA3 (6 Gbps) With RAID, Drive Bays Configuration: 12x front hot-swap 3.5in SAS/SATA Drive Bays, 4x internal hot-swap 3.5in SAS/SATA Drive Bays, 2x Rear Hot-swap 2.5in SATA Drive Bays, 2x M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110). Network Connectivity: 1x RJ45 1GbE Dedicated IPMI LAN Port, 2x RJ45 10GbE LAN Ports (Broadcom BCM57416) (IPMI shared on LAN port 1), 1600W Power Supply - (CSE-829HTS-R1K62LPBP2 + X13DEI-T) -SSG-621E-ACR16H
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
3. 2x 10 GbE onboard via Broadcom BCM57416 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
4. 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
5. 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
6. 1600W Redundant Power Supplies Titanium Level (96%)
7. HW RAID support via Broadcom® 3916
Extra Specifications for Supermicro SSG-621E-ACR16H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SSG-621E-ACR16H | |
| Motherboard | ||
| Motherboard | Super X13DEI-T | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Supports up to 270W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 16 DIMM slots | ||
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 10GbE with Broadcom® BCM57416 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| NVMe | View NVMe Options | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1) | ||
| USB | 4 USB 3.0 port(s) (rear) | |
| Video | 1 VGA port(s) (Rear) | |
| Serial | 1 COM port(s) (Rear) | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-829HTS-R1K62LPBP2 | |
| Dimensions and Weight | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 27.75" (705 mm) | |
| Package | 10.8" (H) x 25.9" (W) x 39.3" (D) | |
| Weight | Gross Weight: 62 lbs (28.12 kg) | |
| Net Weight: 41.5 lbs (18.82 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| LED | Power status LED | |
| System Information LED | ||
| Power Fail LED | ||
| HDD Fail LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| 2 rear hot-swap 2.5" SATA drive bay(s) | ||
| (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Option A: Total 6 bay(s) 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s) | ||
| 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s) | ||
| 12 front hot-swap 3.5" SAS/SATA drive bay(s) | ||
| Default: Total 18 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 4 internal hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) | ||
| 4 internal hot-swap 3.5" SAS/SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 4 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 73.5 x 40 x 203 mm | |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 133A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1600W: 200-240Vac / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| [Test Report] | ||
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13DEI-T | 1 | Super X13DEI-T Motherboard | |
| Motherboard / Chassis | CSE-829HTS-R1K62LPBP2 | 1 | 2U Chassis | |
| *Rail Set | MCP-290-00053-0N-01 | 1 | 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable - for NVMe in main drive bay | CBL-MCIO-1260M5 • | 3 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS | |||
| Cable Management Arm | MCP-290-00073-0N • | 1 | Supermicro Cable Management Arm | |||
| Converter Tray | MCP-220-00043-0N • | 1 | 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY | |||
| Converter Tray - orange NVMe tab | MCP-220-00138-0B • | 1 | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab | |||
| Network Cards | AOC-S25G-b2S-O | 1 | Std LP 2-port 25G SFP28, Broadcom BCM57414 | |||
| Network Cards | AOC-S25G-i2S-O | 1 | Std. Low Profile 25G dual port SFP28, based on Intel XXV710 | |||
| Network Cards | AOC-S25G-M2S-O • | 1 | Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN | |||
| Network Cards | AOC-STG-b2T-O • | 1 | Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS | |||
| Network Cards | AOC-STGS-I2T-O • | 1 | Std LP 2-port 10G RJ45, Intel X550 | |||
| Power Cord | CBL-PWCD-0300-IS | $ 20.50 | 1 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | ||
| Power Cord | CBL-PWCD-0579 | $ 23.50 | 1 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Power Cord | CBL-PWCD-0579-1 | $ 23.50 | 1 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Supercap | BTR-CVPM05 | $ 266.50 | 1 | Cachevault supercap for storage controller | ||
| Supercap | MCP-240-00203-0N • | 1 | PCIe plastic battery holder with FH/LP-bracket | |||
| TPM | AOM-TPM-9670V-O • | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| VROC | AOC-VROCPREMOD | $ 347.50 | 1 | Intel VROC Premium, RAID0,1,5,10,HF,RoHS | ||
| VROC | AOC-VROCSTNMOD • | 1 | Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS |
