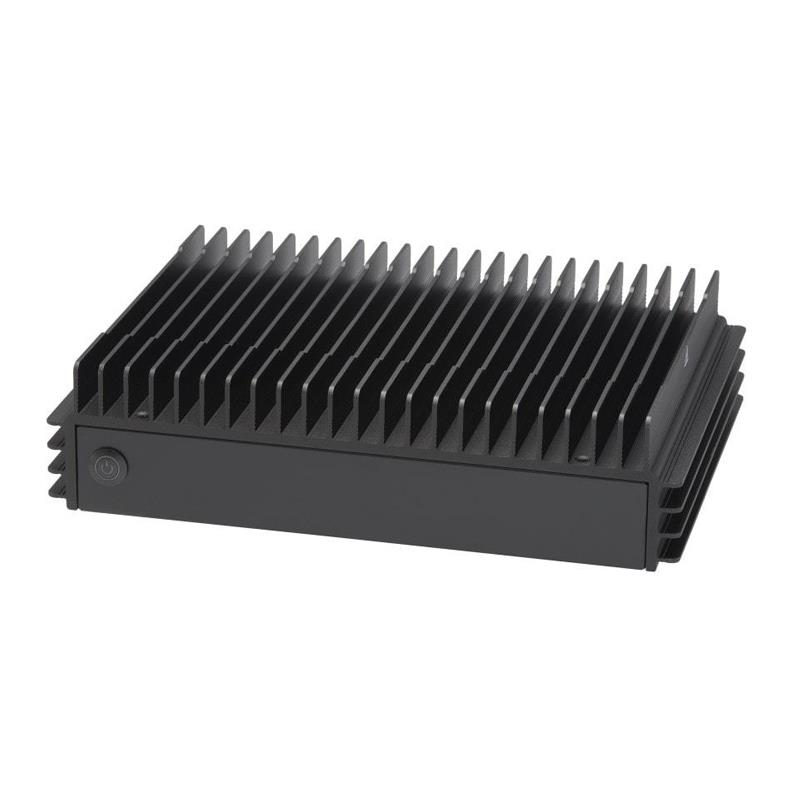

  2. Supermicro SYS-E302-13AD IoT Fanless Single Intel Core i3/Core i5/Core i7 UL/HL 12th Generation or Celeron L Processor
Supermicro SYS-E302-13AD IoT Fanless Single Intel Core i3/Core i5/Core i7 UL/HL 12th Generation or Celeron L Processor

Supermicro SYS-E302-13AD IoT Fanless Single Intel Core i3/Core i5/Core i7 UL/HL 12th Generation or Celeron L Processor

• Healthcare
• Retail
• Artificial Intelligence
• Enhanced Graphics&AI
• IoT Application

Barebone Fanless Embedded Rackmount, Support Single LGA-1700, Supporting Intel Core i3/i5/i7 UL/HL 12th Generation Or Celeron L Processor - Up to 14-Core/28Threads, Up to 64MB Cache. Up to 32GB in 16 DIMM slots, SODIMM, Chipset: Intel SoC, On-Board: System on Chip Controller for 2 SATA3 (6Gbps) Ports, Drive Bays Configuration: 1x Internal Fixed 2.5in SATA Drive Bay, 1x M.2 PCIe 3.0 x4 NVMe slot (M-key 2280). Network Connectivity: 2x RJ45 2.5GbE LAN Ports, 150W Power Supply - (CSE-E302iL3 + X13SAV-PS) - SYS-E302-13AD

$ 717.00$ 717.00717.0USD

$ 717.00

Option not available

    This combination does not exist.

    Add to Cart

    1. Intel® Alder Lake-PS, 12th Gen Core Cel/i3/i5/i7 Processor LGA1700
    2. Windows 10 EoT Enterprise 2021 LTSC and long-term Linux kernel
    3. Up to DDR5 4800MHz 32GB SO-DIMM
    4. 1x SATA 2.5” Storage, 1x M.2 M-Key (2280) support NVMe
    5. Fanless Cooling Operating Temperature : 0°C-40°C
    6. 150W 12V Lockable DC Power Adapter
    7. 3x USB 3.2 Gen2 x1, 1 xUSB 2.0, 2x 2.5GbE LAN Ports Intel® Iris Xe Graphics, 4 Independ Displays: 1x DisplayPort 1.4, 1x HDMI, 2x USB Type-C support DisplayPort

    Extra Specifications for Supermicro SYS-E302-13AD IoT Fanless Single Intel Core i3/Core i5/Core i7 UL/HL 12th Generation or Celeron L Processor

    Product SKUs
    Product SKUsSYS-E302-13AD
    Motherboard
    MotherboardSuper X13SAV-PS
    Processor
    CPUFirst fanless system with 12th Generation Intel® Core™ SoC i7/i5/i3/Celeron Processor
    Note12th Generation Intel® Core™ SoC i7/i5/i3/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP
    System Memory
    MemoryMemory Capacity: 2 DIMM slots
    Memory Type: 4800MHz DDR5 SO-DIMM
    NoteUp to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz, in 2 SODIMM slots
    Memory Voltage1.1 V
    Error DetectionNon-ECC
    On-Board Devices
    ChipsetIntel® SoC
    Network Connectivity2x 2.5GbE BaseT with Intel® I225-LM
    Input / Output
    LAN2 RJ45 2.5 GbE (Intel® i225-LM)
    OthersOnboard TPM2.0
    System BIOS
    BIOS TypeAMIUEFI
    BIOS FeaturesSMBIOS 3.0 or later
    UEFI 2.7
    PCI FW 3.0
    ACPI 6.1
    Management
    SoftwareWatch Dog
    SuperDoctor® 5
    SUM
    Power ConfigurationsACPI 6.1 Power Management
    Chassis
    Form FactorCompact
    ModelCSE-E302iL3

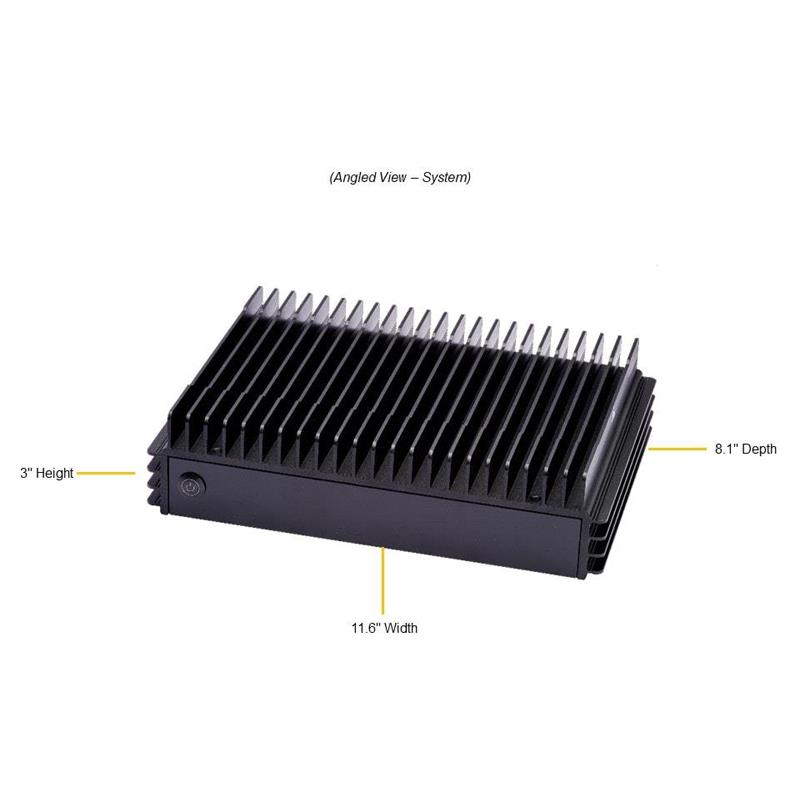

    Dimensions and Weight
    Height3" (76mm)
    Width11.6" (295mm)
    Depth8.1" (206mm)
    Package12" (H) x 16.45" (W) x 7.6" (D)
    WeightNet Weight: 8 lbs (3.63 kg)
    Gross Weight: 12 lbs (5.44 kg)
    Available ColorBlack
    Front Panel
    ButtonsPower On/Off
    LEDsPower status
    Drive Bays / Storage
    Drive Bays1x 2.5" SATA/PCIe drive bays
    M.21x M-Key 2280 (PCIe 4.0 x4 (NVMe))
    System Cooling
    FansN/A
    Power Supply
    AC Input150W: 100-240Vac / 12.5A Max / 47-63Hz
    Operating Environment
    Environmental Spec.Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
    NoteOperating Temperature:  0°C to 45°C (32°F to 113°F)
    NamePart NumberPriceAdd to CartQty.Description
    CableCBL-0473L$ 17.0017pin SATA (STR to STR), 21cm, PBF
    CableCBL-SAST-08861SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
    Wall mount/VESA mountMCP-290-30201-0B$ 72.001WALL / VESA mount kit with adapter holder

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
