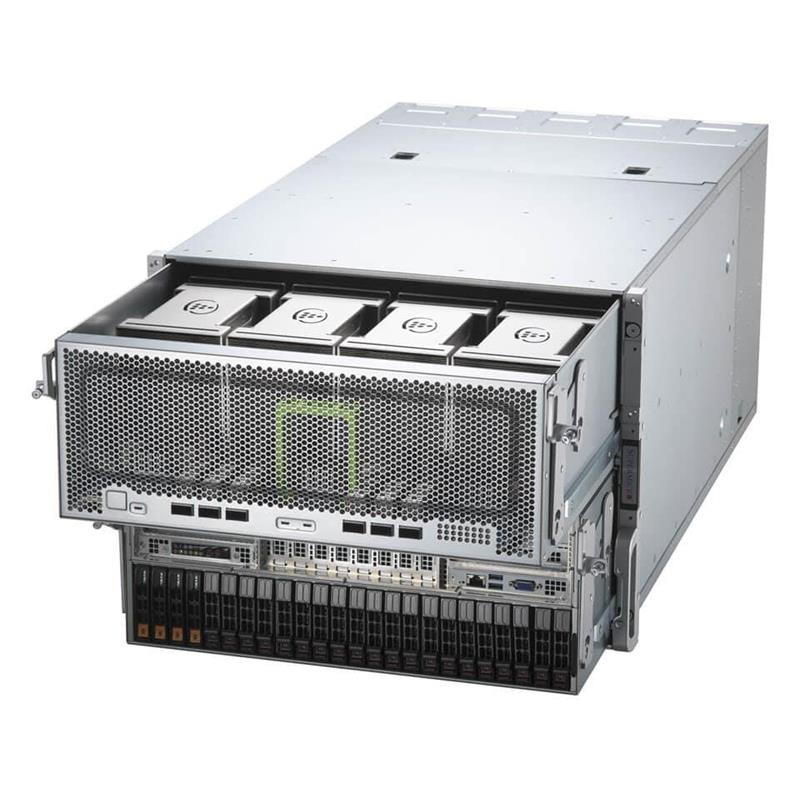

Supermicro SYS-820GH-TNR2 GPU 8U Barebone Dual Intel Xeon Scalable Processors 3rd Generation

Supermicro SYS-820GH-TNR2 GPU 8U Barebone Dual Intel Xeon Scalable Processors 3rd Generation

• Computer Vision
• Natural Language Processing
• Recommendation
• Purpose Built for AI/Deep Learning Training

Barebone 8U Rackmount AI Training SuperServer, Support Dual Socket P+ (LG-4189), Supporting Intel Xeon Scalable Processors 3rd Generation (Up to 40-Core/80Threads). Up to 8TB in 32 DIMM slots, RDIMM/LRDIMM, Supported GPU - Intel OAM: Gaudi 2. Chipset: Intel C621A, On-Board: NVMe/SATA, Drive Bays Configuration: 4x Front Hot-swap 2.5in NVMe Drive Bays, 8x Front Hot-swap 2.5in SATA Drive Bays, 2x M.2 NVMe/SATA slot (M-key). Network Connectivity: 1x RJ45 1GbE LAN Port, 3000W Power Supply - (CSE-GP802TS-R000NP + X12DPG-OA6-GD2) - SYS-820GH-TNR2

To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 16 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC). Gaudi®2 8U AI Training System

1. Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W
2. Intel® C621A Chipset
3. 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
4. 2x PCIe 4.0 x16 FHFL slot and 2x PCIe 4.0 x8 FHFL slot
5. 6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port)
6. 4x 2.5”NVMe Hot-Swap Drive Bays Up to 8x 2.5" SATA Hot-Swap Drive Bays Up to 16x 2.5" SATA Hot-Swap Drive Bays (Additional SAOC is required)
7. 12x Removable Heavy-Duty FANs (Includes 2x Dummy PSU FAN)
8. 6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level

Extra Specifications for Supermicro SYS-820GH-TNR2 GPU 8U Barebone Dual Intel Xeon Scalable Processors 3rd Generation

Product SKUs
Product SKUs	SYS-820GH-TNR2
Motherboard
Motherboard
Processor
CPU	Dual Socket P+ (LG-4189)
	3rd Gen Intel® Xeon® Scalable Processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory	Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
	Memory Capacity: 32 DIMM slots
	Up to 8TB: 32x 256 GB DRAM
Memory Voltage	1.2 V
Error Detection	ECC
On-Board Devices
Chipset	Intel® C621A
Network Connectivity	6x 400GbE QSFP-DD
	1x 1GbE BaseT
	Note: IPMI LAN port on CPU processor tray, and QSFP-DD ports are for AI Scale-out purpose
Input / Output
USB	2 USB 3.0 port(s) (2 USB 3.0)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Power Configurations	Power-on mode for AC power recovery
	ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
	7+1 Phase-switching voltage regulator
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
Chassis
Form Factor	8U Rackmount
Model	CSE-GP802TS-R000NP
Dimensions and Weight
Height	14" (356mm)
Width	17.6" (447mm)
Depth	31.5" (800mm)
Package	26.8" (H) x 40" (W) x 55.2" (D)
Weight	Gross Weight: 282 lbs (128 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off button
	Reset button
LEDs	Information LED
	PSU Failed LED
	HDD Information LED
	Power On LED
Expansion Slots
PCI-Express (PCIe)	2 PCIe 4.0 x16 FHFL slot(s)
	2 PCIe 4.0 x8 FHFL slot(s)
Drive Bays / Storage
Hot-swap	20x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated; Up to 8x 2.5" SATA dedicated or Up to 16x 2.5" SAS/SATA supported by additional SAOC)
M.2	M-Key, 2280/22110
	2 M.2 NVMe
System Cooling
Fans	12 Removable Heavy-Duty 84x203.5x82.4mm Fan(s)
Power Supply
Certification	Titanium Level
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)

Name	Part Number	Price	Add to Cart	Qty.	Description
Intel® VROC RAID Key Options	AOC-VROCINTMOD			1	Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
	Intel® VROC RAID Key Options	AOC-VROCPREMOD	$ 347.50		1	Intel VROC Premium, RAID 0, 1, 5, 10
Intel® VROC RAID Key Options	AOC-VROCSTNMOD •			1	Intel VROC Standard, RAID 0, 1, 10
	Network Card(s)	AOC-623106AC-CDAT	$ 1,630.00		1	Mellanox MCX623106AC-CDAT PCIe2-port100GbE QSFP56Gen4x16
	Network Card(s)	AOC-653105A-ECAT	$ 918.00		1	Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS.
	Network Card(s)	AOC-653105A-HDAT	$ 1,174.00		1	MCX653105A-HDAT, CX-6 VPI,HDR,200GbE,1xQSFP56,PCIe4x16
Network Card(s)	AOC-653106A-ECAT			1	Mellanox MCX653106A-ECAT ConnectX-6 VPI 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS
	Network Card(s)	AOC-653106A-HDAT	$ 2,028.00		1	Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
Network Card(s)	AOC-S100G-B2C-O			1	Standard low-profile card based on Broadcom BCM57508
Network Card(s)	AOC-S100G-M2C-O •			1	Std LP 2-port 100G QSFP28,Mellanox ConnectX-4 EN
Network Card(s)	AOC-S100GC-I2C-O			1	Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS
Network Card(s)	AOC-S25G-B2S-O •			1	Std LP 2-port 25G SFP28, Broadcom BCM57414
Network Card(s)	AOC-S25G-M2S-O			1	Std LP 2-port 25G SFP28, Mellanox ConnectX-4 L
Network Card(s)	AOC-SGP-I2 •			1	Std LP 2-port GbE RJ45, Intel i350
	Network Card(s)	AOC-SGP-I4	$ 212.50		1	Std LP 4-port GbE RJ45, Intel i350
Network Card(s)	AOC-STGF-I2S-O			1	Std LP 2-port 10G SFP+, Intel X710
Storage Control Card and Cable(s)	CBL-SAST-1276F-100 • (2pcs for S3916L or S3816L)			2	Slimline x8 (LE) to 2x Slimline x4 (STR), FFC, 76/76CM, 100-Ohm
	TPM Security Module	AOM-TPM-9670V	$ 57.00		1	SPI capable vertical TPM 2.0 provisioned for client,RoHS

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro SYS-820GH-TNR2 GPU 8U Barebone Dual Intel Xeon Scalable Processors 3rd Generation

$ 27,164.00$ 27,164.0027164.0USD

$ 27,164.00
