- Supermicro SYS-820GH-TNR2 GPU 8U Barebone Dual Intel Xeon Scalable Processors 3rd Generation

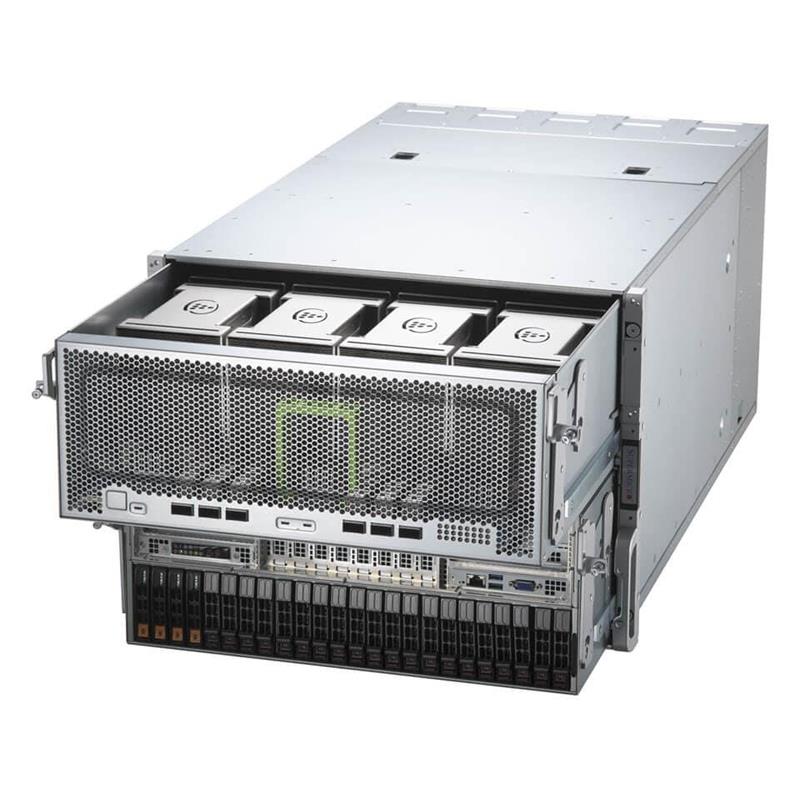

Supermicro SYS-820GH-TNR2 GPU 8U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Computer Vision
• Natural Language Processing
• Recommendation
• Purpose Built for AI/Deep Learning Training
Barebone 8U Rackmount AI Training SuperServer, Support Dual Socket P+ (LG-4189), Supporting Intel Xeon Scalable Processors 3rd Generation (Up to 40-Core/80Threads). Up to 8TB in 32 DIMM slots, RDIMM/LRDIMM, Supported GPU - Intel OAM: Gaudi 2. Chipset: Intel C621A, On-Board: NVMe/SATA, Drive Bays Configuration: 4x Front Hot-swap 2.5in NVMe Drive Bays, 8x Front Hot-swap 2.5in SATA Drive Bays, 2x M.2 NVMe/SATA slot (M-key). Network Connectivity: 1x RJ45 1GbE LAN Port, 3000W Power Supply - (CSE-GP802TS-R000NP + X12DPG-OA6-GD2) - SYS-820GH-TNR2
This product is sold only as a completely assembled system.
1. Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W
2. Intel® C621A Chipset
3. 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
4. 2x PCIe 4.0 x16 FHFL slot and 2x PCIe 4.0 x8 FHFL slot
5. 6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port)
6. 4x 2.5”NVMe Hot-Swap Drive Bays Up to 8x 2.5" SATA Hot-Swap Drive Bays Up to 16x 2.5" SATA Hot-Swap Drive Bays (Additional SAOC is required)
7. 12x Removable Heavy-Duty FANs (Includes 2x Dummy PSU FAN)
8. 6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level
Extra Specifications for Supermicro SYS-820GH-TNR2 GPU 8U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Product SKUs | ||
| Product SKUs | SYS-820GH-TNR2 | |
| Motherboard | ||
| Motherboard | ||
| Processor | ||
| CPU | Dual Socket P+ (LG-4189) | |
| 3rd Gen Intel® Xeon® Scalable Processors | ||
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU | |
| Note | Supports up to 270W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | |
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 6x 400GbE QSFP-DD | |
| 1x 1GbE BaseT | ||
| Note: IPMI LAN port on CPU processor tray, and QSFP-DD ports are for AI Scale-out purpose | ||
| Input / Output | ||
| USB | 2 USB 3.0 port(s) (2 USB 3.0) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 8U Rackmount | |
| Model | CSE-GP802TS-R000NP | |
| Dimensions and Weight | ||
| Height | 14" (356mm) | |
| Width | 17.6" (447mm) | |
| Depth | 31.5" (800mm) | |
| Package | 26.8" (H) x 40" (W) x 55.2" (D) | |
| Weight | Gross Weight: 282 lbs (128 kg) | |
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| Reset button | ||
| LEDs | Information LED | |
| PSU Failed LED | ||
| HDD Information LED | ||
| Power On LED | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 FHFL slot(s) | |
| 2 PCIe 4.0 x8 FHFL slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 20x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated; Up to 8x 2.5" SATA dedicated or Up to 16x 2.5" SAS/SATA supported by additional SAOC) | |
| M.2 | M-Key, 2280/22110 | |
| 2 M.2 NVMe | ||
| System Cooling | ||
| Fans | 12 Removable Heavy-Duty 84x203.5x82.4mm Fan(s) | |
| Power Supply | ||
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Intel® VROC RAID Key Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCPREMOD • | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | |||
| Intel® VROC RAID Key Options | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Network Card(s) | AOC-653105A-HDAT | $ 1,174.00 | 1 | MCX653105A-HDAT, CX-6 VPI,HDR,200GbE,1xQSFP56,PCIe4x16 | ||
| Network Card(s) | AOC-623106AC-CDAT | $ 1,630.00 | 1 | Mellanox MCX623106AC-CDAT PCIe2-port100GbE QSFP56Gen4x16 | ||
| Network Card(s) | AOC-SGP-I2 | $ 106.00 | 1 | Std LP 2-port GbE RJ45, Intel i350 | ||
| Network Card(s) | AOC-SGP-I4 | $ 210.50 | 1 | Std LP 4-port GbE RJ45, Intel i350 | ||
| Network Card(s) | AOC-STGF-I2S-O | 1 | Std LP 2-port 10G SFP+, Intel X710 | |||
| Network Card(s) | AOC-S25G-B2S-O | 1 | Std LP 2-port 25G SFP28, Broadcom BCM57414 | |||
| Network Card(s) | AOC-S25G-M2S-O | 1 | Std LP 2-port 25G SFP28, Mellanox ConnectX-4 L | |||
| Network Card(s) | AOC-S100G-B2C-O | 1 | Standard low-profile card based on Broadcom BCM57508 | |||
| Network Card(s) | AOC-S100G-M2C-O • | 1 | Std LP 2-port 100G QSFP28,Mellanox ConnectX-4 EN | |||
| Network Card(s) | AOC-S100GC-I2C-O • | 1 | Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS | |||
| Network Card(s) | AOC-653105A-ECAT | $ 918.00 | 1 | Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS. | ||
| Network Card(s) | AOC-653106A-ECAT | $ 1,199.00 | 1 | Mellanox MCX653106A-ECAT ConnectX-6 VPI 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS | ||
| Network Card(s) | AOC-653106A-HDAT | $ 2,028.00 | 1 | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS | ||
| Storage Control Card and Cable(s) | CBL-SAST-1276F-100 • (2pcs for S3916L or S3816L) | 2 | Slimline x8 (LE) to 2x Slimline x4 (STR), FFC, 76/76CM, 100-Ohm | |||
| TPM Security Module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS |
