- Supermicro SSG-621E-ACR12H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

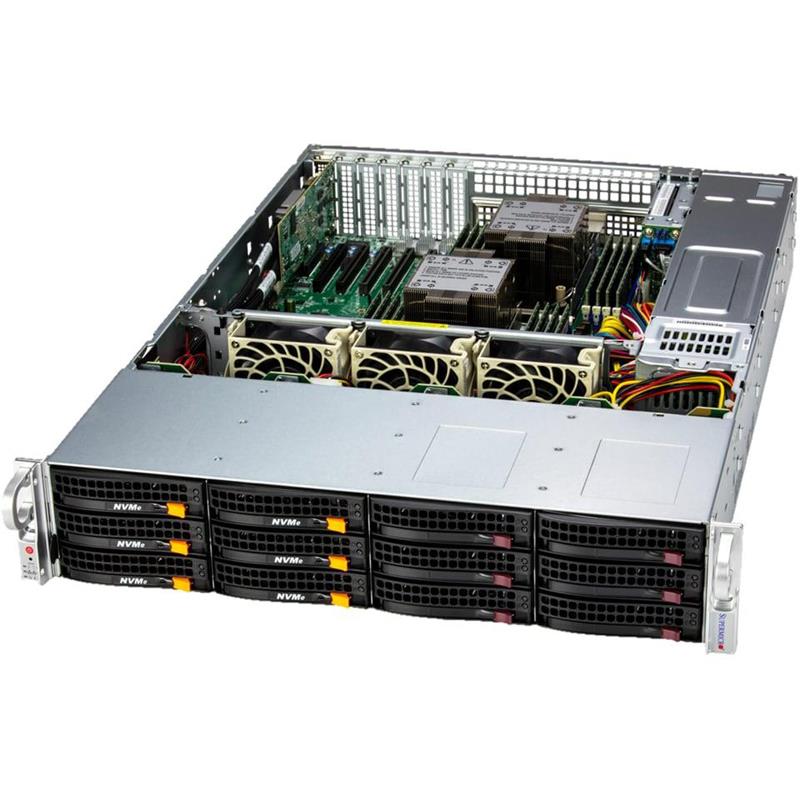

Supermicro SSG-621E-ACR12H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Barebone 2U Rackmount Front-loading Storage Server, Support Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation. Up to 4TB in 16 DIMM slots, RDIMM. Chipset: Intel C741, On-Board: SAS Hardware RAID (Optional NVMe), Drive Bays Configuration: 12 Front Hot-swap 3.5in SAS/SATA Drive Bays, 2 Rear Hot-swap 2.5in SATA Drive Bays, 2x NVMe M.2 (form factor: 2280 and 22110). Network Connectivity: 1x RJ45 1GbE Dedicated IPMI LAN Ports, 2x RJ45 10GbE LAN Ports (IPMI shared on LAN port 1), 1200W Power Supply - (CSE-826BTS-R1K23LPBP2 + X13DEI-T) - SSG-621E-ACR12H
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
3. 2x 10 GbE onboard via Broadcom BCM57416 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
4. 12x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
5. 3x 8cm hot-swap counter-rotate redundant PWM cooling fans
6. 1200W Redundant Power Supplies Titanium Level (96%)
7. HW RAID support via Broadcom® 3916
Extra Specifications for Supermicro SSG-621E-ACR12H Enterprise Optimized Storage 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SSG-621E-ACR12H | |
| Motherboard | ||
| Motherboard | Super X13DEI-T | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Supports up to 270W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 16 DIMM slots | ||
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 10GbE with Broadcom® BCM57416 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| NVMe | View NVMe Options | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1) | ||
| USB | 4 USB 3.0 port(s) (rear) | |
| Video | 1 VGA port(s) (Rear) | |
| Serial | 1 COM port(s) (Rear) | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826BTS-R1K23LPBP2 | |
| Dimensions and Weight | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.6" (650 mm) | |
| Package | 11.5" (H) x 26.5" (W) x 34" (D) | |
| Weight | Gross Weight: 58 lbs (26.3 kg) | |
| Net Weight: 34 lbs (15.4 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Power Failure LED | ||
| Buttons | System Reset | |
| Power On/Off | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| 2 rear hot-swap 2.5" SATA drive bay(s) | ||
| (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Option A: Total 6 bay(s) 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s) | ||
| 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s) | ||
| Default: Total 14 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) | ||
| 12 front hot-swap 3.5" SAS/SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 3 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 76 x 40 x 336 mm | |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| Max: 100A / Min: 0A (200Vdc-240Vdc) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1200W: 200-240Vac / 50-60Hz | ||
| 1200W: 200-240Vdc / 50-60Hz (for CCC only) | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13DEI-T | 1 | Super X13DEI-T Motherboard | |
| Motherboard / Chassis | CSE-826BTS-R1K23LPBP2 | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-S3916L-H16IR-32DD-O | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS | |
| Backplane | BPN-NVME5-LA26A-S12 | 1 | 2U 12-Slot 3.5 | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-SAST-1249-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM, | |
| Cable | CBL-SAST-1281-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, | |
| Cable | CBL-CDAT-0921-85 | 1 | [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| Parts | MCP-260-00042-3N | 1 | STD I/O shield for X13 server MB with venting holes | |
| Air Shroud | MCP-310-82619-0B | 1 | Sponge air Block sets for CSE-826B and LA26-AW | |
| Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0088P | 2 | 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems | |
| *Power Supply | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH | |
| *Power Distributor | PDB-PT826-8824 | 1 | PDB with longer 24pin for SC826B | |
| *Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 | |
| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Fan | FAN-0166L4 OR | 3 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) | |
| *Fan | FAN-0206L4 | 0 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable - for NVMe in main drive bay | CBL-MCIO-1260M5 • | 3 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS | |||
| Cable Management Arm | MCP-120-82503-0N • | 1 | Cable Arm Adapter | |||
| Cable Management Arm | MCP-290-00073-0N • | 1 | Supermicro Cable Management Arm | |||
| Converter Tray | MCP-220-00043-0N • | 1 | 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY | |||
| Converter Tray - orange NVMe tab | MCP-220-00138-0B • | 1 | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab | |||
| Network Cards | AOC-S25G-b2S-O | 1 | Std LP 2-port 25G SFP28, Broadcom BCM57414 | |||
| Network Cards | AOC-S25G-i2S-O | 1 | Std. Low Profile 25G dual port SFP28, based on Intel XXV710 | |||
| Network Cards | AOC-S25G-M2S-O • | 1 | Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN | |||
| Network Cards | AOC-STG-b2T-O | 1 | Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS | |||
| Network Cards | AOC-STGS-i2T-O | 1 | Std LP 2-port 10G RJ45, Intel X550 | |||
| Power Cord | CBL-PWCD-0300-IS | $ 20.00 | 1 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | ||
| Power Cord | CBL-PWCD-0579-1 | $ 23.00 | 1 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Power Cord | CBL-PWCD-0579 | $ 23.00 | 1 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Supercap | BTR-CVPM05 | $ 207.50 | 1 | Cachevault supercap for storage controller | ||
| Supercap | MCP-240-00203-0N | $ 26.50 | 1 | PCIe plastic battery holder with FH/LP-bracket | ||
| TPM | AOM-TPM-9670V-O • | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server | |||
| VROC | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS | ||
| VROC | AOC-VROCPREMOD • | 1 | Intel VROC Premium, RAID0,1,5,10,HF,RoHS |
