| Main Specifications |

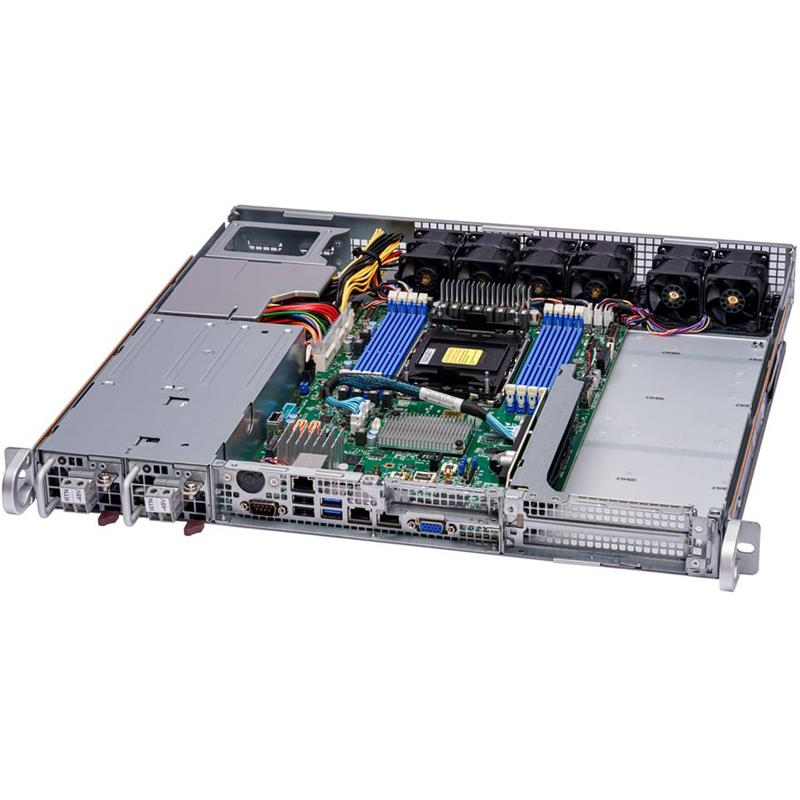

| Device Type | SuperServer |

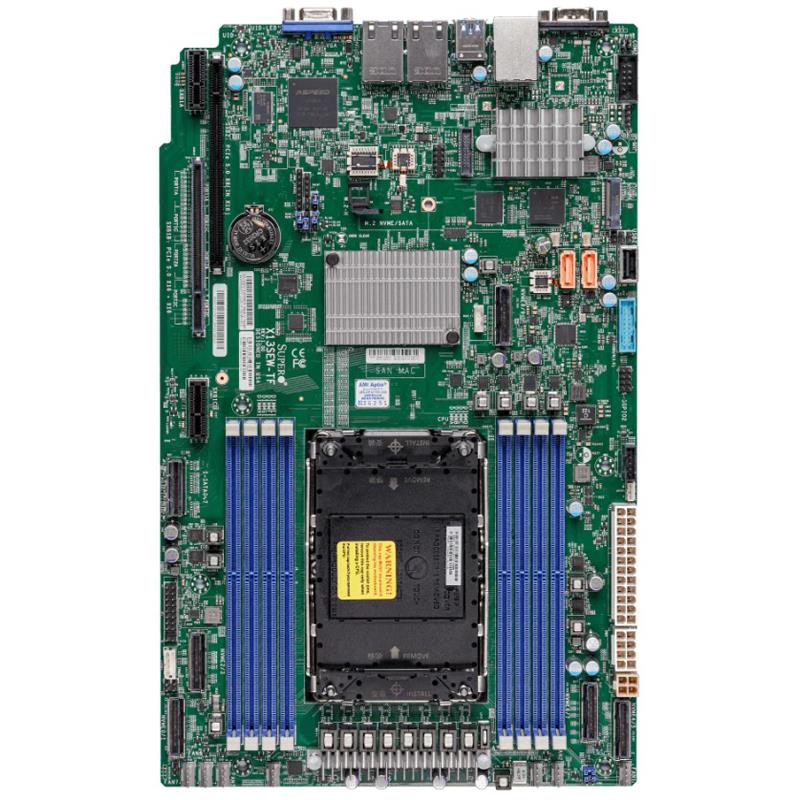

| Built-in Devices | Super X13SEW-TF-OS1 |

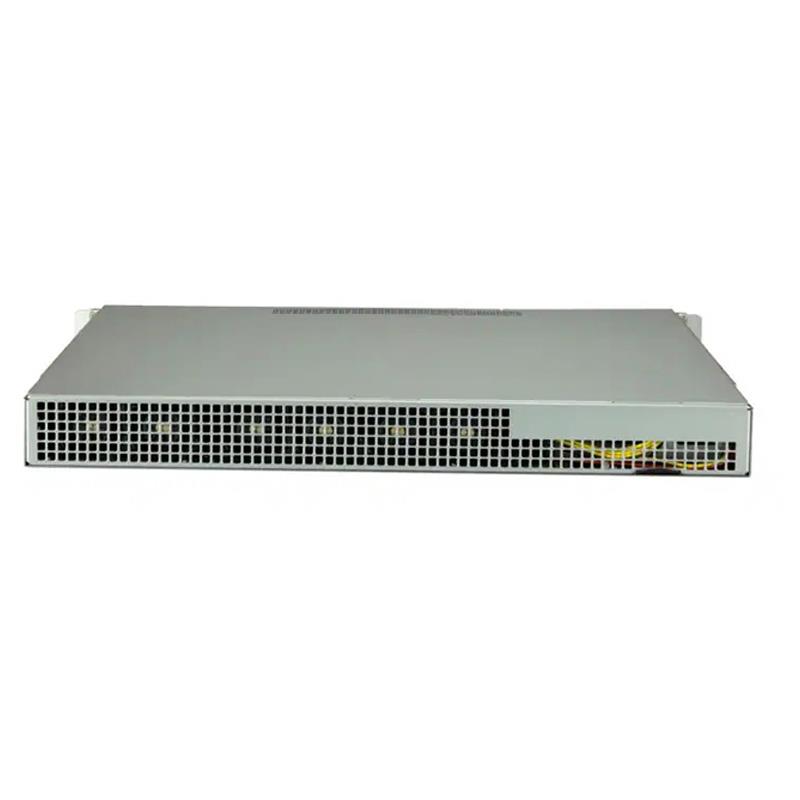

| Form Factor | 1U Rackmount - CSE-515B-R601W |
| Dimensions (WxDxH) | Height 1.7" (44.5 mm) x Width 17.2" (436.88 mm) x Depth 16.9" (429.3 mm) |
| Weight | Gross Weight: 15 lbs (6.8 kg) - Net Weight: 10 lbs (4.54 kg) |
| Enclosure Color | Silver |
| Processor |
| Compatible Processors | 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
| Compatible Socket | Single Socket E (LGA-4677) |
| Cache/Core | Up to 32C/64T, Up to 60MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) Air Cooled CPUs with TDP over 205W only supported under specific conditions |
| System Memory |
| Memory Capacity | Slot Count: 8 DIMM slots, Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| SATA RAID | SATA (6Gbps), RAID 0/1 support(Port 8 to 9) |
| Chipset | Intel C741 |
| Network Connectivity | 2 RJ45 10GbE with Intel X550-AT2, 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s), 2 RJ45 10 GbE LAN port(s) (Intel X550-AT2) |
| USB(s) | 2 USB 2.0 Type-A port(s) (front), 2 USB 3.2 Gen1 Type-A port(s) (front) |
| Video Output | 1 VGA port(s) (Front) |
| TPM | 1 TPM Header |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, PEPI |
| Front Panel |
| LEDs | LAN1 activity, LAN2 activity, Power status |
| Buttons | Power On/Off button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 LP slot(s), 2 PCIe 5.0 x16 FHFL slot(s) |
| Expansion Bays Total (Free) | 2 internal fixed 2.5" SATA drive bay(s) |
| M.2 | 1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110) |
| System Cooling |
| Fans/Air Shroud | 6 heavy duty with optimal speed control and 40x40x65mm Fan(s) |
| Power Supply |
| Power Supply | 2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
