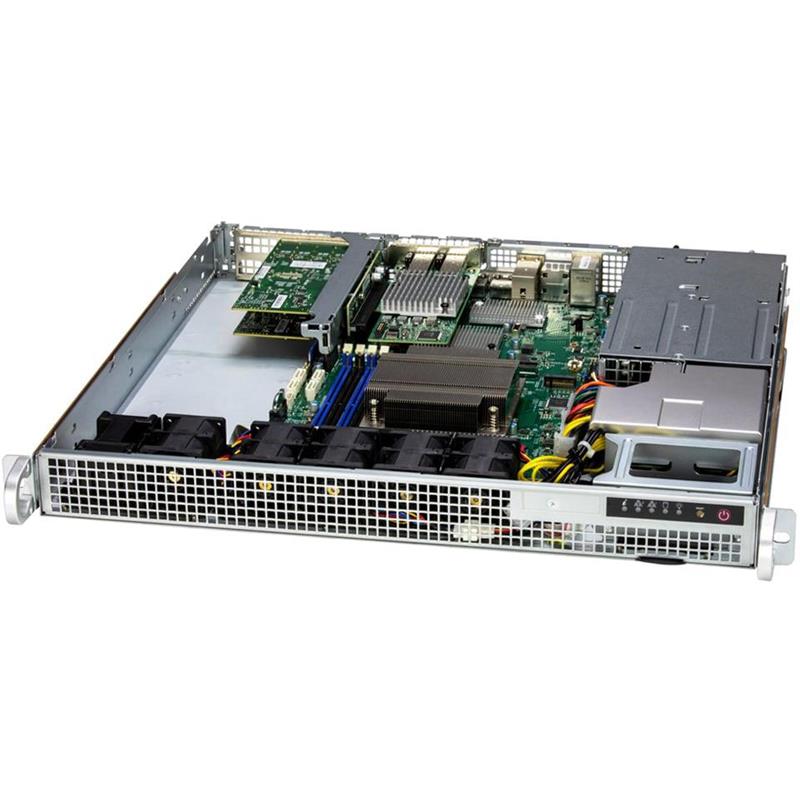

Supermicro SYS-111AD-WRN2 IoT 1U Barebone Single Intel Core i9/i7/i5/i3 Processors 14th/13th/12th Generation
• Virtualization
• Firewall Applications
• Edge/Cloud Computing Services
• CDN/vCDN/Cloud CDN
• vRAN/o-RAN
Barebone 1U Rackmount UP Short-depth Edge Server, Support Single LGA-1700, Supporting Intel Core i9/i7/i5/i3 Processors 14th/13th/12th Generation (Up to 24-Core). Up to 128GB in 4 DIMM slots, UDIMM, Chipset: Intel R680E, On-Board: Intel R680E Controller With RAID. Drive Bays Configuration: 2x Internal Fixed 2.5in NVMe/SAS/SATA Drive Bays. 2 M.2 NVMe slots (M-key 2280/22110), 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280), 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110). Network Connectivity: 1x RJ45 1GbE Dedicated IPMI LAN Port, 2x RJ45 2.5GbE LAN Ports, 800W Power Supply - (CSE-514-R00RWNP + X13SAW-F) - SYS-111AD-WRN2 (No Paint)
1. Intel® 14th/13th/12th Gen Core i9/i7/i5/i3 (ADL/RPL-S) Processor in LGA1700 Socket with R680E Chipset
2. 4 DIMM slots, DDR5-4400MHz memory, support up to 128GB
3. 1x dedicated IPMI LAN, 2x 2.5GbE BaseT LAN ports via Intel® I226 Controller
4. 800W 100-240Vac Platinum Single Power Supply (can be upgraded to redundant power supply)
Extra Specifications for Supermicro SYS-111AD-WRN2 IoT 1U Barebone Single Intel Core i9/i7/i5/i3 Processors 14th/13th/12th Generation
| Product SKUs | ||
| Product SKUs | SYS-111AD-WRN2 | |
| Motherboard | ||
| Motherboard | Super X13SAW-F | |
| Processor | ||
| CPU | Single LGA-1700 | |
| 12th/13th Gen Core i9/i7/i5/i3 Processor | ||
| Note | Supports up to 80W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | Slot Count: 4 DIMM slots | |
| Max Memory (2DPC): Up to 128GB ECC DDR5 UDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | Intel® R680E | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 2.5GbE with Intel® I226 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 2.5 GbE LAN port(s) (Intel® I226) | ||
| USB | 2 port(s) | |
| Video | 1 VGA port(s) | |
| 2 DisplayPort 1.4a port(s) | ||
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash | |
| BIOS Features | ACPI 6.5 SMBIOS 3.6 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | 800W 100-240Vac Platinum Single Power Supply (can be upgraded to redundant power supply) | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| Temperature | Platform Environment Control Interface (PECI) 3.0 support | |
| SuperDoctor® 5 | ||
| System resource alert via SuperDoctor®5 | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-514-R00RWNP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 16.9" (429 mm) | |
| Package | 8" (H) x 27" (W) x 24" (D) | |
| Weight | Gross Weight: 25.2 lbs (11.43 kg) | |
| Available Color | No Paint | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: Total 2 bay(s) 2 internal fixed 2.5" NVMe/SAS/SATA drive bay(s) | |
| 2 internal fixed 2.5" NVMe/SAS/SATA drive bay(s) | ||
| View Drive Options | ||
| M.2 | 2 M.2 NVMe slot(s) (M-key 2280/22110) | |
| 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280) | ||
| 1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 5 Heavy duty counter-rotating 4cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 54.5 x 40 x 220 mm | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SAW-F | 1 | Super X13SAW-F Motherboard | |
| Motherboard / Chassis | CSE-514-R00RWNP | 1 | 1U Chassis | |
| Cable | CBL-0082L | 1 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
| Cable | CBL-0227L | 2 | 7pin SATA (STR to RA), 48cm, PBF | |
| Cable | CBL-0296L | 2 | 9" 4 PIN FAN PWS EXTENSION CORD, PBF | |
| Cable | CBL-0156L | 1 | ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE | |
| Cable | CBL-PWCD-0260-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Fan | FAN-0163L4 | 5 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | |
| Power Supply | MCP-250-00018-0N | 1 | PWS dummy cover for 1U redundant power suppy w/ handle (54.5mm wide) | |
| Power Supply | PWS-804P-1R | 1 | 1U 800W 100-240VAC/50-60Hz, and DC240V input | |
| Air Shroud | MCP-310-51403-0B | 1 | Mylar Air Shroud for 1U CSE-514_RW with X13SAW | |
| Riser Card | RSC-W-68G5 | 1 | 1U LHS WIO Riser card with one PCIe 5.0 X16 and one PCIe | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0086P | 1 | 1U Passive HS for Intel Raptor Lake (Catlow) SocketV LGA1700 | |
| *Power Distributor | PDB-PT514-2824 | 1 | 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH | |
| *Drive Tray(s) | MCP-220-51401-0N | 1 | Dual 2.5 HDD bracket (bracket base not follow std 2.5 | |
| *Rear Window | MCP-240-51404-0N | 1 | I/O window for Non-standard WIO SC514 redundant PWS chassis+X13SAW only | |
| *Rear Window | MCP-240-80104-1N | 1 | D-rear window, riser card bracekt + PCIE L-bracket part | |
| *Rear Window | MCP-240-80105-1N | 1 | D-rear window, retention part | |
| *Front Panel | MCP-280-51201-0N | 1 | Front control board (FP512) for SC512 (surface-mounted LED) | |
| *Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 | |
| *Rail Set | MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type | |
| *Fan Holder | MCP-320-00027-0B | 24 | Plastic pin for 40x28, 40x56 fan | |
| *Fan Holder | MCP-320-81801-0B | 3 | SC818G 2x 4056 fan tray,HF,RoHS,PBF | |
| *Fan Holder | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
