Product SKUs |

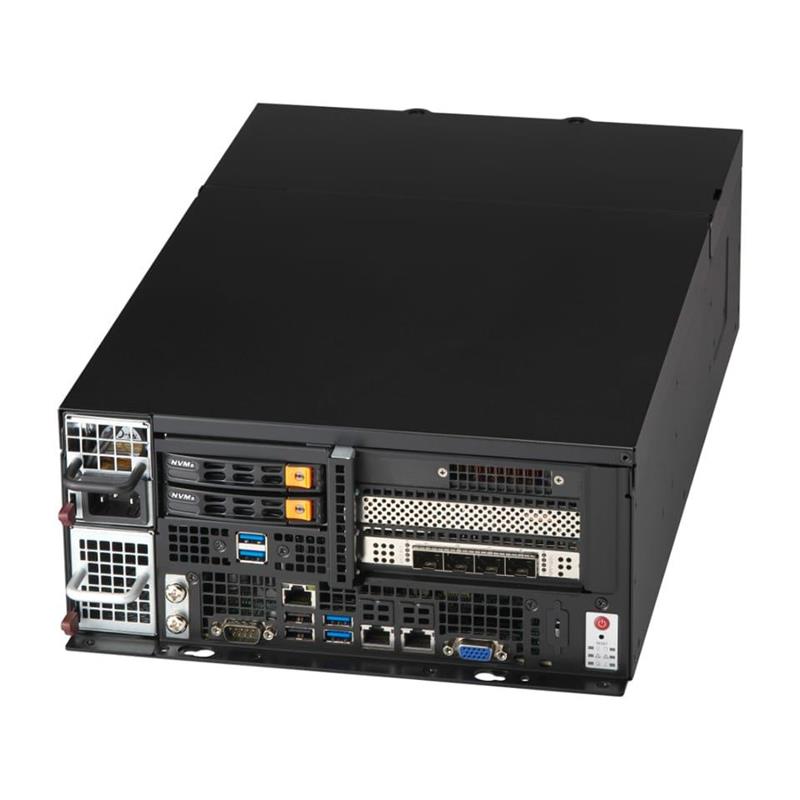

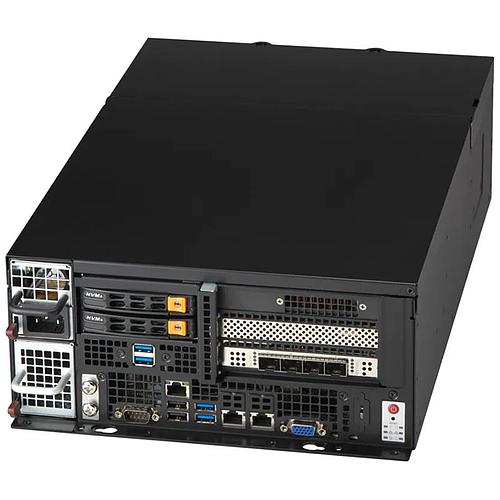

Product SKUs | SYS-E403-13E-FRN2T |
Motherboard |
Motherboard | Super X13SEW-TF |
Processor |
CPU | Single Socket E (LGA-4677) |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
Core Count | Up to 32C/64T; Up to 60MB Cache |
Note | Supports 85W - 350W TDP CPUs (Air Cooled)* |
| *Air Cooled CPUs with TDP over 300W only supported under specific conditions. Contact a Supermicro representative for details. |
System Memory |
Memory | View Memory Options |
| Slot Count: 8 DIMM slots |
| Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
Memory Voltage | 1.1V |
On-Board Devices |
NVMe | NVMe; RAID 0/1 support(Intel® VROC RAID key required) |
Chipset | Intel® C741 |
Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) |
| 2 RJ45 10GBASE-T with Intel® X550-AT2 |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Input / Output |
LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2) |
USB | 2 USB 2.0 Type-A port(s) (rear) |
| 4 USB 3.2 Gen1 Type-A port(s) (Rear) |
Video | 1 VGA port(s) (Rear) |
Management |
Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Power Manager (SPM) |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
Security |
Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
Chassis |
Form Factor | Fan-based Embedded |
Model | CSE-E403BiF-000NDBP2 |
Dimensions and Weight |
Height | 4.62" (117.348 mm) |
Width | 10.5" (266.7 mm) |
Depth | 16" (406.4 mm) |
Package | 10.4" (H) x 16.4" (W) x 26" (D) |
Weight | Gross Weight: 24.5 lbs (10.95 kg) |
| Net Weight: 18.5 lbs (8.16 kg) |
Available Color | Black |
Front Panel |
LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD activity |
| System information |
| reset status |
Buttons | Power On/Off |
Drive Bays / Storage |
Drive Bays Configuration | View Drive Options |
| (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Default: Total 2 bay(s) 2 front hot-swap 2.5" NVMe drive bay(s) |
| 2 front hot-swap 2.5" NVMe drive bay(s) |
| Option A: Total 2 bay(s) 2 internal fixed 2.5" SATA* drive bay(s) |
| 2 internal fixed 2.5" SATA* drive bay(s) |
M.2 | View M.2 Options |
| 1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110) |
System Cooling |
Fans | 3x 8cm heavy duty fans with optimal fan speed control 80x80x38mm Fan(s) |
Power Supply |
Dimension (WxHxL) | 54.5 x 40.25 x 220 mm |
+12V | Max: 62.5A / Min: 0.5A (100Vac-127Vac) |
| Max: 66.6A / Min: 0.5A (200Vac-240Vac) |
| Max: 66.6A / Min: 0.5A (230Vdc-240Vdc) |
5V SB | Max: 4A / Min: 0A |
AC Input | 750W: 100-127Vac / 50-60Hz |
| 800W: 200-240Vac / 50-60Hz |
| 800W: 230-240Vdc / 50-60Hz |
Output Type | Backplanes (gold finger) |
Operating Environment |
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) |
