| Product SKUs |

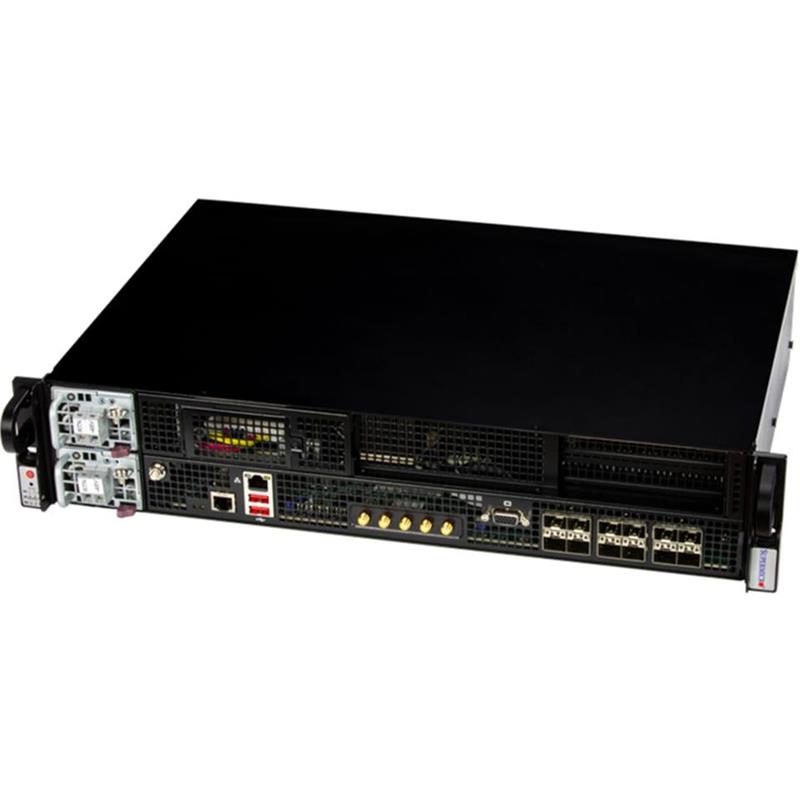

| Product SKUs | SYS-211E-FRDN13P |
| Motherboard |
| Motherboard | Super X13SEVR-SP13F |
| Processor |
| CPU | Single Socket E (LGA-4677) |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 32C/64T; Up to 82.5MB Cache |
| Note | Supports up to 225W TDP CPUs (Air Cooled)* |
| *Air Cooled CPUs with TDP over 225W only supported under specific conditions. Contact a Supermicro representative for details. |
| GPU |
| Max GPU Count | Up to 1 double-width GPU(s) |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 8 DIMM slots |
| Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) ; RAID 0/1 support(Intel® VROC RAID key required) |
| Chipset | Intel® C741 |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Intel® I210-AT |
| 12 QSFP28 25GbE with Intel® E810-CAM1 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 1 GbE LAN port(s) (IPMI shared on LAN port 1) |
| 12 SFP28 25 GbE LAN port(s) (IPMI shared on LAN port 10) |
| USB | 2 USB 3.0 port(s) (front) |
| Video | 1 VGA port(s) |
| Others | 5 SMA (1 GNSS/4 1PPS) port(s) |
| 1 Dry contact (4 sets) port(s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Power Manager (SPM) |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-221M-R000NDP |
| Dimensions and Weight |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (436.88 mm) |
| Depth | 11.8" (298.8 mm) |
| Package | 7.4" (H) x 19.3" (W) x 23.3" (D) |
| Weight | Net Weight: 17 lbs (7.7 kg) |
| Gross Weight: 22 lbs (10 kg) |
| Available Color | Silver/Black |
| Front Panel |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD activity |
| System information |
| Buttons | UID button |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 2 bay(s) 2 internal fixed 2.5" SATA drive bay(s) |
| 2 internal fixed 2.5" SATA drive bay(s) |
| M.2 | View M.2 Options |
| 1 M.2 NVMe slot(s) (M-key 2280) |
| System Cooling |
| Fans | 4x 4-PIN PWM 8cm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 54.5 x 40 x 220 mm |
| 5V SB | Max: 3A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
