- Supermicro SYS-222BT-HNC9R BigTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon 6700 Series Processors With E-cores

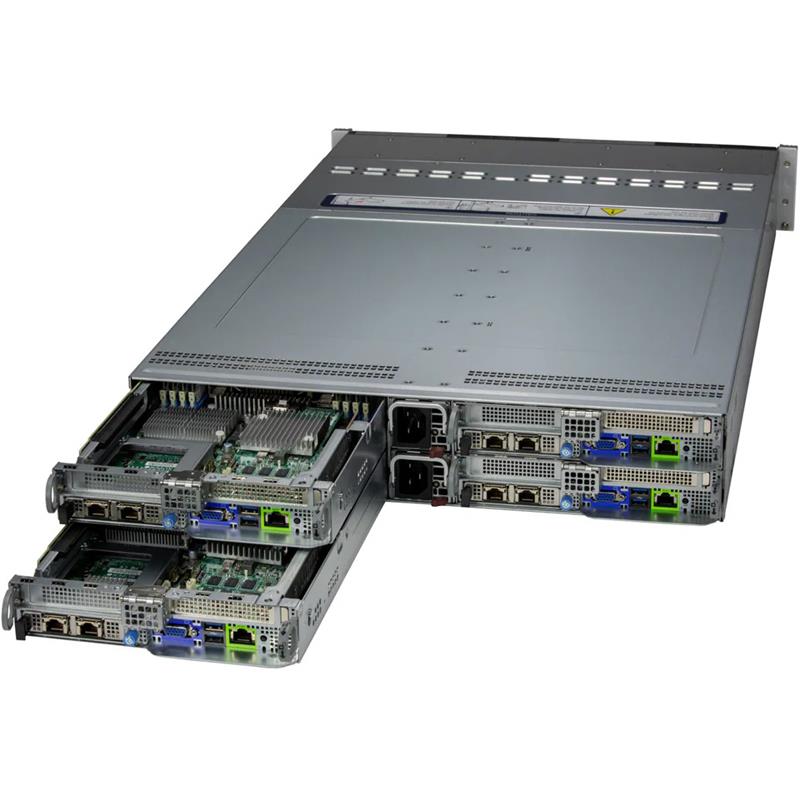

Supermicro SYS-222BT-HNC9R BigTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon 6700 Series Processors With E-cores
• Mission Critical HPC
• Virtualized Big Data Analytics
• High-Density Storage RAID Array
Barebone 2U Rackmount SuperServer, Four Nodes, Each Node Supports: Dual Socket E2 (LGA-4710), Supporting Intel Xeon 6700 Series Processors With E-cores, Up to 144C/144T, Up to 108MB Cache per CPU. Up to 2TB in 16 DIMM slots, RDIMM, Chipset: System on Chip, On-Board: SAS (12Gbps) via Broadcom 3908, RAID 0/1/5/10 support(IR mode), Drive Bays: 2 Front Hot-swap 2.5in PCIe 5.0 NVMe/SAS Drive Bays, 4 Front Hot-swap 2.5in PCIe 4.0 NVMe/SAS Drive Bays, 2x M.2 PCIe 5.0 x4 NVMe Slots (M-key 22110(default), VROC required for RAID), Network Connectivity: Via AIOM, 1 RJ45 1 GbE Dedicated BMC LAN Port, 3600W Power Supply - (CSE-217BQ2-R3K60P + X14DBT-B) - SYS-222BT-HNC9R
1. Dual Socket E2 Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 205W with air cooling or 350W with liquid cooling Single CPU configurations supported while maintaining all expansion slot functionality; see Option A for drive support limitations
2. Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
3. Flexible networking with OCP 3.0 AIOM slot
4. 1 PCIe 5.0 x16 LP slots Internal PCIe 5.0 for 2 NVMe M.2 support onboard Optional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
5. Up to 6 front hot-swap 2.5" NVMe/SAS drive bays Built-in SAS3 Support and RAID Options via Broadcom 3908; IR Mode
Extra Specifications for Supermicro SYS-222BT-HNC9R BigTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon 6700 Series Processors With E-cores
| System BIOS | ||
| BIOS Type | AMI 32MB Flash ROM | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Power configurations | ACPI/APM Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 8+4 Phase-switching voltage regulator | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Network activity LEDs | ||
| Universal Information (UID) LED | ||
| Product SKUs | ||
| Product SKUs | SYS-222BT-HNC9R | |
| Motherboard | ||
| Motherboard | Super X14DBT-B | |
| Processor (per Node) | ||
| CPU | Dual Socket E2 (LGA-4710) | |
| Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores | ||
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache per CPU | |
| E-cores: Up to 144C/144T; Up to 108MB Cache per CPU | ||
| Note | Supports up to 300W TDP CPUs (Air Cooled)* | |
| Supports up to 350W TDP CPUs (Liquid Cooled) | ||
| *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details. | ||
| System Memory (per Node) | ||
| Memory | View Memory Options | |
| Slot Count: 16 DIMM slots | ||
| Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices (per Node) | ||
| SAS | SAS (12Gbps) via Broadcom® 3908; RAID 0/1/5/10 support(IR mode) | |
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| Via AIOM | ||
| View AIOM Options | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB | 2 USB 3.0 Gen2 Type-A ports(Rear) | |
| Video | 1 VGA port | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217BQ2-R3K60P | |
| Dimensions and Weight | ||
| Height | 3.47" (88 mm) | |
| Width | 17.68" (449 mm) | |
| Depth | 28.75" (730 mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Gross Weight: 96.6 lbs (43.8 kg) | |
| Net Weight: 66.1 lbs (30 kg) | ||
| Available Color | Black front & silver body | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage (per Node) | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 6 bays 2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bays 4 front hot-swap 2.5" PCIe 4.0 NVMe/SAS drive bays | ||
| 2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bays | ||
| 4 front hot-swap 2.5" PCIe 4.0 NVMe/SAS drive bays | ||
| Option A: Total 6 bays 2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bays 4 front hot-swap 2.5" SAS drive bays | ||
| 4 front hot-swap 2.5" SAS drive bays | ||
| View NVMe Options | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID) | ||
| System Cooling | ||
| Fans | 4x 16K RPM Counter Rotating 80x80x56mm Fan(s) | |
| Air Shroud | 4 Air Shrouds | |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2.5" Tool-less NVMe Tray | MCP-220-00167-0B | $ 28.50 | 0 | Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed) | ||
| 2.5" Tool-less SAS/SATA Tray | MCP-220-00147-0B | $ 28.50 | 0 | Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed) | ||
| Cold Plate Module | SNK-P3050-ABT | 1 | 2x Supermicro Cold Plates for Attachment to CPUs (Qty per Node) | |||
| Cold Plate Module | SNK-P3042 | 1 | 2x CoolIT Cold Plates for Attachment to CPUs (Qty per Node) | |||
| Coolant Distribution Manifolds | SRK-00AS-CLIT-MF84SV-02 | 1 | CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack) | |||
| Coolant Distribution Manifolds | SRK-00AS-CLIT-MF42SV-02 | 1 | CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack) | |||
| Coolant Distribution Manifolds | LCS-SCDM-076V42001-ABT | 1 | Supermicro Coolant Manifolds (Qty per Rack) | |||
| Coolant Distribution Unit | SRK-00AS-CLIT-CH80V2-01 | 1 | CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack) | |||
| Coolant Distribution Unit | LCS-SCDU-080L4001-ABT | 1 | Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack) | |||
| HDD Dummy Tray | MCP-220-00185-0N | $ 26.50 | 0 | 2.5" HDD tray dummy cover for 2 slot (Qty as Needed) | ||
| M.2 NVMe RAID Controller | SCC-A2NM2241GH-B1 | 1 | 2x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node) | |||
| M.2 NVMe RAID Controller | SCC-A2NM2241G3-B1E | 1 | 2x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x110mm M.2 (Qty per Node) | |||
| SPI Capable TPM Options | AOM-TPM-9670H-FIPS | $ 63.50 | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node) | ||
| SPI Capable TPM Options | AOM-TPM-9670H-S | $ 56.50 | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node) | ||
| SuperCloud Composer License | SFT-SDDC-SINGLE | $ 303.50 | 0 | SDDC Monitor License - Single License per Monitored host | ||
| System Management Suite | SFT-DCMS-Single | 0 | Supermicro System Management Software Suite node | |||
| VROC Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node) | ||
| VROC Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 (Qty per Node) |
