  2. Supermicro SYS-222BT-HNR BigTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon 6700 Series Processors With E-cores

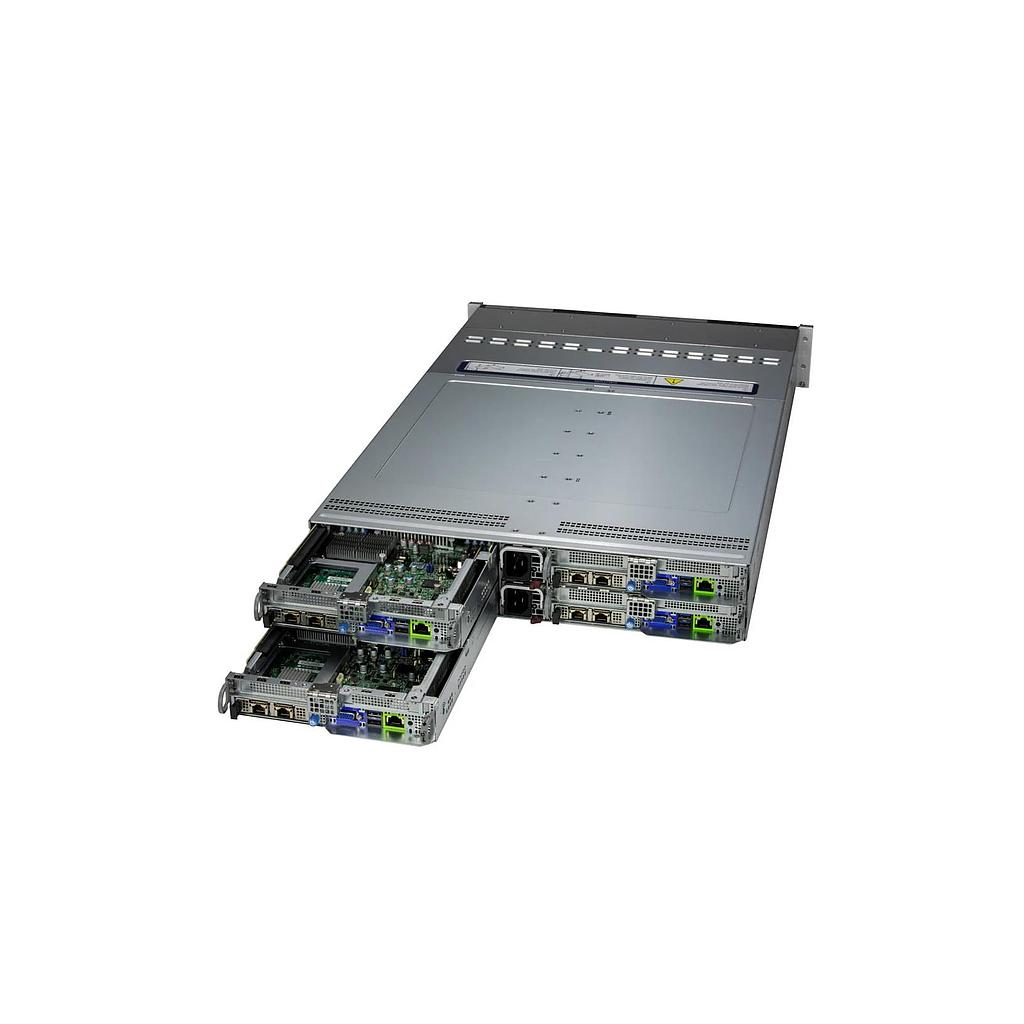

Supermicro SYS-222BT-HNR BigTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon 6700 Series Processors With E-cores
[NR]MBD-X14DBT-B, CSE-217BQ2-R3K60P, SCC-P6NG5-B1
[NR]MBD-X14DBT-B, CSE-217BQ2-R3K60P, SCC-P6NG5-B1
[NR]MBD-X14DBT-B, CSE-217BQ2-R3K60P, SCC-P6NG5-B1
[NR]MBD-X14DBT-B, CSE-217BQ2-R3K60P, SCC-P6NG5-B1

Supermicro SYS-222BT-HNR BigTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon 6700 Series Processors With E-cores

• All-Flash NVMe Hyperconverged Infrastructure
• Container-as-a-Service; Application Accelerator
• High-Performance File System
• Diskless HPC Clusters

Barebone 2U Rackmount SuperServer, Four Nodes, Each Node Supports: Dual Socket E2 (LGA-4710), Supporting Intel Xeon 6700 Series Processors With E-cores, Up to 144C/144T, Up to 108MB Cache per CPU. Up to 2TB in 16 DIMM slots, RDIMM, Chipset: System on Chip, Drive Bays: 6 Front Hot-swap 2.5in PCIe 5.0 NVMe Drive Bays, 2 M.2 PCIe 5.0 x4 NVMe Slots (M-key 22110(default), VROC required for RAID), Network Connectivity: Via AIOM, 1 RJ45 1 GbE Dedicated BMC LAN Port, 3600W Power Supply - (CSE-217BQ2-R3K60P + X14DBT-B) - SYS-222BT-HNR

$ 9,218.00$ 9,218.009218.0USD

$ 9,218.00

Option not available

PreOrder
140 lb

    This combination does not exist.

    Add to Cart

    1. Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 205W with air cooling or 350W with liquid cooling
    2. Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
    3. Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
    4. Up to 2 PCIe 5.0 x16 LP + 1 PCIe 5.0 x16 AIOM slots
    5. Up to 6 front hot-swap 2.5" NVMe drive bays
    6. 2 Redundant 3600W Titanium Level power supplies
    7. 2U Rackmount chassis with 28.75" (730mm) depth

    Extra Specifications for Supermicro SYS-222BT-HNR BigTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon 6700 Series Processors With E-cores

    System BIOS
    BIOS TypeAMI 32MB Flash ROM
    Management
    SoftwareSupermicro Thin-Agent Service (TAS)
    Supermicro Server Manager (SSM)
    SuperCloud Composer®
    Super Diagnostics Offline (SDO)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    8+4 Phase-switching voltage regulator
    Front Panel
    ButtonsPower On/Off button
    UID button
    LEDPower status LED
    HDD activity LED
    Network activity LEDs
    Universal Information (UID) LED
    System Cooling
    Liquid CoolingDirect to Chip (D2C) Cold Plate
    Fans4x 16K RPM Counter Rotating 80x80x56mm Fan(s)
    Air Shroud4 Air Shrouds
    Product SKUs
    Product SKUsSYS-222BT-HNR
    Motherboard
    MotherboardSuper X14DBT-B
    Processor (per Node)
    CPUDual Socket E2 (LGA-4710)
    Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
    Core CountP-cores: Up to 86C/172T; Up to 336MB Cache per CPU
    E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
    NoteSupports up to 300W TDP CPUs (Air Cooled)*
    Supports up to 350W TDP CPUs (Liquid Cooled)​
    *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    System Memory (per Node)
    MemoryView Memory Options
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
    Memory Voltage1.1V
    On-Board Devices (per Node)
    ChipsetSystem on Chip
    Network ConnectivityView AOC Options
    Via AIOM
    View AIOM Options
    Input / Output (per Node)
    LAN1 RJ45 1 GbE Dedicated BMC LAN port
    USB2 USB 3.0 Gen2 Type-A ports(Rear)
    Video1 VGA port
    Chassis
    Form Factor2U Rackmount
    ModelCSE-217BQ2-R3K60P
    Dimensions and Weight
    Height3.47" (88 mm)
    Width17.68" (449 mm)
    Depth28.75" (730 mm)
    Package9.76" (H) x 24.65" (W) x 45.28" (D)
    WeightGross Weight: 96.6 lbs (43.8 kg)
    Net Weight: 66.1 lbs (30 kg)
    Available ColorBlack front & silver body
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage (per Node)
    Drive Bays ConfigurationView NVMe Options
    Default: Total 6 bays 6 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
    6 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
    Option A: Total 2 bays 2 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
    2 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
    M.2View M.2 Options
    2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)
    Operating Temperature: 10°C to 35°C (50°F to 95°F)
    NamePart NumberPriceAdd to CartQty.Description
    Cold Plate ModuleSNK-P3050-ABT12x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
    Cold Plate ModuleSNK-P304212x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
    Coolant Distribution ManifoldsLCS-SCDM-076V42001-ABT1Supermicro Coolant Manifolds (Qty per Rack)
    Coolant Distribution ManifoldsSRK-00AS-CLIT-MF42SV-021CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
    Coolant Distribution ManifoldsSRK-00AS-CLIT-MF84SV-021CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
    Coolant Distribution UnitLCS-SCDU-080L4001-ABT1Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
    Coolant Distribution UnitSRK-00AS-CLIT-CH80V2-011CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
    M.2 NVMe RAID ControllerSCC-A2NM2241G3-B1E12x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x110mm M.2 (Qty per Node)
    M.2 NVMe RAID ControllerSCC-A2NM2241GH-B112x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node)
    SPI Capable TPM OptionsAOM-TPM-9670H-S$ 56.501SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    SPI Capable TPM OptionsAOM-TPM-9670H-FIPS$ 63.501SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    SuperCloud Composer LicenseSFT-SDDC-SINGLE$ 303.500SDDC Monitor License - Single License per Monitored host
    System Management SuiteSFT-DCMS-Single0Supermicro System Management Software Suite node
    VROC OptionsAOC-VROCSTNMOD$ 176.001Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
    VROC OptionsAOC-VROCPREMOD$ 344.501Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
