| Product SKUs |
| Product SKUs | SYS-F511E2-RT |
| Motherboard |

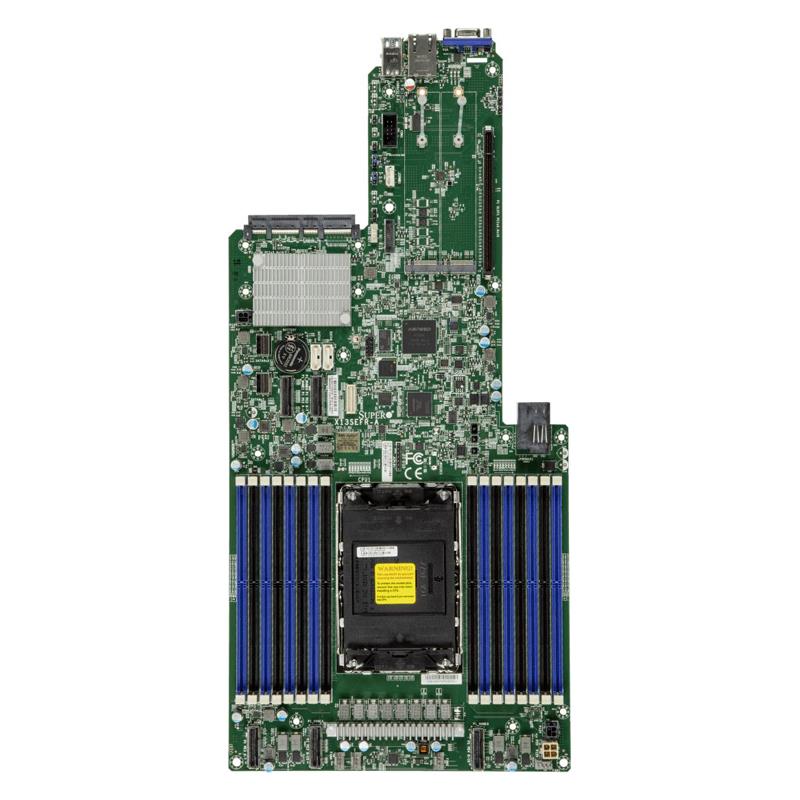

| Motherboard | Super X13SEFR-A |
| Processor (per Node) |
| CPU | Single Socket E (LGA-4677) |
| 4th Gen Intel® Xeon® Scalable processors |
| Cores | Up to 60/120; Up to 112.5MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| CPUs with high TDP (Air Cooled) only supported under specific conditions. Contact Technical Support for details |
| System Memory (per Node) |

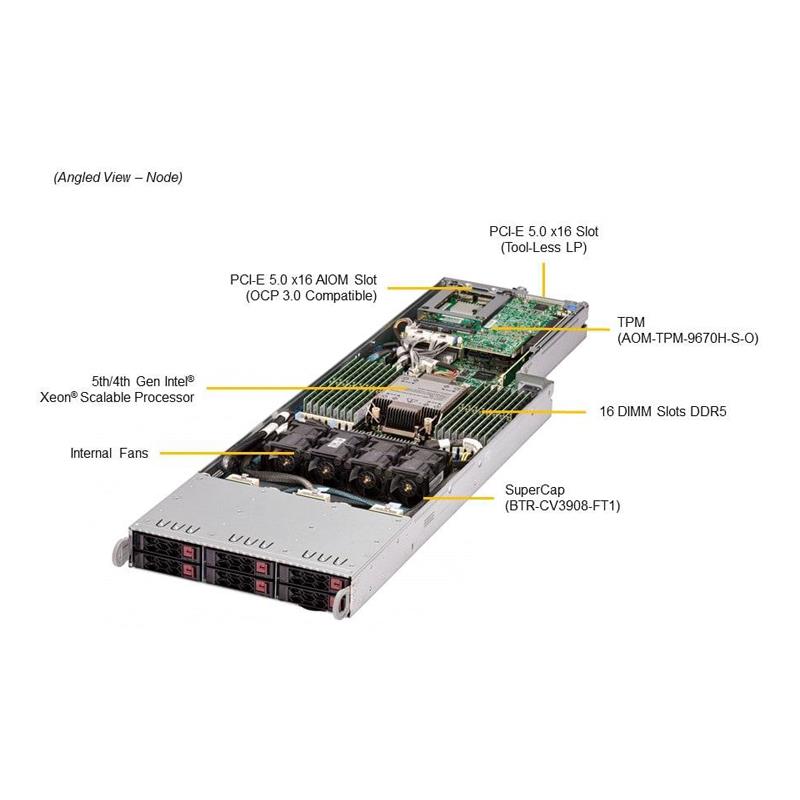

| Memory | Memory Capacity: 16 DIMM slots |
| Up to 4TB: 16x 256 GB DRAM |
| Memory Type: 4800MHz DDR5 |
| Memory Voltage | 1.1 V |
| Error Detection | Yes |
| On-Board Devices (per Node) |
| Chipset | Intel® C741 |
| Network Connectivity | 1x 1GbE RJ45 (BMC) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| SATA | 10 SATA (6Gbps) port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management |
| Software | Watch Dog |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| 8+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| 4 40 mm Heavy Duty Fans per Node |
| Temperature | Monitoring for CPU and chassis environment |
| Chassis |

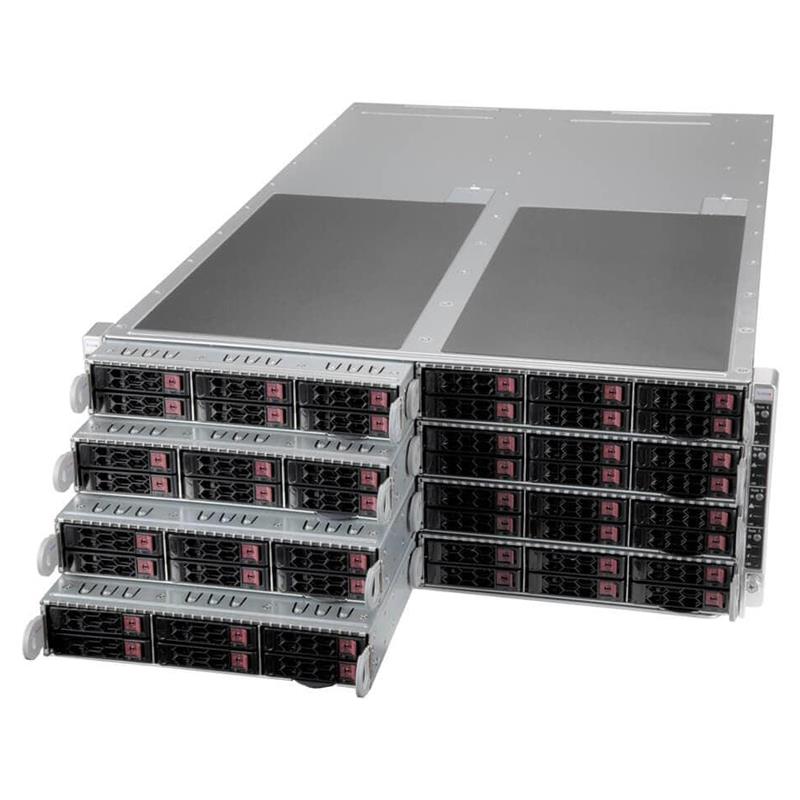

| Form Factor | 4U |
| Model | CSE-F418BC4-R2K08BP |
| Dimensions and Weight |
| Height | 6.96" (177mm) |
| Width | 17.63" (448mm) |
| Depth | 29" (737mm) |
| Package | 15" (H) x 28.3" (W) x 42.4" (D) |
| Weight | Net Weight: 150 lbs (68.04 kg) |
| Gross Weight: 200 lbs (90.71 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Network activity LEDs |
| Power status LED |
| HDD activity LED |
| Universal Information (UID) LED |
| Expansion Slots (per Node) |

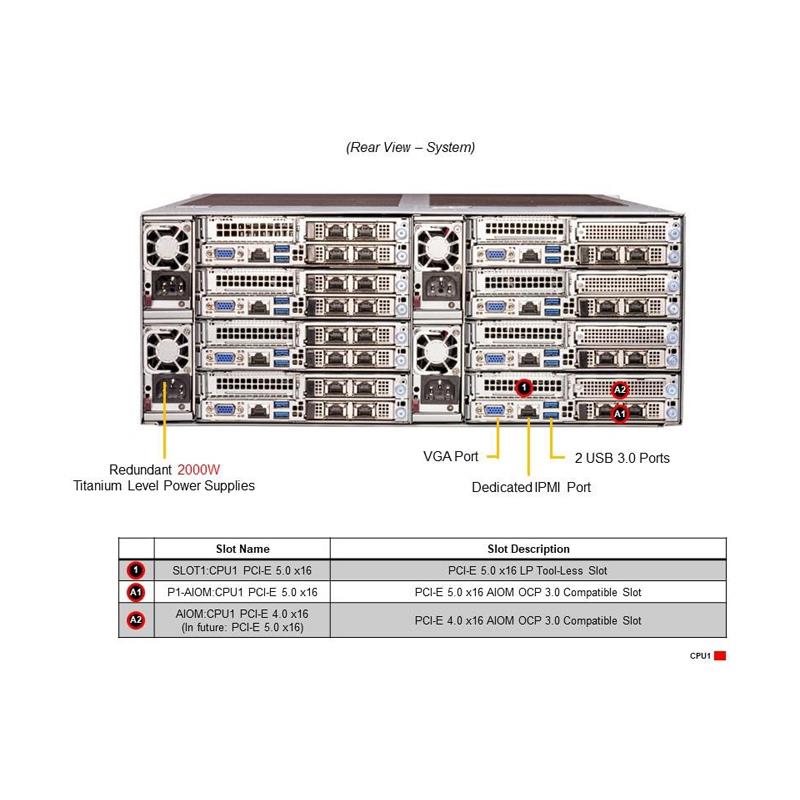

| PCI-Express (PCIe) | 1 PCIe 5.0 x16 LP slot(s) |
| 2 AIOM slot(s) |
| Drive Bays / Storage (per Node) |

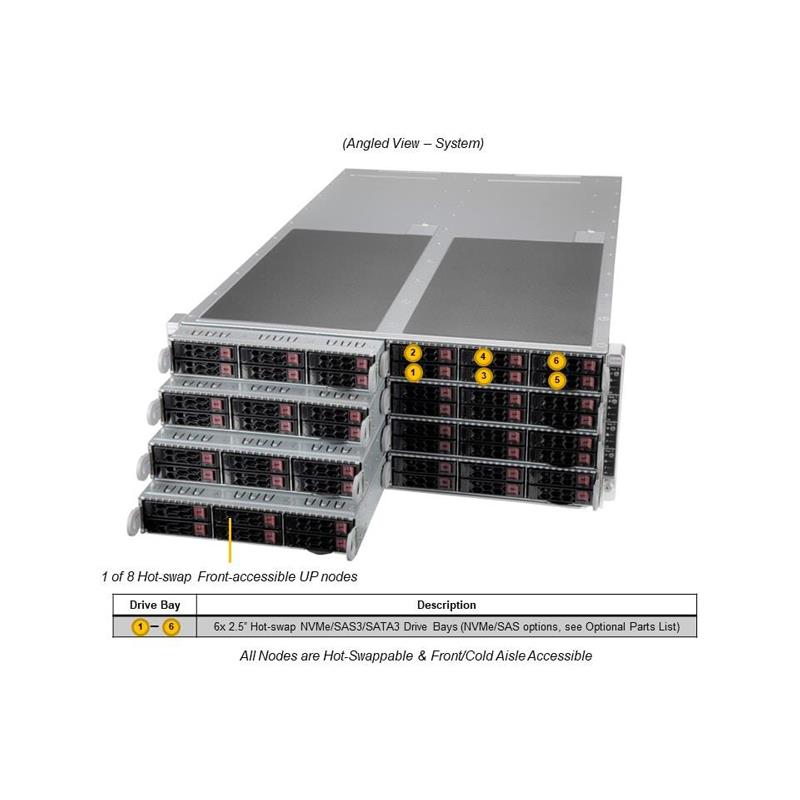

| Hot-swap | 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid) |
| 6x 2.5" 7mm drive bays |
| M.2 | 2x Hybrid M2 (PCIe 3.0 x2 & SATA) |
| System Cooling |
| Fans | 3x 4cm Fan(s) |
| 4x 4cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 2000W: 230-240Vac / 50-60Hz |
| 2000W: 220-240Vac / 50-60Hz |
| 2000W: 230-240Vdc |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 5% to 95% (8) |
| Non-operating Relative Humidity: 90% to 5% (95) |
