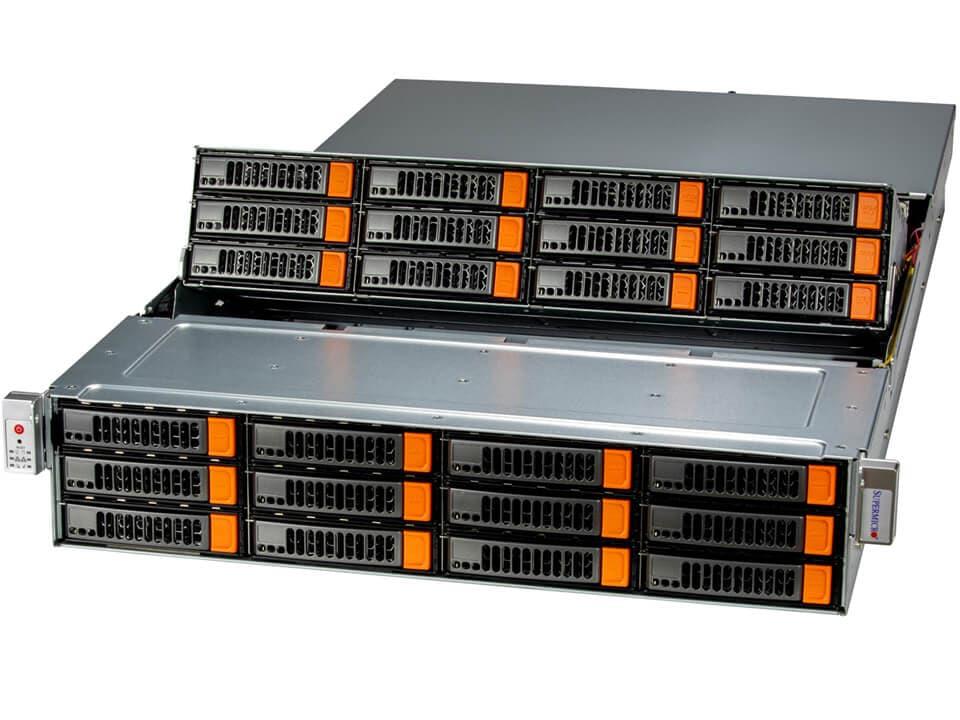

Supermicro SSG-521E-E1CR24H Storage 2U Barebone Single Intel Xeon Scalable 4th and 5th Generation Processors

Supermicro SSG-521E-E1CR24H Storage 2U Barebone Single Intel Xeon Scalable 4th and 5th Generation Processors

• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks

Barebone 2U Front/Top-Loading Storage Server Supports Single Socket E (LGA-4677) For Intel Xeon Scalable 4th and 5th Generation Processors, Up to 36C/72T, Up to 180MB Cache, Supports 120W - 300W TDP CPUs (Air Cooled). Up to 4TB 5600MT/s ECC DDR5 RDIMM In 16 DIMM Slots. Chipset: Intel C741. On-Board: SAS, NVMe. Drive Bays / Storage: 12 Front Hot-Swap 3.5in SAS/SATA Drive Bays, 12 Top-Loading Hot-Swap 3.5" SAS/SATA Drive Bays, 2 Rear Hot-Swap 2.5" SATA Drive Bays, 2 M.2 NVMe/SATA Slots (M-key 2280/22110). Network Connectivity: 1 RJ45 1GbE Dedicated BMC LAN Port, Others: 2 USB Ports, 1 VGA Port, 2 SuperDOM (Disk on Module) Ports. 2x 1600W Power Supply - (CSE-826S3TS-R1K62P1 + X13SEDW-F) - SSG-521E-E1CR24H

1. Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processor. Up to 300W TDP.
2. 16 ECC DDR5-5600: LRDIMM/RDIMM
3. Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant) Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller by default)
4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
5. 24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280)
6. 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
7. 1600W Redundant Power Supplies Titanium Level (96%)
8. HW RAID support via Broadcom® 3908

Extra Specifications for Supermicro SSG-521E-E1CR24H Storage 2U Barebone Single Intel Xeon Scalable 4th and 5th Generation Processors

Processor
Note	Supports 120W - 300W TDP CPUs (Air Cooled)
CPU	Single Socket E (LGA-4677)
	5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 180MB Cache
System Memory
Memory Voltage	1.1V
Memory	View Memory Options
	Slot Count: 16 DIMM slots
	Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
On-Board Devices
Chipset	Intel® C741
Network Connectivity	Via AIOM
	View AOC Options
	View AIOM Options
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe	View NVMe Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
DOM	2 Super DOM (Disk on Module) port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	KVM with dedicated LAN
	Redfish API
	SuperDoctor® 5
	IPMI 2.0
	Supermicro Power Manager (SPM)
	Supermicro Update Manager (SUM)
	Supermicro Server Manager (SSM)
	Super Diagnostics Offline
Power configurations	Power-on mode for AC power recovery
	ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware
	Secure Boot
	Secure Firmware Updates
	Automatic Firmware Recovery
	Supply Chain Security: Remote Attestation
	Runtime BMC Protections
	System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
	7 Phase-switching voltage regulator
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
Front Panel
Buttons	Power On/Off
LED	Power status
	Network activity
	System information (overheat/UID)
	SSD activity
Power Supply
Certification	Titanium Level
	[Test Report]
Dimension (WxHxL)	73.5 x 40 x 203 mm
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac)
	Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
AC Input	1000W: 100-127Vac / 50-60Hz
	1600W: 200-240Vac / 50-60Hz
Output Type	Backplanes (gold finger)
Product SKUs
Product SKUs	SSG-521E-E1CR24H
Motherboard
Motherboard	Super X13SEDW-F
Chassis
Form Factor	2U Rackmount
Model	CSE-826S3TS-R1K62P1
Dimensions and Weight
Height	3.5"
Width	17.2"
Depth	34"
Package	12" (H) x 29" (W) x 52" (D)
Weight	Gross Weight: 74.5 lbs (33.79 kg)
	Net Weight: 52 lbs (23.59 kg)
Available Color	Silver
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration	View Drive Options
	2 rear hot-swap 2.5" SATA drive bay(s)
	12 front hot-swap 3.5" SAS/SATA drive bay(s)
	Default: Total 26 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s)
	12 top-loading hot-swap 3.5" SAS/SATA drive bay(s)
	Option A: Total 28 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) 2 rear hot-swap 2.5" NVMe drive bay(s)
	2 rear hot-swap 2.5" NVMe drive bay(s)
	Option B: Total 30 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 4 rear hot-swap 2.5" NVMe drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s)
	4 rear hot-swap 2.5" NVMe drive bay(s)
M.2	View M.2 Options
	2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans	4 Heavy Duty 8cm Fan(s)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 90% (Non-Condensing)
	Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
