| Main Specifications |
| Device Type | SuperServer |

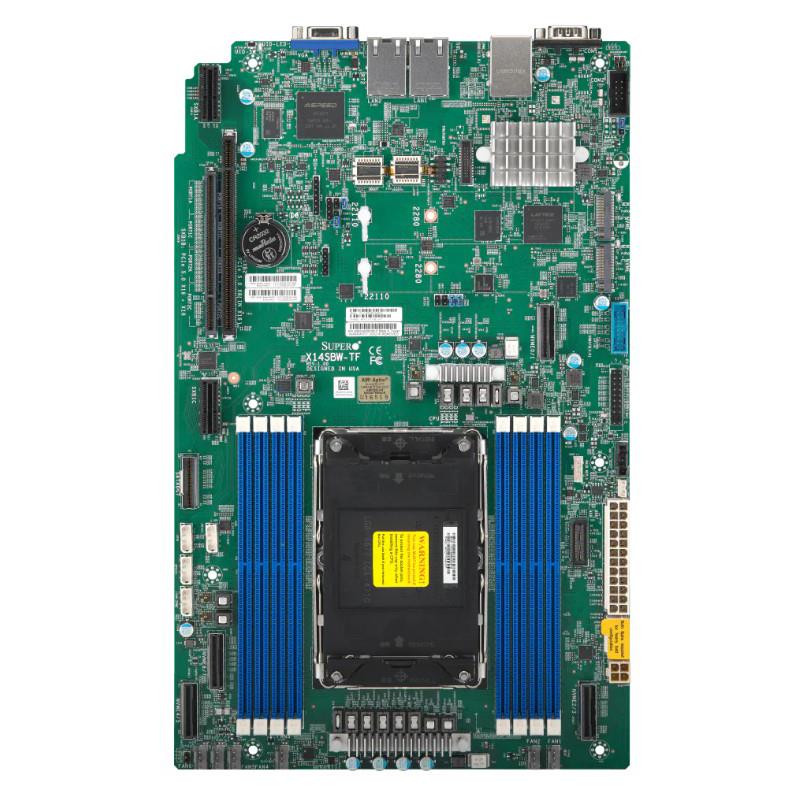

| Built-in Devices | X14SBW-TF |

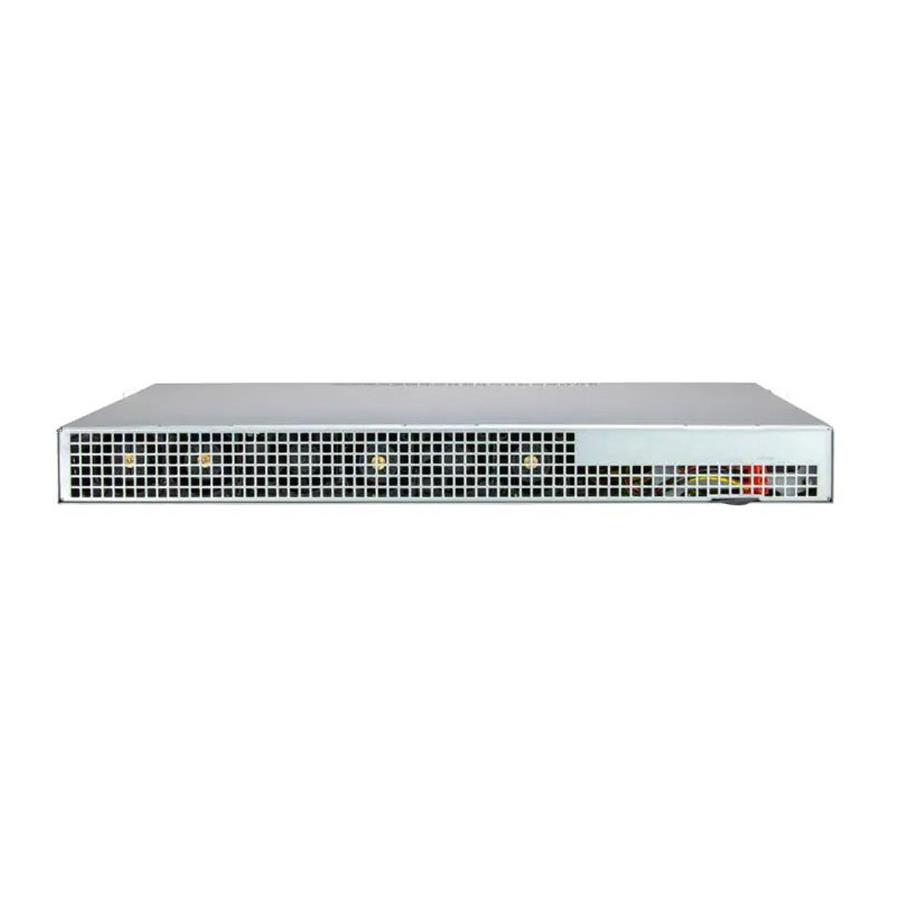

| Form Factor | 1U Rackmount - CSE-515B-R000WNP2 |
| Dimensions (WxDxH) | Height 1.7" (44.5 mm) x Width 17.2" (436.88 mm) x Depth 16.9" (429.3 mm) |
| Weight | Gross Weight: 15 lbs (6.8 kg) - Net Weight: 10 lbs (4.54 kg) |
| Enclosure Color | Silver |
| Processor |
| Compatible Processors | Intel Xeon 6 6700 series processors with E-cores |
| Compatible Socket | Single Socket E2 (LGA-4710) |
| Cache/Core | Up to 144C/160T, Up to 60MB Cache |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| GPU |
| Max GPU Count | Up to 1 single-width GPU(s) |
| Supported GPUs | NVIDIA PCIe: L4, A2 |
| System Memory |
| Memory Capacity | Slot Count: 8 DIMM slots/8 Channels - Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM |
| Supports Intel Optane persistent memory 200 series |
| On-Board Devices |
| SATA/SAS | SATA (6Gbps) |
| Chipset | System-on-Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel X550 |
| Input / Output |
| LAN | 2 RJ45 10 GbE LAN port(s) |
| USB(s) | 2 USB 3.2 Gen1 Type-A port(s) (rear), 2 USB 3.2 Gen1 port(s) (Header) |
| Video Output | 1 VGA port |
| Serial Ports | 1 COM Port(s) (1 rear) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown |
| PC Health Monitoring |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| Front Panel |
| LEDs | LAN1 activity, LAN2 activity, Power status |
| Buttons | Power On/Off button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16 FHFL slot(s), 1 PCIe 5.0 x16 LP slot(s) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280/22110) |
| Expansion Bays Total (Free) | 2 internal fixed 2.5" NVMe/SATA drive bays |
| System Cooling |
| Fans/Air Shroud | 6x 4cm heavy duty fans with optimal fan speed control |
| 1 Air Shroud(s) |
| Power Supply |
| Power Supply | 2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) |
