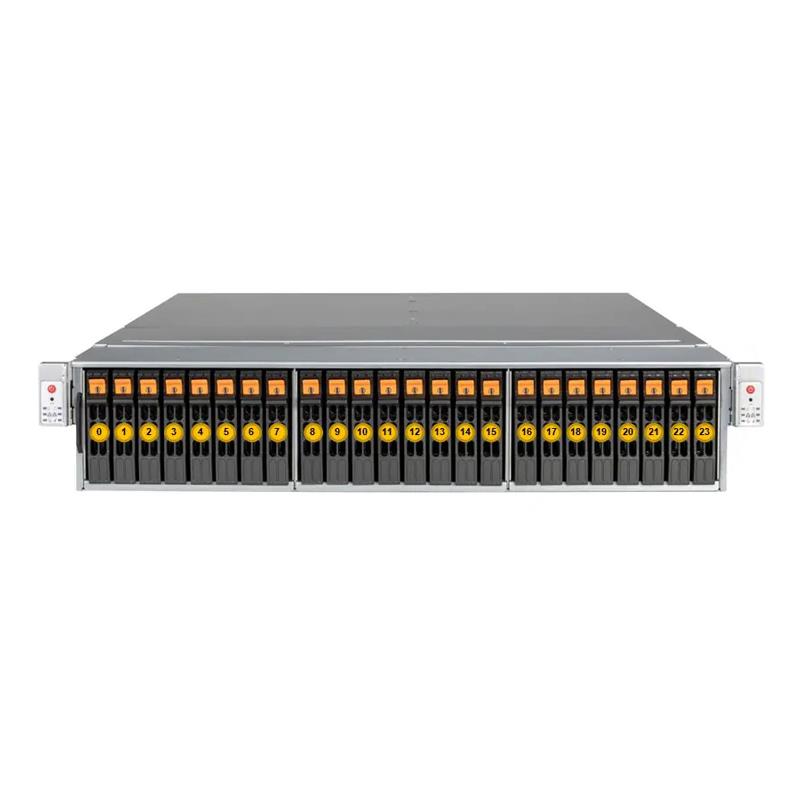

Supermicro SSG-221E-DN2R24R All-Flash NVMe 2U Barebone Two Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th and 4th Generation
• Artificial Intelligence (AI)
• High Availability Storage
• NVMe Over Fabrics Solution

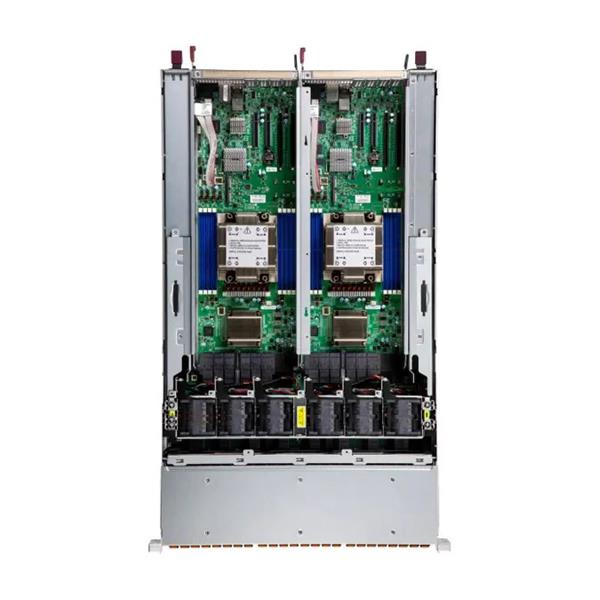

Barebone 2U Rackmount SuperServer, Two Nodes, Each Node Supports: Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Supports 150W - 350W TDP CPUs (Air Cooled). Up to 2TB in 8 DIMM slots, RDIMM/LRDIMM, Chipset: System on Chip, Drive Bays: 24 Front Hot-swap 2.5in PCIe 5.0 NVMe Drive Bays, 2 M.2 NVMe Slots (M-key 2280/22110), Network Connectivity: 1 RJ45 1 GbE Dedicated BMC LAN Port, 2 RJ45 10 GbE LAN Ports, 2000W Power Supply - (CSE-229TS-R000NP + X13SEB-TF) - SSG-221E-DN2R24R
1. Single Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processor. Up to 350W TDP.
2. 2 PCIe 5.0 x16 HHHL slots 2 PCIe 5.0 x8 HHHL slots
3. Supports 8 DIMMs per node with 1DPC, up to 2TB memory capacity with 8 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory per node.
4. Dedicated 1GbE Private Ethernet connection for node-to-node communication (Heartbeat)
5. 24 Hot-swap Dual Port Gen 5 U.2 NVMe SSD bays
6. Redundant Titanium 2000W Power Supplies
Extra Specifications for Supermicro SSG-221E-DN2R24R All-Flash NVMe 2U Barebone Two Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th and 4th Generation
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Supermicro SuperDoctor® 5 (SD5) | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LED | LAN1 activity | |
| Power status | ||
| HDD activity | ||
| System information (overheat/UID) | ||
| Power Fail | ||
| LAN2 acticity | ||
| Product SKUs | ||
| Product SKUs | SSG-221E-DN2R24R | |
| Motherboard | ||
| Motherboard | Super X13SEB-TF | |
| Processor (per Node) | ||
| CPU | Single Socket E (LGA-4677) | |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Supports 150W - 350W TDP CPUs (Air Cooled) | |
| System Memory (per Node) | ||
| Memory | View Memory Options | |
| Slot Count: 8 DIMM slots/8 Channels | ||
| Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices (per Node) | ||
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 10GbE with Intel® X710 | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| 2 RJ45 10 GbE LAN ports | ||
| USB | 2 USB 3.0 ports(rear) | |
| Video | 1 VGA port | |
| Serial | 1 COM port(Rear) | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-229TS-R000NP | |
| Dimensions and Weight | ||
| Height | 3.47" (88 mm) | |
| Width | 17.7" (449.4 mm) | |
| Depth | 30" (762 mm) | |
| Package | 9.64" (H) x 26.37" (W) x 43.3" (D) | |
| Weight | Gross Weight: 89.63 lbs (40.66 kg) | |
| Net Weight: 66.82 lbs (30.31 kg) | ||
| Available Color | Silver | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) Configuration | ||
| M.2 | ||
| Drive Bays / Storage (per Node) | ||
| Drive Bays Configuration | View NVMe Options | |
| Default: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays | ||
| 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays | ||
| M.2 | View M.2 Options | |
| 2 M.2 NVMe slots (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 6 Heavy Duty 6cm Fan(s) | |
| Air Shroud | 2 Air Shrouds | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Operating Relative Humidity: 8% to 90% () | ||
| Non-operating Relative Humidity: 5% to 95% () | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Cards | AOC-S25G-M2S | $ 204.00 | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | ||
| Network Cards | AOC-S40G-I2Q | $ 377.00 | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | ||
| Network Cards | AOC-SGP-I2 • | 0 | Standard LP 2-port GbE, Intel 82575 | |||
| Network Cards | More | 0 | AOC Compatibility Matrix (Select Storage & X12) | |||
| Power Cord | CBL-PWCD-0579 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Power Cord | CBL-PWCD-0300-IS | $ 20.00 | 0 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | ||
| Power Cord | CBL-PWCD-0579-1 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V |
