| Main Specifications |
| Device Type | SuperChassis |

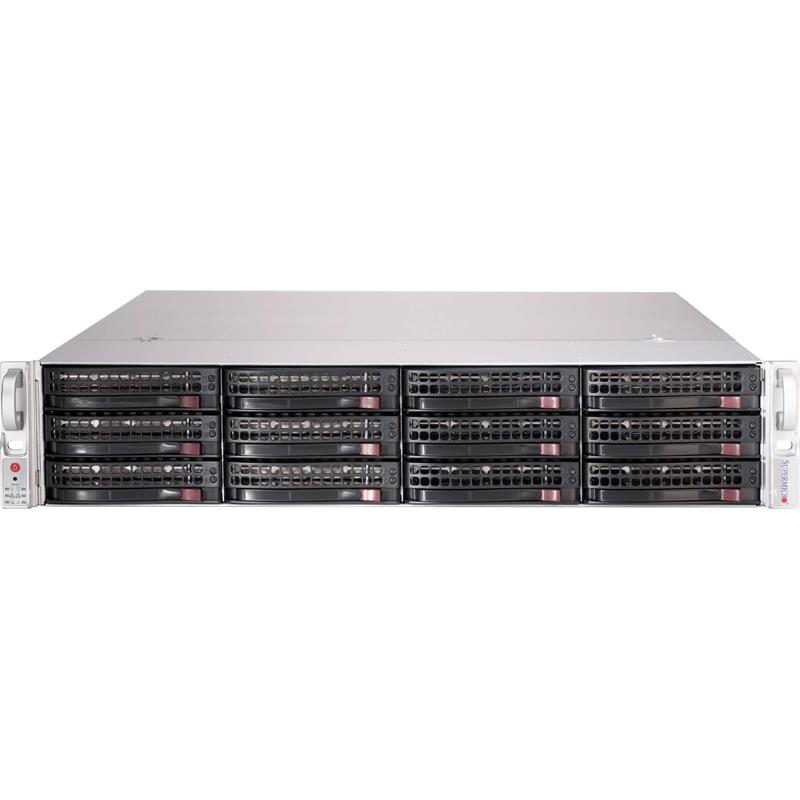

| Form Factor | 2U JBOD storage chassis |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Weight | Gross Weight 55 lbs (24.95 kg) - Net Weight 29 lbs (13.15 kg) |
| Enclosure Color | Black |
| Drive Bays |
| Drive Bays | 12x 3.5" hot-swap SAS3/SATA3 drive bay for JBOD solution |
| On-Board Devices |
| Qualified SAS Controllers | AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter (not included) |
| AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller (not included) |
| AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter (not included) |
| AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter (not included) |
| AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller (not included) |
| Backplane |
| SAS/SATA HDD Backplane | 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) |
| Front Panel |
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs |
| System Cooling |
| System Cooling | 3x 80x38mm hot-swap cooling fan(s) |
| System Monitoring |
| System Monitoring | IPMI |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium |
| Certification | 80 Plus Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Bracket(s) | 1x MCP-120-84702-0N, 1x MCP-120-84705-0N, 1x BPN-SAS3-826EL2 |
| Control Boards | 1x CSE-PTJBOD-CB3 |
| Cable(s) | 2x CBL-0160L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 3x CBL-PWEX-1069, 4x CBL-SAST-0532, 4x CBL-SAST-0593 |
| Parts | 1x MCP-230-82602-0N, 1x MCP-290-82603-0V, 1x MCP-290-82604-0V, 1x MCP-290-82605-0V, 1x MCP-290-82606-0N, 1x MCP-310-29003-1N, 1x MCP-310-29004-1N, 1x MCP-310-29005-1N, 1x MCP-310-29006-1N, 1x MCP-310-28005-1N, 1x MCP-260-00011-0N |
| Fan(s) | 1x FAN-0126L4 |
| Front Panel | 1x FPB-TB826-T |
| Drive Tray(s) | 12x MCP-220-00075-0B |
| Power Distributor(s) | PDB-PT826-8824 |
| Power Supply Number | 2x PWS-802A-1R |
| Mounting Rails | 1x MCP-290-00053-0N, 1x MCP-290-00060-0N |
| Rear Window | 1x MCP-240-82608-0N |
