| GPU |
| Max GPU Count | Up to 1 double-width or 2 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: RTX 4000 Ada Generation |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 8 DIMM slots/8 Channels |
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 2 RJ45 1GbE with Intel® I210 |
| SATA | SATA (6Gbps) |
| NVMe | View NVMe Options |
| NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Input / Output |
| LAN | 2 RJ45 1 GbE LAN ports |
| 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) |
| 2 USB 3.2 Gen1 ports(Header) |
| Video | 1 VGA port |
| Serial | 1 COM port(Rear) |
| 1 COM port(Header) |
| TPM | 1 TPM header |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 8 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Front Panel |
| Buttons | System Reset |
| Power On/Off |
| LED | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Power Failure LED |
| Product SKUs |
| Product SKUs | SYS-522B-WR |
| Motherboard |
| Motherboard | Super X14SBW-F |
| Processor |
| CPU | Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Single Socket E2 (LGA-4710) |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache |
| E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |

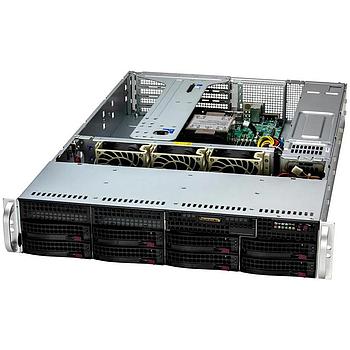

| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-825B2TS-R0WNP |
| Dimensions and Weight |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.5" (647 mm) |
| Package | 11" (H) x 26.5" (W) x 34" (D) |
| Weight | Net Weight: 34 lbs (15.42 kg) |
| Gross Weight: 59 lbs (26.76 kg) |
| Available Color | Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) |
| View NVMe Options |
| Default: Total 8 bays 8 front hot-swap 3.5" SAS*/SATA drive bays |
| 8 front hot-swap 3.5" SAS*/SATA drive bays |
| Option A: Total 8 bays 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5"/2.5" SAS*/SATA drive bays |
| 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays |
| 4 front hot-swap 3.5"/2.5" SAS*/SATA drive bays |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID) |
| Peripheral Bays | 1 slim peripheral bay |
| System Cooling |
| Fans | 3 heavy duty PWM 80x80x38cm Fan(s) |
| Air Shroud | 1 CPU Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
