| GPU |
| Max GPU Count | Up to 3 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| On-Board Devices |
| NVMe | View NVMe Options |
| NVMe; RAID 0/1 support(Intel® VROC RAID key required) |
| Network Connectivity | View AOC Options |
| 2 RJ45 10GBASE-T with Intel® X710-TM4 |
| 2 SFP+ 10GbE with Intel® X710-TM4 |
| Chipset | System on Chip |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| 2 SFP+ 10 GbE LAN ports |
| 2 RJ45 10 GbE LAN ports (Intel® X550-AT2) |
| USB | 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management |
| Power-on mode for DC power recovery |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Product SKUs |

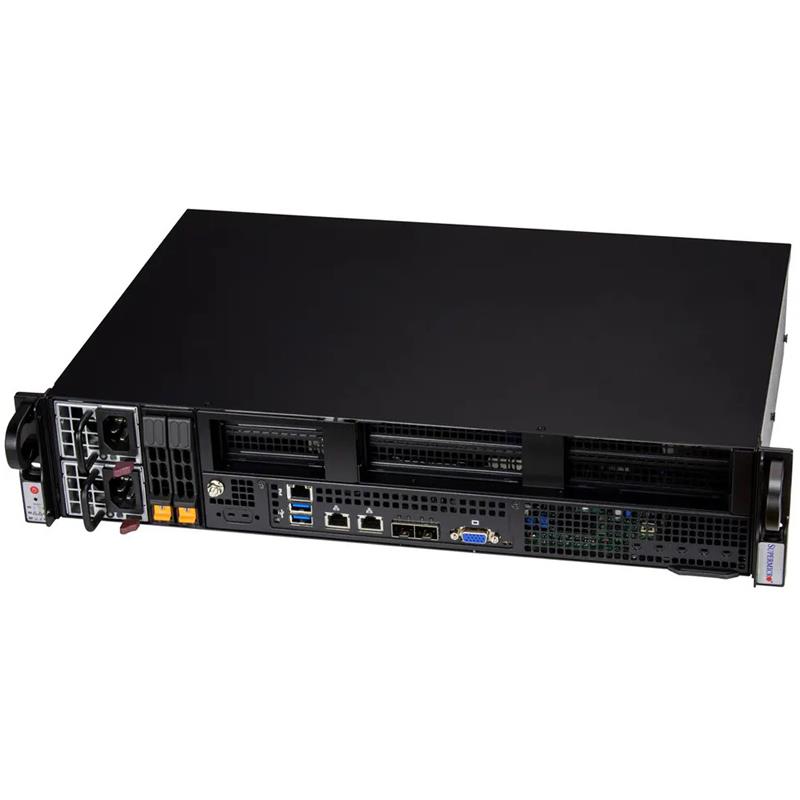

| Product SKUs | SYS-212B-FN4TP |
| Motherboard |
| Motherboard | Super X14SBM-TP4F |
| Processor |
| CPU | Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Single Socket E2 (LGA-4710) |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache |
| E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled)* |
| *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details. |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 8 DIMM slots |
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only) |
| Memory Voltage | 1.1V |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-211M-R000NDP |
| Dimensions and Weight |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (436.88 mm) |
| Depth | 11.8" (298.8 mm) |
| Package | 7.4" (H) x 19.3" (W) x 23.3" (D) |
| Weight | Net Weight: 17 lbs (7.7 kg) |
| Gross Weight: 22 lbs (10 kg) |
| Available Color | Silver/Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View NVMe Options |
| Default: Total 2 bays 2 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays |
| 2 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays |
| (*NVMe support may require additional storage controller and/or cables) |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling |
| Fans | 4x 4-PIN PWM 8cm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 5°C to 45°C (41°F to 113°F) |
