Supermicro SYS-E100-14AM-E IoT Compact Fanless Barebone Embedded Intel Atom x7433RE

Supermicro SYS-E100-14AM-E IoT Compact Fanless Barebone Embedded Intel Atom x7433RE

• Industrial / Automation
• Healthcare
• Digital Signage Kiosk, Interactive info system
• Retail

Compact Fanless Barebone, Embedded Intel Atom x7433RE Processor (Up to 4C/4T; Up to 6MB Cache) Supports up to 9W TDP CPUs (Air Cooled). Up to 16GB in 1 DIMM Slots/1 Channels, SO-DIMM, Chipset: System on Chip, Expansion Slots: 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280), 1 M.2 slot (E-key 2230(default)), 1 M.2 PCIe 3.0 x1 SATA slot (M-key 2242/2280). Drive Bays / Storage: 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280, USB 3.0), 1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280). Network Connectivity: 2x RJ45 2.5 GbE LAN Ports (Intel I226), DC Jack Lockable - Voltage Range: 9V~36V - (CSE-E101-05 + A4SAN-E-WOHS) - SYS-E100-14AM-E

1. Intel® Atom® x7433RE (TDP 9W / 4C)
2. DDR5-4800MT/s 1 DIMM max 16GB
3. 2x RJ45 2.5GbE (Intel i226-IT)
4. Fanless supporting max 60°C with Fin Bottom Cover (Optional accessory)
5. DC Jack lockable 9V~36V
6. 2x HDMI 1.4 ports, 4x USB3.2 ports and 2x USB2.0 ports, 4x COM ports (COM1/2 RS232/422/485 + COM3/4 RS232)
7. M.2:1x M-Key 2242 / 2280 ,1x B-Key 2242 / 2280/3052 (NANO SIM slot),1x E-Key 2230

Extra Specifications for Supermicro SYS-E100-14AM-E IoT Compact Fanless Barebone Embedded Intel Atom x7433RE

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 2.5GbE with Intel® I226-IT
Input / Output
LAN	2 RJ45 2.5 GbE LAN ports (Intel® I226)
USB	2 USB 2.0 Type-A ports(rear)
	4 USB 3.2 Gen2 Type-A ports(Front)
Video	2 HDMI 1.4 ports(Front)
Serial	4 COM ports(Rear)
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro SuperDoctor® 5 (SD5)
Power configurations	ACPI Power Management
	Power-on mode control for AC power loss recovery
	Force power-on by jumper
	+9~36V DC Power Input
Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Secure Boot
Product SKUs
Product SKUs	SYS-E100-14AM-E
Motherboard

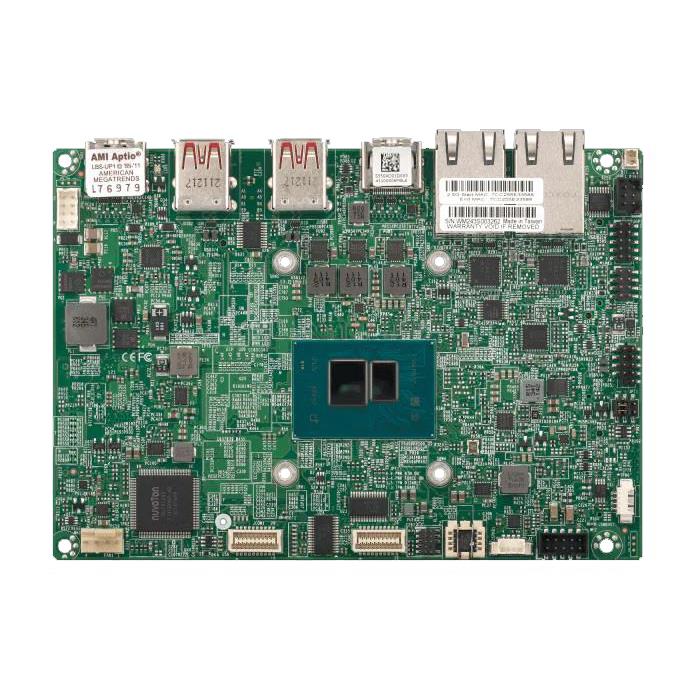

Motherboard	Super A4SAN-E-WOHS
Processor
CPU	Intel® Atom® x7433RE
Core Count	Up to 4C/4T; Up to 6MB Cache
Note	Supports up to 9W TDP CPUs (Air Cooled)
System Memory
Memory	View Memory Options
	Slot Count: 1 DIMM slots/1 Channels
	Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
Memory Voltage	1.1V
Chassis
Form Factor	Fanless Embedded
Model	CSE-E101-05
Dimensions and Weight
Height	1.73" (44 mm)
Width	7.68" (195 mm)
Depth	5.94" (150 mm)
Package	5.12" (H) x 11.81" (W) x 11" (D)
Weight	Gross Weight: 4.3 lbs (1.95 kg)
	Net Weight: 2.16 lbs (0.98 kg)
Palletized Packing (W x H x L)	54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
Available Color	Black
Expansion Slots
M.2
Drive Bays / Storage
M.2	View M.2 Options
	1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280)
	1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280/3052; USB 3.0)
System Cooling
Fans	N/A
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)
	Operating Temperature: -20°C to 50°C (-4°F to 122°F) with 0.7 m/s airflow

Name	Part Number	Price	Add to Cart	Qty.	Description
	Audio Kit	MCP-280-10001-0B	$ 24.50		1	Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS
Din Rail Kit	MCP-290-10201-0N			1	CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
	Thermal Solution	MCP-270-10105-0B	$ 110.50		1	FIN base bottom cover for M.2 NMVe
Thermal Solution	MCP-270-10105-1B			1	FIN base bottom cover for HAILO-8 M.2 Module

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
