| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| System Cooling |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Fans | 16x 31K RPM Counter Rotating 40x40x56mm Fan(s) |
| Air Shroud | 4 Air Shrouds |
| Product SKUs |

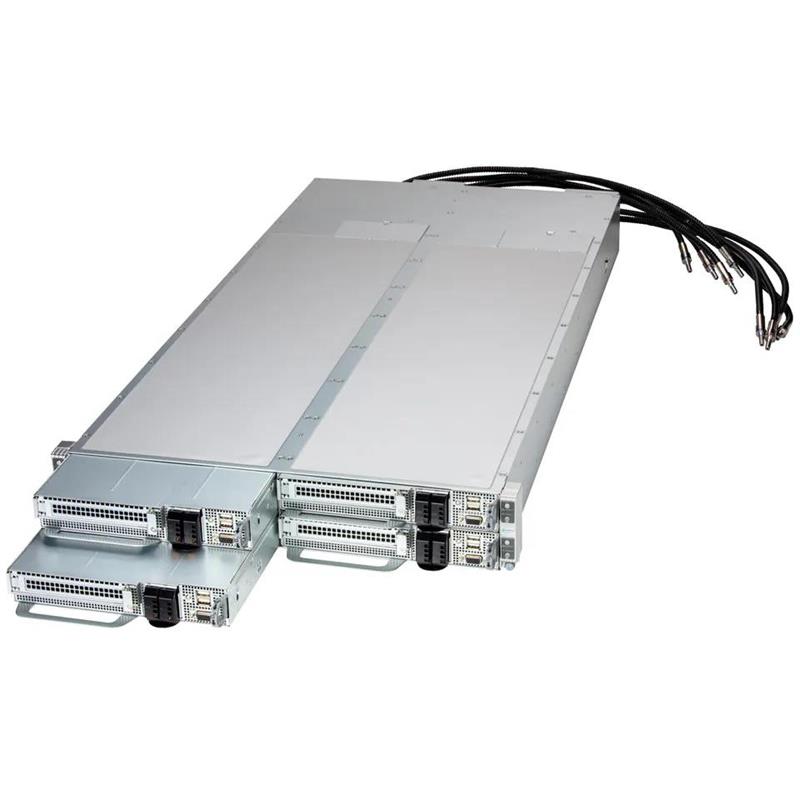

| Product SKUs | SYS-222FT-HEA-LCC |
| Motherboard |
| Motherboard | Super X14DBT-FAP |
| Processor (per Node) |
| CPU | Dual Socket BR (LGA-7529) |
| Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Liquid Cooled) |
| System Memory (per Node) |
| Memory | View Memory Options |
| Slot Count: 24 DIMM slots |
| Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices (per Node) |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| View NVMe Options |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| Via AIOM |
| View AIOM Options |
| Input / Output (per Node) |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 2.0 Type-A ports(front) |
| Video | 1 VGA port(Front) |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI/APM Power Management |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-F214EC-000NP |
| Dimensions and Weight |
| Height | 3.46" (88 mm) |
| Width | 17.67" (449 mm) |
| Depth | 36.08" (916.6 mm) |
| Package | 11.54" (H) x 27.6" (W) x 50.63" (D) |
| Weight | Net Weight: 105 lbs (47.63 kg) |
| Gross Weight: 129 lbs (58.51 kg) |
| Available Color | Silver |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage (per Node) |
| Drive Bays Configuration | View NVMe Options |
| Option A: Total 2 bays 2 front hot-swap E1.S NVMe* drive bays |
| 2 front hot-swap E1.S NVMe* drive bays |
| (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); optional configuration) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
