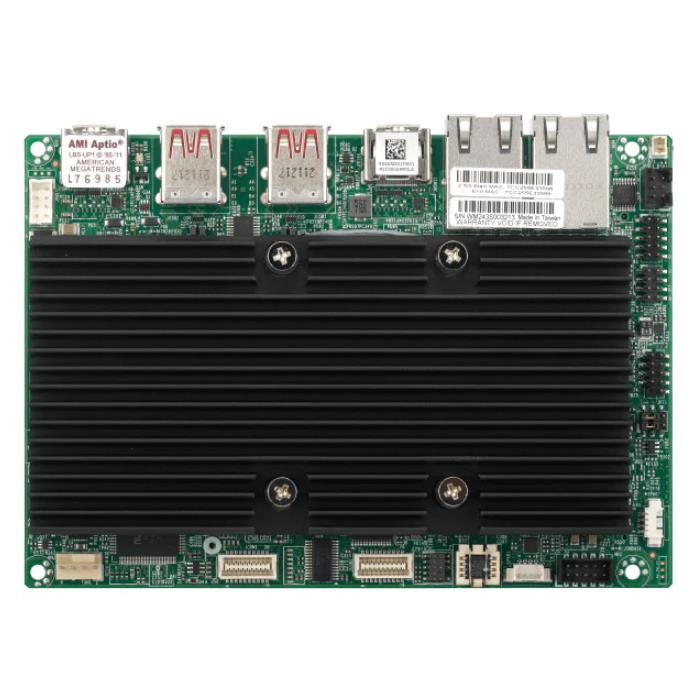

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | 3.5" SBC |
| Dimensions (WxDxH) | 5.7" x 4" (14.6cm x 10.16cm) |
| Processor Socket | Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP |
| Processor |
| Embedded Processor | Intel Atom Processor x7835RE |
| Number of Cores | Up to 8 cores / 6MB Cache |
| System Memory |
| Memory Capacity | 1 DIMM slots, Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s |
| Memory Type | 4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB |
| DIMM Sizes | 8GB, 16GB, SODIMM: 8GB, 16GB |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System-on-Chip |
| Audio | ALC 888S HD Audio |
| Graphics | 1 Intel® UHD Graphics port(s) |
| Network Controllers | Dual LAN with Intel Ethernet Controller I226-IT |
| Input / Output |
| USB(s) | 4 USB 3.2 Gen2 port(s) (4 rear), 1 USB 2 port(s) (1 via header) |
| Video Output | 2 HDMI port(s), 1 48-bit LVDS port(s) |
| TPM | 1 TPM Chip |
| Others | 1 8-bit GPIO header, 1 System Fan, 1 HD Audio header (Mic-in/Headphone-out), 1 SMBus/I2C header, 1 Speaker w/ 3W amp. |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | N/A |
| M.2 | Key: B-Key, M-Key, E-Key |
| M.2 2242/3052/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder |
| M.2 2242/2280 M-Key (SATA Gen3/PCIe Gen3 x1) |
| M.2 2230 E-Key (PCIe 3.0 x1/USB2) |
| System BIOS |
| BIOS Type | 32MB AMI UEFI |
| BIOS Features | ACPI 6.4, SMBIOS 3.3, UEFI 2.7, PCI FW3.0, RTC (Real Time Clock) Wakeup |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, VDD2 (VDIMM) |
| Temperature | CPU thermal trip support |
| Other Features | WOL, RoHS, Control of power-on for recovery from AC power loss, ACPI power management |
| FAN | 1x 4-pin fan header (up to 1 fan) |
| Environmental |
| Operating Environment | Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) |
| Non-Operating Temperature Range: -40°C - 60°C (-40°F - 140°F) |
| Non Operating Relative Humidity Range: 10% - 95% (non-condensing) |
| Parts List |
| I/O Cables | 1x CBL-OTHR-0986, 2x CBL-CDAT-0665, 1x CBL-PWEX-1029, 1x CBL-CUSB-0983 |
| Heat Sink | 1x SNK-C0168L |
| QRG | 1x MNL-2690-QRG |
