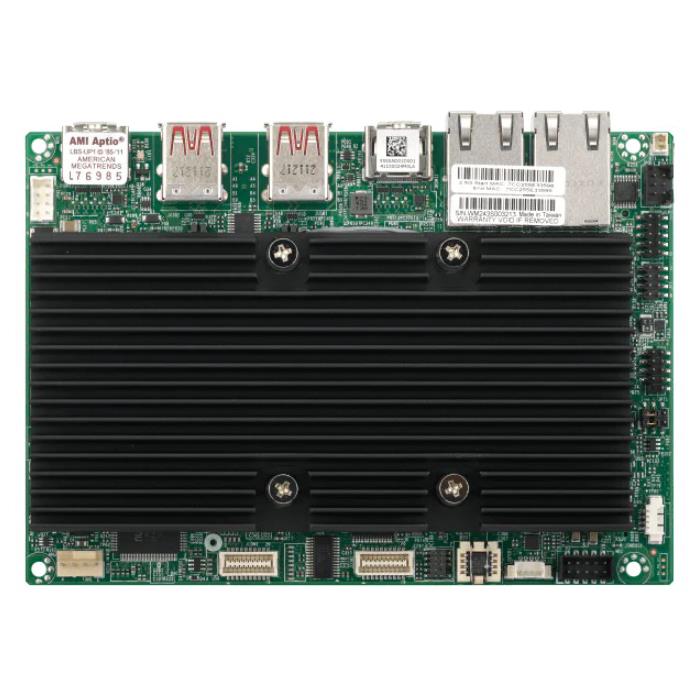

  2. Supermicro A4SAN-L Motherboard UP IoT 3.5" SBC Embedded Intel N97 Processor 4-Core
Supermicro A4SAN-L Motherboard UP IoT 3.5" SBC Embedded Intel N97 Processor 4-Core

Supermicro A4SAN-L Motherboard UP IoT 3.5" SBC Embedded Intel N97 Processor 4-Core

  • Adaptive Thermal Management/Monitoring

  • 16GB of Non-ECC DDR5 SO-DIMM memory in a single DIMM slot

  • AI Acceleration with Intel Deep Learning Boost (VNNI), INT8 support

  • Enhanced Intel SpeedStep® Technology, Intel Speed Shift Technology

Motherboard 3.5" SBC Embedded Intel N97 Processor With 4-Core/6 MB Cache 12W TDP. Supports Up to 16GB DDR5-4800MHz SODIMM Unbuffered in 1 DIMM Slot - On-Board: ALC 888S HD Audio, 1 Intel UHD Graphics Port, LAN Ports: Dual 2.5GbE LAN with Intel Ethernet Controller I226-IT, Includes M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280 - (MBD-A4SAN-L)

Contact us for volume discounts

    This combination does not exist.

    InStock
    2 lb
    Email For Price

    Built upon the functionality and capability of the Intel Atom SoC series processor, the A4SAN-L motherboard offers maximum I/O expandability, energy efficiency, and data reliability in a 10-nm process architecture, and is optimized for embedded storage solutions, networking applications, or cloud-computing platforms. The A4SAN-L drastically increases system performance for a multitude of server applications.


    Key Features


    • Intel processor N97 (12W, 4C)

    • DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported

    • Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported

    • 9-36V wide range power with RVP and TVS

    • M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280

    • 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO

    • 2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays

    Extra Specifications for Supermicro A4SAN-L Motherboard UP IoT 3.5" SBC Embedded Intel N97 Processor 4-Core

    Main Specifications
    Device TypeMotherboard
    Form Factor3.5" SBC
    Dimensions (WxDxH)5.7" x 4" (14.6cm x 10.16cm)
    CPU CoresUp to 4 cores / 6MB Cache
    Processor
    Embedded ProcessorIntel Processor N97
    Compatible SocketSingle Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
    System Memory
    Memory Capacity1 DIMM slots, Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
    Memory Type4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
    DIMM Sizes8GB, 16GB - SODIMM: 8GB, 16GB
    Memory Voltage1.1V
    On-Board Devices
    ChipsetSystem on Chip
    AudioALC 888S HD Audio
    Graphics1 Intel UHD Graphics port
    Network ControllersDual LAN with Intel Ethernet Controller I226-IT
    Input / Output
    USB(s)4 USB 3.2 Gen2 port(s) (4 rear), 1 USB 2 port(s) (1 via header)
    Video Output2 HDMI port(s), 1 48-bit LVDS port(s)
    TPM1 TPM Chip
    Others1 8-bit GPIO header, 1 HD Audio header (Mic-in/Headphone-out), 1 SMBus/I2C header, 1 Speaker w/ 3W amp.
    Expansion / Connectivity
    M.2Key: B-Key, M-Key, E-Key
    M.2 2242/3052/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder
    M.2 2230 E-Key (CNVi,PCIe 3.0 x1/USB2)
    M.2 2242/2280 M-Key (SATA Gen3/PCIe Gen3 x1)
    System BIOS
    BIOS Type32MB AMI UEFI
    BIOS FeaturesACPI 6.4, SMBIOS 3.3, UEFI 2.7, PCI FW3.0, RTC (Real Time Clock) Wakeup
    PC Health Monitoring
    VoltageVBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, Vcore, VDD2 (VDIMM)
    TemperatureCPU thermal trip support
    Other FeaturesWOL, RoHS, Control of power-on for recovery from AC power loss, ACPI power management
    FAN1x 4-pin fan header (up to 1 fan)
    Environmental
    Operating EnvironmentOperating Relative Humidity Range: 8% - 90% (non-condensing)
    Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F)
    Operating Temperature Range: 0°C - 60°C (32°F - 140°F)
    Non Operating Relative Humidity Range: 10% - 95% (non-condensing)
    Parts List
    I/O Cables1x CBL-OTHR-0986, 2x CBL-CDAT-0665, 1x CBL-PWEX-1029, 1x CBL-CUSB-0983
    Heat Sink1x SNK-C0168L
    QRG1x MNL-2690-QRG

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
