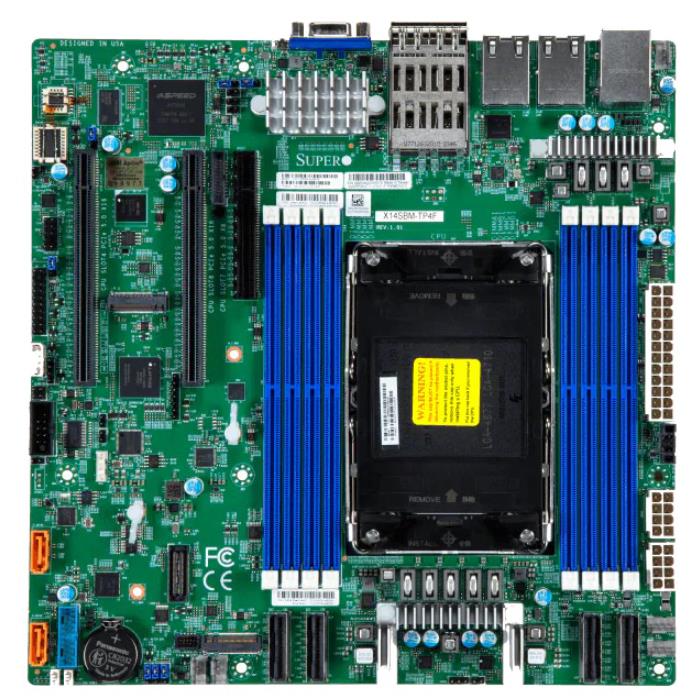

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | microATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| BIOS 1.2 or above is required to support Intel Xeon 6700/6500-series processors with P-cores |
| Compatible Socket | Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP |
| Number of Cores | 144-Core |
| System Memory |
| Memory Capacity | Slot Count: 8 DIMM Slots, Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM, Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only) |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System-on-Chip |
| SATA/SAS | ASMediaASM1061 controller for 2 SATA3 ports |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2600 BMC |
| Network Controllers | Quad LAN with 10GBase-T and 10G SFP+ with Intel X710-TM4 |
| TPM | 1 TPM Header, 1 TPM TPM 2.0 onboard |
| Input / Output |
| SATA | 2 SATA3 port(s) |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port, 2 10G SFP+ LAN ports |
| USB(s) | 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) |
| Video Output | 1 VGA D-Sub Connector port |
| Serial Port / Headers | 1 COM Port(s) (1 header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16, 1 PCIe 5.0 x8, 4 PCIe 5.0 x8 MCIO connector |
| M.2 | Key: M-key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 5.0 x2 |
| System BIOS |
| BIOS Type | AMI 64MB AMI UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V |
| LED | UID/Remote UID, CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control |
| Other Features | WOL, UID, Control of power-on for recovery from AC power loss, ACPI power management |
| Parts List |
| CPU carrier | 1x SKT-1543H-0000-FXC, 1x SKT-1544H-0000-FXC |
| I/O Shield | 1x MCP-260-00154-0N |
| QRG | 1x MNL-2681-QRG |
| I/O Cables | 2x CBL-0044L |
