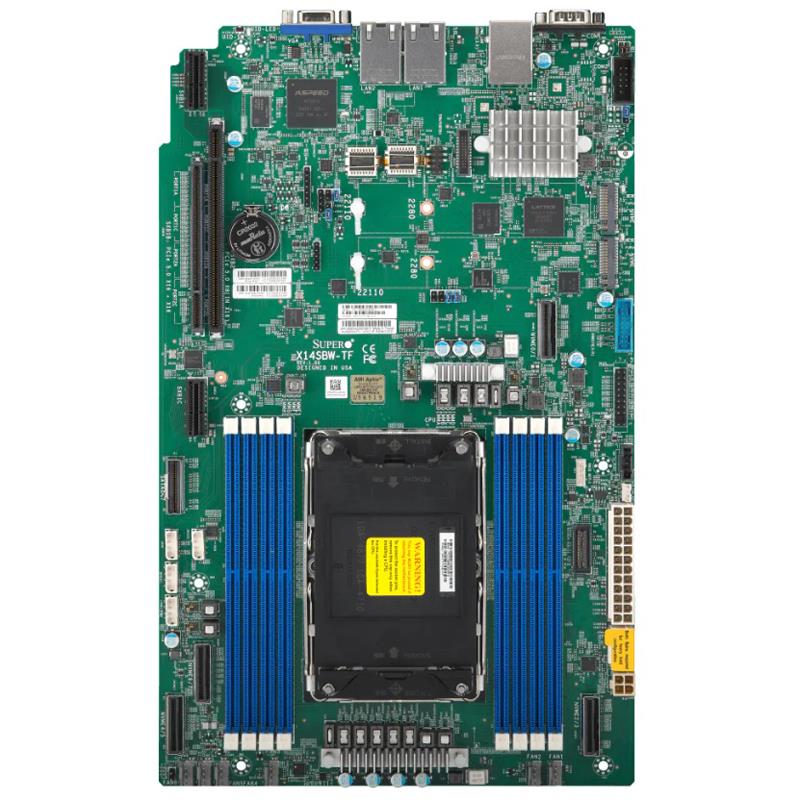

  2. Supermicro X14SBW-TF Motherboard Proprietary WIO Single Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro X14SBW-TF Motherboard Proprietary WIO Single Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores

Supermicro X14SBW-TF Motherboard Proprietary WIO Single Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores

  • Dual LAN with 10G Base-T with Intel X550 (X14SBW-TF)

  •  BMC supports remote management, virtualization, Redfish

  • Up to 2TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM

  • Supports Intel Xeon 6700/6500 Series Processors With P-Cores

Motherboard Proprietary WIO Support Single Socket E2 (LGA-4710), Supporting Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores (Up to 144), CPU TDP Supports Up to 350W TDP. Supports Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM, Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM in 8 DIMM Slots, Chipset: System on Chip. On-Board: ASMedia ASM1164 Controller For 8 SATA3 Ports, TPM 2.0, LAN Ports: 2 RJ45 10 Gigabit Ethernet LAN Ports, 1 RJ45 Dedicated IPMI LAN Port, Includes 1 PCIe 5.0 x8 Right Riser (in x16) slot, 1 PCIe 5.0 x32 Left Riser Slot, 4 PCIe 5.0 x8 PCIe5.0 MCIO Connector, M.2 Interface: 2 PCIe 5.0 x2, Form Factor: 2280/22110, Key: M-Key - (MBD-X14SBW-TF)

Contact us for volume discounts

    This combination does not exist.

    InStock
    3 lb
    Email For Price

    Built upon the capability of the Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores the X14SBW-TF WIO motherboard provides system performance, power efficiency, and feature sets to address the needs of next-generation computer users.


    The X14SBW-TF motherboard utilizes Supermicro legendary WIO rich and flexible I/O configuration features dramatically increases system performance in smallest footprint for a multitude of server, networking and storage applications


    Key Features


    • Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP

    • Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots

    • 4 PCIe 5.0 X8 via MCIO connectors

    • 1 PCIe 5.0 x8 (WIO-R), 2 PCIe 5.0 x16 (WIO-L), M.2 Interface: 2 PCIe 5.0 x2 (Form Factor: 2280, 22110, M-Key)

    • Dual LAN with 10GBase-T with Intel X550

    • 4 USB 3.2 Gen1(2 rear, 2 via header), 8 SATA3 (via SlimSAS x8)

    • Onboard TPM9672: TCG2.0, FIPs 140-2 Level 2, Intel TXT and Microsoft Windows certification


    Optimized Servers


    • SYS-112B-FWT

    • SYS-E403-14B-FRN2T

    Extra Specifications for Supermicro X14SBW-TF Motherboard Proprietary WIO Single Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores

    Main Specifications
    Device TypeMotherboard
    Form FactorProprietary WIO
    Dimensions (WxDxH)8" x 13" (20.32cm x 33.02cm)
    Processor
    Compatible ProcessorsIntel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores
    BIOS 1.1a or above is required to support Intel Xeon 6700/6500-series processors with P-cores
    Compatible SocketSingle Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
    Number of Cores144-Core
    System Memory
    Memory CapacitySlot Count: 8 DIMM Slots
    Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
    Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM
    DIMM SizesMRDIMM (P-core only):32GB, 64GB
    RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB
    3DS RDIMM:256GB
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem-on-Chip
    SATA/SASASMediaASM1164 controller for 8 SATA3 ports
    IPMIASPEED AST2600 BMC
    Network ControllersDual LAN with 10GBase-T with Intel X550
    Input / Output
    SATA8 SATA3 port(s)
    LAN2 RJ45 10 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port
    USB(s)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    Video Output1 VGA D-Sub Connector port
    Serial Port / Headers2 COM Port(s) (1 header, 1 rear)
    TPM1 TPM Header, 1 TPM TPM 2.0 onboard
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 5.0 x8 Right Riser (in x16) slot, 1 PCIe 5.0 x32 Left Riser Slot, 4 PCIe 5.0 x8 PCIe5.0 MCIO connector
    M.2Key: M-key
    Form Factor: 2280/22110
    M.2 Interface: 2 PCIe 5.0 x2
    System BIOS
    BIOS TypeAMI 64MB AMI UEFI
    BIOS FeaturesACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9
    Management
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LEDUID/Remote UID, CPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
    FAN6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication
    Other FeaturesWOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
    Parts List
    CPU carrier1x SKT-1543H-0000-FXC, 1x SKT-1544H-0000-FXC
    QRG1x MNL-2675-QRG
    I/O Cables1x CBL-SAST-1275A-100

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
