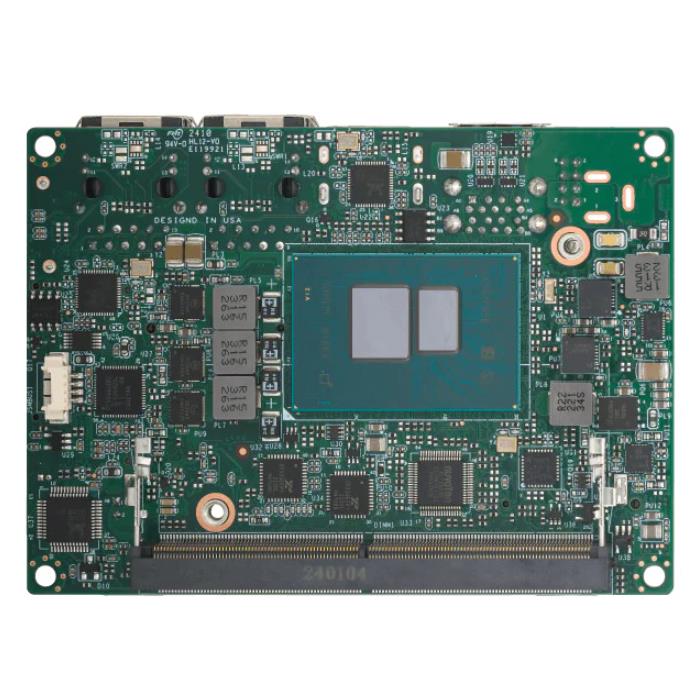

Main Specifications |
Device Type | Motherboard |
Form Factor | Pico-ITX |
Dimensions (WxDxH) | 4" x 2.83" (10.16cm x 7.19cm) |
Processor |
Embedded Processor | Intel Atom Processor x7433RE |
Compatible Socket | Single Socket FCBGA-1264 supported, CPU TDP supports Up to 9W TDP |
Number of Cores | Up to 4 cores / 6MB Cache |
System Memory |
Memory Capacity | 1 DIMM slots, Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s |
Memory Type | 4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB |
DIMM Sizes | 8GB, 16GB, SODIMM: 8GB, 16GB |
Memory Voltage | 1.1V |
On-Board Devices |
Chipset | System-on-Chip |
SATA/SAS | SoC controller for 1 SATA3 (6 Gbps) ports |
Audio | ALC 888S HD Audio |
Input / Output |
USB(s) | 2 USB 3.2 Gen2 port(s) (2 rear), 1 USB 2 port(s) (1 Others) |
Video Output | 1 HDMI port(s), 1 48-bit LVDS port(s) |
Others | 1 8-bit GPIO header, 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C), 1 SMbus and 5V/A SATA Power bo header, 1 SMBus |
Expansion / Connectivity |
Expansion Slots Total (Free) | N/A |
M.2 | M.2 Interface: 1 PCIe3.0 x1/USB2; 1 PCIe3.0 x1/SATA3.0 x1/USB3/USB2 |
| Form Factor: 2230, 2242 |
| Key: E-Key, B-Key |
System BIOS |
BIOS Type | 32MB AMI UEFI |
BIOS Features | ACPI 6.4, SMBIOS 3.3, UEFI 2.7, PCI FW3.0, RTC (Real Time Clock) Wakeup |
PC Health Monitoring |
Voltage | VBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, Vcore, VDD2 (VDIMM) |
Temperature | CPU thermal trip support |
Other Features | WOL, RoHS, Control of power-on for recovery from AC power loss, ACPI power management |
Environmental |
Operating Environment | Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) |
| Non Operating Relative Humidity Range: 10% - 95% (non-condensing) |
| Operating Temperature Range: -40°C - 65°C (-40°F - 149°F) |
Parts List |
Heat Sink | 1x SNK-C0115L |
QRG | 1x MNL-2701-QRG |
I/O Cables | 1x CBL-OTHR-0986, 1x CBL-CUSB-0984, 1x CBL-PWEX-1029, 1x CBL-SAST-0538, 1x CBL-PWEX-1030, 1x CBL-CUSB-0983 |
