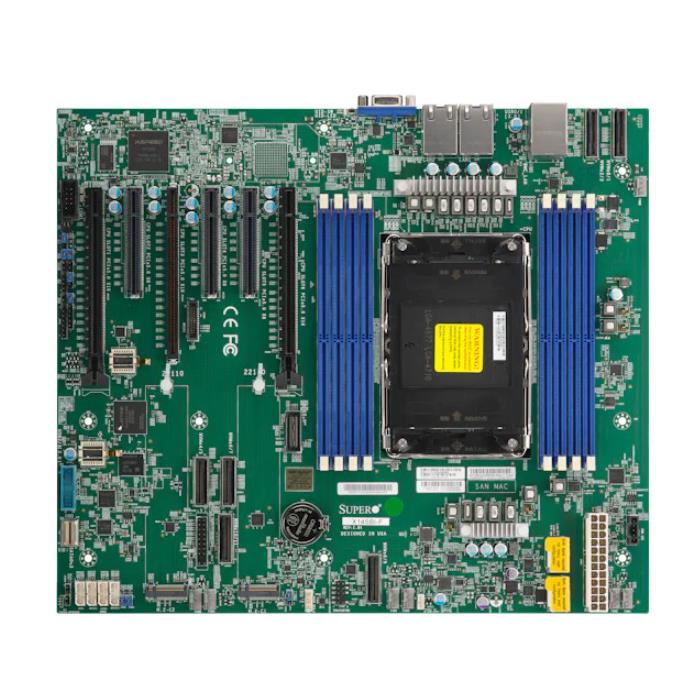

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | ATX |
| Dimensions (WxDxH) | 12.3" x 10.5" (31.24cm x 26.67cm) |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Compatible Socket | Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP |
| Number of Cores | 144-Core |
| System Memory |
| Memory Capacity | 8 DIMM slots, Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s |
| Memory Type | Slot Count: 8 DIMM Slots, Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| DIMM Sizes | MRDIMM (P-core only):32GB, 64GB |
| RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB |
| 3DS RDIMM:256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System-on-Chip |
| SATA/SAS | ASMediaASM1164 controller for 4 SATA3 ports |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with 1GbE with Intel I210 |
| Input / Output |
| SATA | 4 SATA3 port(s) |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port |
| USB(s) | 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port / Headers | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header, 1 TPM TPM 2.0 onboard |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3 PCIe 5.0 x8, 3 PCIe 5.0 x16, 6 PCIe 5.0 x8 PCIe5.0 MCIO connector |
| M.2 | Form Factor: 22110 |
| Key: M-key |
| M.2 Interface: 2 PCIe 5.0 x2 |
| System BIOS |
| BIOS Type | AMI 64MB AMI UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7 -fan status |
| LED | UID/Remote UID, CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| FAN | 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication |
| Other Features | WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management |
| Parts List |
| CPU carrier | 1x SKT-1543H-0000-FXC, 1x SKT-1544H-0000-FXC |
| I/O Shield | 1x MCP-260-00042-1N |
| QRG | 1x MNL-2712-QRG |
| I/O Cables | 1x CBL-SAST-1280QT4S2-100 |
