| On-Board Devices |
| Chipset | AMD B650 |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) |
| 2 RJ45 1GbE with Intel® I210-AT |
| SATA | SATA (6Gbps) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| PC Health Monitoring |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature |
| Front Panel |
| Buttons | Power On/Off button |
| LED | HDD activity LED |
| Power LED |
| System Overheat LED |
| Network activity LEDs |
| Port | USB 3.0 Port(s) |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays |
| 4 front hot-swap 3.5" SATA drive bays |
| Option A: Total 4 bays 4 front hot-swap 2.5" SATA drive bays |
| 4 front hot-swap 2.5" SATA drive bays |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) |
| Peripheral Bays | 2 5.25" peripheral bays |
| Product SKUs |
| Product SKUs | AS -C531i-11172U |
| Motherboard |
| Motherboard | Super H13SAE-MF |
| Processor |
| CPU | Single processor(s) |
| AMD Ryzen 7 8700G |
| Core Count | 8C/16T; 16MB Cache |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 1 triple-width or 1 double-width GPU |
| Supported GPU | View GPU Options |
| AMD PCIe: Radeon Pro W7800 |
| NVIDIA PCIe: RTX 4070, RTX A4000, RTX A2000 |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 4 DIMM slots |
| Max Memory (1DPC): 192GB 5200MT/s non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| Input / Output |
| Video | 1 VGA port |
| 1 HDMI 2.0b port |
| 1 DisplayPort 1.4a port |
| Audio | Rear Audio |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |

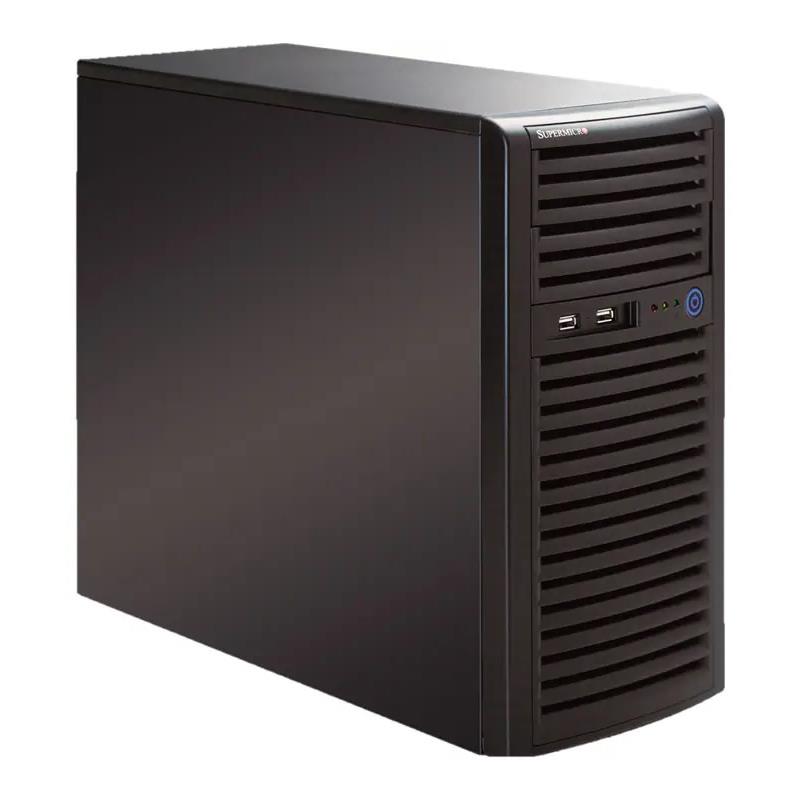

| Chassis |
| Form Factor | Mini-Tower |
| Model | CSE-731i-668B |
| Dimensions and Weight |
| Height | 14.25" (362 mm) |
| Width | 7.25" (184 mm) |
| Depth | 16.75" (425 mm) |
| Package | 20" (H) x 11" (W) x 21" (D) |
| Weight | Net Weight: 28 lbs (12.7 kg) |
| Gross Weight: 30 lbs (13.61 kg) |
| Available Color | Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| System Cooling |
| Fans | 1 Fan(s) |
| 1x 12mm Fan(s) (optional) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
