| Main Specifications |
| Device Type | CloudDC A+ Server |

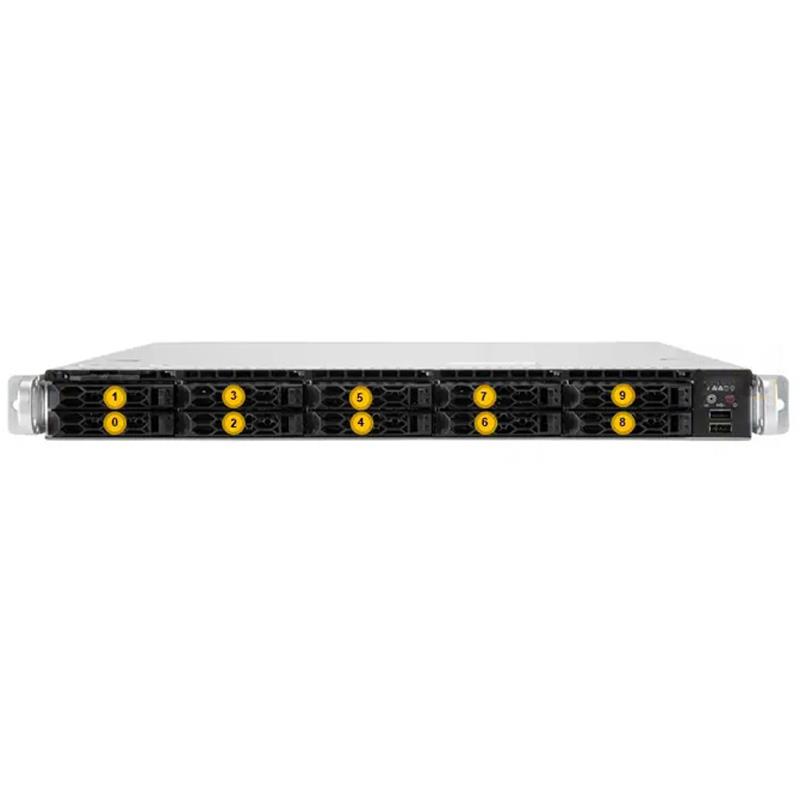

| Form Factor | 1U Rackmount - CSE-LB16TS-R860AWP-A |
| Built-in Devices | Super H13SSW |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) |
| Weight | Gross Weight: 46 lbs (20.9 kg) - Net Weight: 25 lbs (11.3 kg) |
| Enclosure Color | Black front & sliver body |
| Processor |
| Processor Installed | AMD EPYC 9454P Processor With 48-Core/96 Thread, TDP: 290W |
| GPU |
| Max GPU Count | Up to 2 single-width GPUs |
| Supported GPUs | NVIDIA PCIe: L4, A2 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory |
| Memory Installed | 384GB DDR5-5600 (at 4800) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | Dual-port 10 Gigabit Network Card Installed |
| Input / Output |
| USB(s) | 2 USB 3.0 ports(rear), 2 USB 2.0 ports(front) |
| Video Output | 1 VGA port |
| Serial Port / Headers | 1 COM port(Rear) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), OOB Management Package (SFT-OOB-LIC), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Front Panel |
| LEDs | Drive activity, Network activity, Power status, Universal Information (UID) |
| Buttons | Power On/Off, Universal Information (UID) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| M.2 | 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 10 front hot-swap 2.5" SATA drive bays |
| Option A: 10 front hot-swap 2.5" PCIe 5.0 NVMe drive bays |
| Option B: 10 front hot-swap 2.5" SAS drive bays (NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| 6x 4cm heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | 860W Redundant Platinum Level (94%) power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Drive Bays |
| Hard Drive Installed | 2x 960GB M.2 Solid-state Drive (SSD) |
| Drive Bays | 10x 2.5" hot-swap SAS/SATA drive bay |
