| Main Specifications |

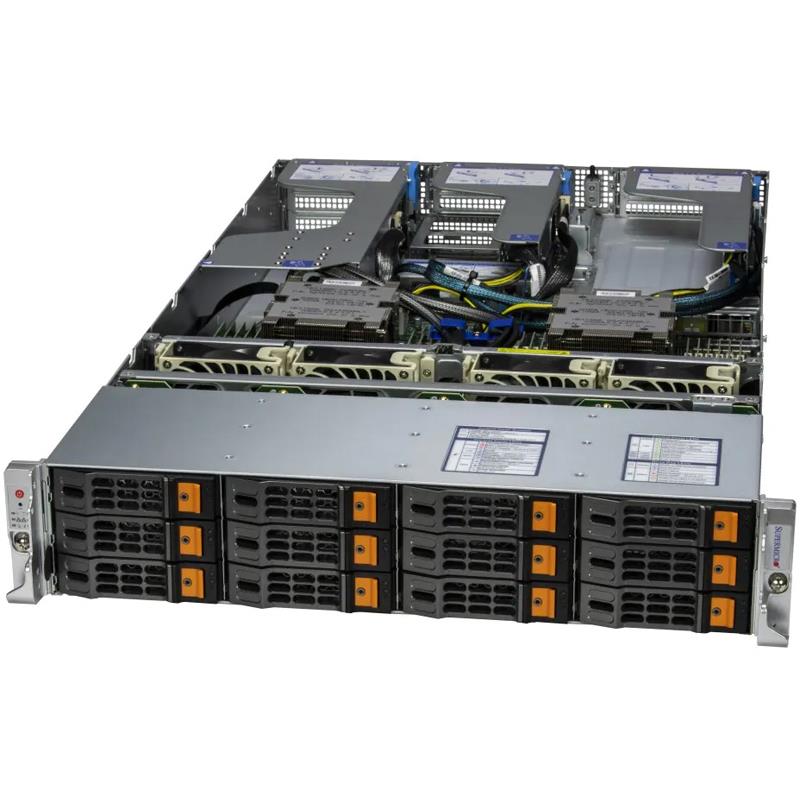

| Device Type | Hyper A+ Server |
| Built-in Devices | Super H13DSH |
| Form Factor | 2U - CSE-HS829-R1K63P-A |
| Dimensions (WxDxH) | Height 3.5" (88.9 mm) x Width 17.2" (437 mm) x Depth 31.6" (803 mm) |
| Weight | Gross Weight: 69 lbs (31.3 kg) - Net Weight: 39 lbs (17.7 kg) |
| Enclosure Color | Black Front & Silver Body |
| Processor |
| Processor Installed | 2x AMD EPYC 9654 (96-Core/2.4GHz) |
| GPU |
| GPU Installed | 2x NVIDIA L40S |
| System Memory |
| Memory Installed | 24x 96GB DDR5-5600 (at 4800) |
| On-Board Devices |
| Network Connectivity | Dual 10GbE RJ45 |
| Drive Bays |
| Hard Drive Installed | 1x 960GB U.2 NVMe Solid-state Drive (SSD) |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 ports(rear) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), OOB Management Package (SFT-OOB-LIC), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| PC Health Monitoring |
| Temperature | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| LED | HDD activity, LAN1 activity, Power status, System information |
| Front Panel |
| Buttons | Power On/Off, UID button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option A: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option B: 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option C: 2 PCIe 5.0 x16 (in x16) FHFL double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option D: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option E: 4 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option F: 4 PCIe 5.0 x16 (in x16) FHFL double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option G: 3 PCIe 5.0 x16 (in x16) FHFL double-width slots, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option H: 2 PCIe 5.0 x16 (in x16) FHFL double-width slots, 4 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option I: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot, 6 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | 12 front hot-swap 3.5"/2.5" NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | 4x 8cm heavy duty fans with optimal fan speed control |
| 2 Air Shrouds |
| Power Supply |
| Power Supply | 2x 1600W Redundant Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
