| Main Specifications |

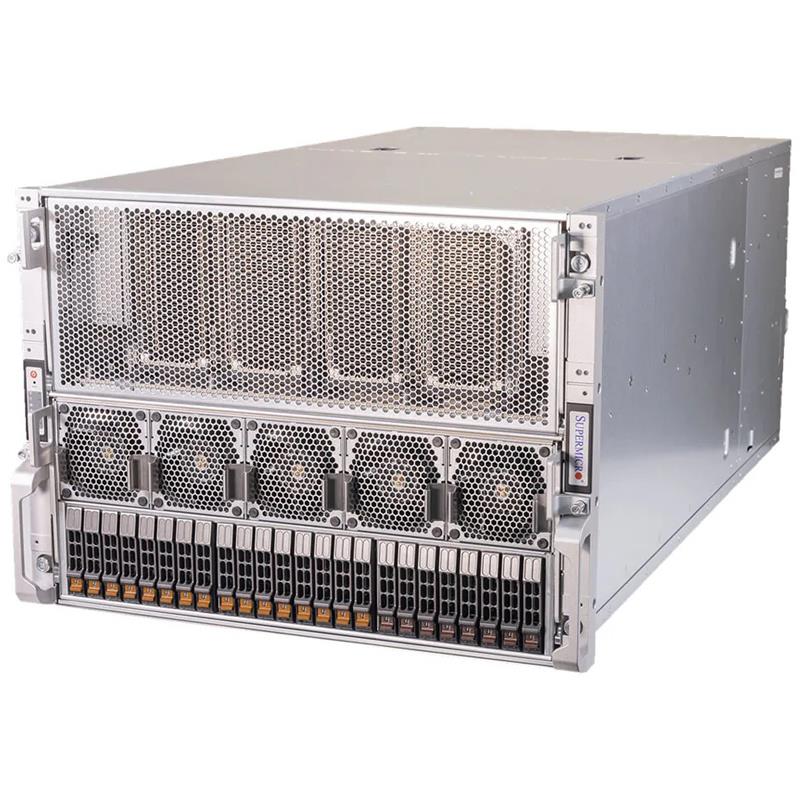

| Device Type | GPU A+ Server |
| Built-in Devices | Super H13DSG-O-CPU-D |
| Form Factor | 8U Rackmount - CSE-GP801TS |
| Dimensions (WxDxH) | Height 14" (355.6 mm) x Width 17.2" (437 mm) x Depth 33.2" (843.28 mm) |
| Weight | Gross Weight: 225 lbs (102.1 kg) - Net Weight: 166 lbs (75.3 kg) |
| Enclosure Color | Black Front & Silver Body |
| Processor |
| Processor Installed | Two AMD EPYC 9474F Processor With 48-Core/96 Thread (3.6GHz), TDP: 320W. |
| GPU |

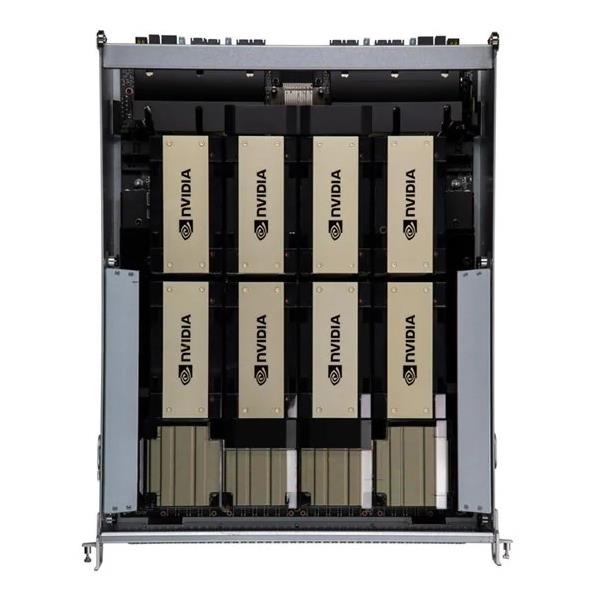

| GPU Installed | 1x NVIDIA HGX H200 8-GPU |
| System Memory |
| Memory Installed | 24x 96GB DDR5-5600 (at 4800) |
| Drive Bays |
| Hard Drive Installed | 1x 1.9TB U.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 1x Dual 10GbE RJ45, 8x 400G NDR/ETH OSFP (Installed) |
| Chipset | AMD SP5 |
| Input / Output |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 8 PCIe 5.0 x16 LP slots, 2 PCIe 5.0 x16 FHFL slots |
| Option A: 8 PCIe 5.0 x16 LP slots, 4 PCIe 5.0 x16 FHFL slots |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 2 front hot-swap 2.5" SATA drive bays, 4 front hot-swap 2.5" NVMe* drive bays, 12 front hot-swap 2.5" NVMe drive bays |
| (NVMe support may require additional storage controller and/or cables) |
| 1 M.2 NVMe slot (M-key) |
| System Cooling |
| Fans/Air Shroud | 10 heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | 6x 3000W Redundant Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
