| Main Specifications |

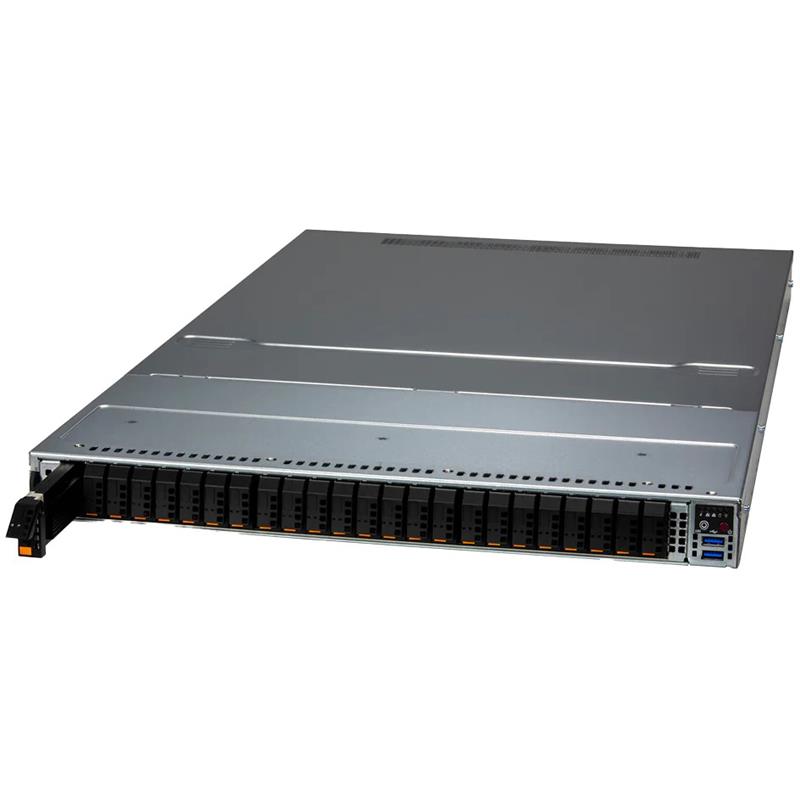

| Device Type | Front-loading All-flash Storage Server |
| Built-in Devices | Super X13DSF-A |
| Form Factor | 1U Rackmount - CSE-126ES2-R2K08P |
| Dimensions (WxDxH) | Height 1.7" (43.6 mm) x Width 17.2" (438.4 mm) x Depth 30.4" (773.25 mm) |
| Weight | Gross Weight: 68.74 lbs (31.2 kg) - Net Weight: 48 lbs (21.8 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | 2x Intel Xeon 6548Y+ Processor With 32-Core/64 Thread (2.5GHz) |
| System Memory |
| Memory Installed | 4x 64GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 1x 480GB M.2 NVMe Solid-state Drive (SSD), 1x 3.8TB E1.S NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | Quad-Port 25GbE Network Card With SFP28 Connectivity Installed |
| Chipset | Intel C741 |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 ports(rear), 2 USB 3.0 ports(front) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | Network activity, Power status, SSD activity, System information (overheat/UID) |
| Buttons | Power On/Off button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16 FHFL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | 24 front hot-swap E1.S NVMe drive bays |
| System Cooling |
| Fans/Air Shroud | 8 Heavy Duty 4cm Fan(s) |
| Power Supply |
| Power Supply | 2x 2000W Redundant Titanium Level (96%) Hot-plug power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
