| Main Specifications |

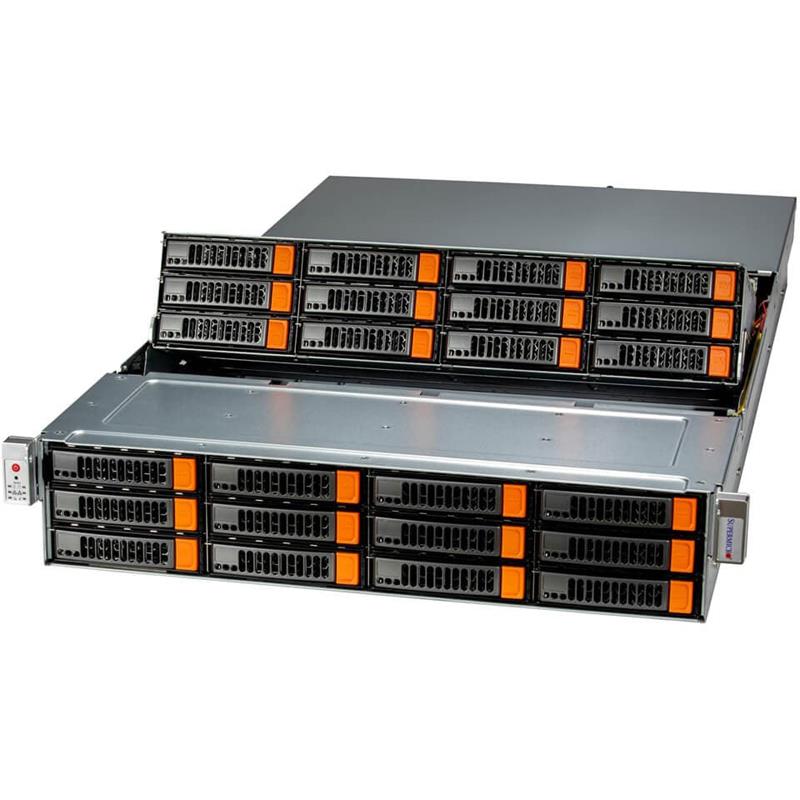

| Device Type | Front/top-loading Storage Server |

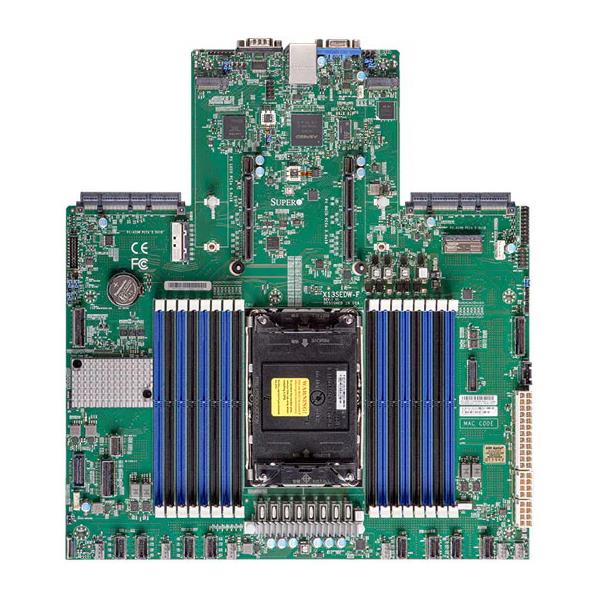

| Built-in Devices | Super X13SEDW-F |
| Form Factor | 2U Rackmount - CSE-826S3TS-R1K62P1 |
| Dimensions (WxDxH) | Height 3.5" x Width 17.2" x Depth 34" |
| Weight | Gross Weight: 74.5 lbs (33.79 kg) - Net Weight: 52 lbs (23.59 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | Intel Xeon 4510 Processor With 12-Core/24 Thread (2.4GHz), TDP: 150 W. |
| System Memory |
| Memory Installed | 4x 64GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD), 2x 20TB 3.5” SATA |
| On-Board Devices |
| Network Connectivity | Dual-Port 10GbE Network Card With RJ45 Installed |
| SATA/SAS | 1x SAS Controller - HW RAID via Broadcom 3908 Installed |
| Chipset | Intel C741 |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 ports(rear) |
| Video Output | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) ports |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | Network activity, Power status, SSD activity, System information (overheat/UID) |
| Buttons | Power On/Off button |

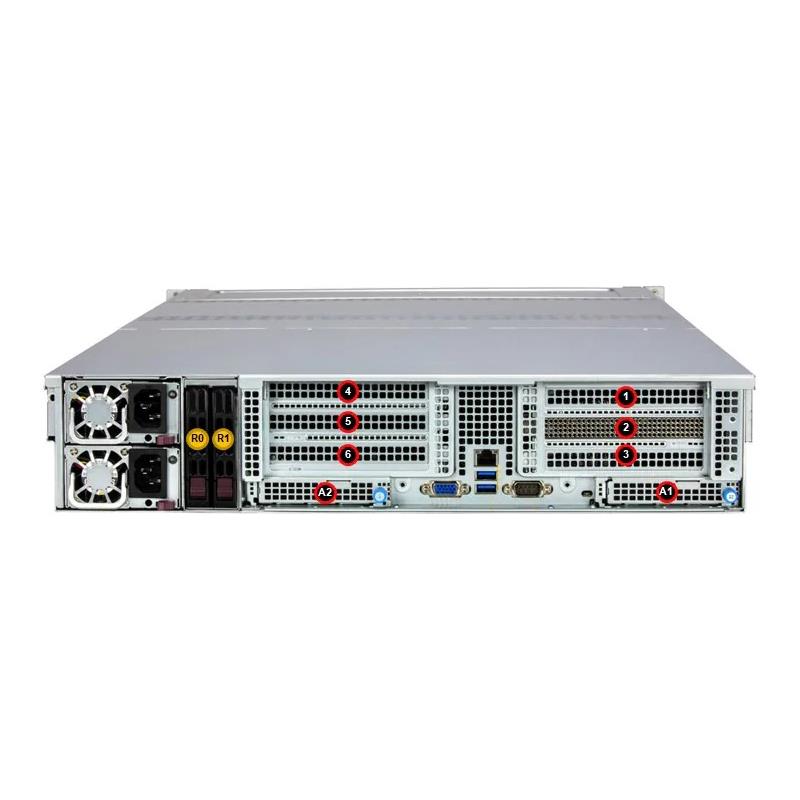

| Expansion / Connectivity |
| Expansion Slots Total (Free) | Option B: 2 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Default: 4 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option A: 2 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Drive Bays / Storage |

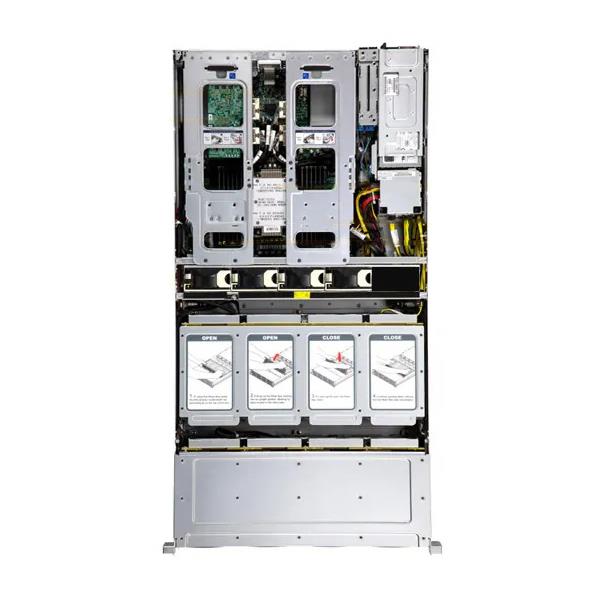

| Drive Bays Configuration | Default: 12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 2 rear hot-swap 2.5" SATA drive bays |
| Option B: 12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 4 rear hot-swap 2.5" NVMe drive bays, 2 rear hot-swap 2.5" SATA drive bays |
| Option A: 12 front hot-swap 3.5" SAS/SATA drive bays, 12 top-loading hot-swap 3.5" SAS/SATA drive bays, 2 rear hot-swap 2.5" SATA drive bays, 2 rear hot-swap 2.5" NVMe drive bays |
| Power Supply |
| Power Supply | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
