| Main Specifications |

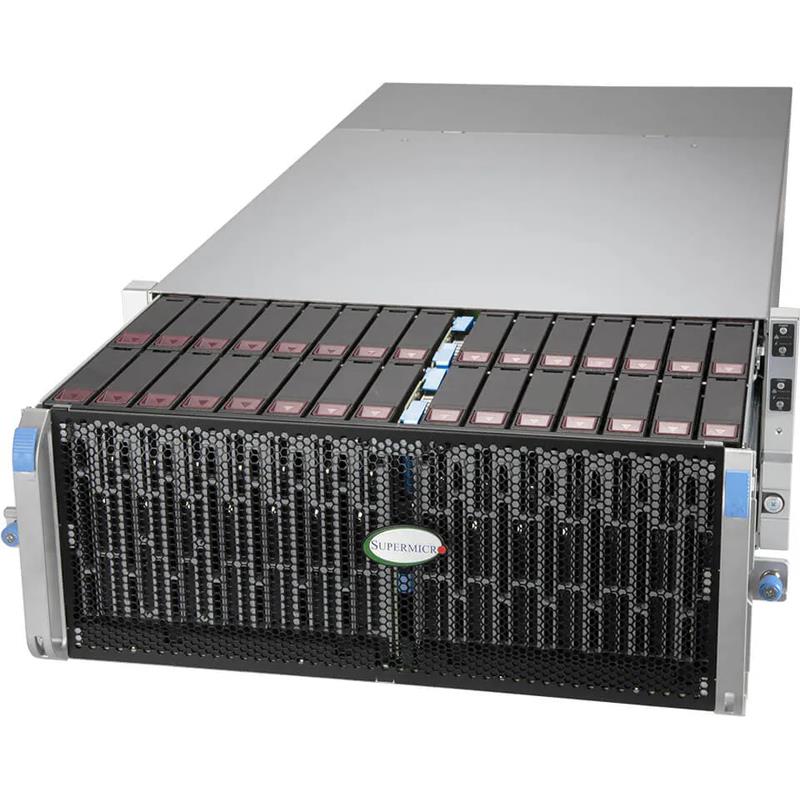

| Device Type | Top-loading Storage Server |
| Built-in Devices | Super X12DSC-6 |
| Form Factor | 4U Rackmount - CSV-947STS-R2K05P |
| Dimensions (WxDxH) | Height 7" x Width 17.6" x Depth 34.1" |
| Weight | Gross Weight: 170.5 lbs (77.3 kg) - Net Weight: 118 lbs (53.5 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Two Intel Xeon 4310 Processor With 12-Core/24 Thread (2.1GHz), TDP: 120 W. |
| System Memory |
| Memory Installed | 4x 64GB DDR4-3200 |
| Drive Bays |
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD), 4x 20TB 3.5” SATA |
| On-Board Devices |
| SATA/SAS | 1x SAS Controller - HW RAID via Broadcom 3916 Installed |
| Network Connectivity | Dual 10GbE RJ45 (Installed) |
| Chipset | Intel C621A |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port, 2 RJ45 10 GBASE-T LAN ports |
| USB(s) | 2 USB 3.0 ports(rear) |
| Video Output | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) ports |
| System BIOS |
| BIOS Type | AMI 128Mb SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3 PCIe 4.0 x16 LP slots |
| M.2 | 2 M.2 NVMe slots (M-key) |
| Drive Bays / Storage |
| Drive Bays Configuration | 2 rear hot-swap 2.5" SATA drive bays, 4 rear hot-swap 2.5" NVMe drive bays, 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays (NVMe support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | 6 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Power Supply | 2x 2000W Redundant Titanium Level (96%) Hot-plug power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
