  2. Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 4U Top-Loading Storage Server Powered by Two Intel Xeon 4510 Processors

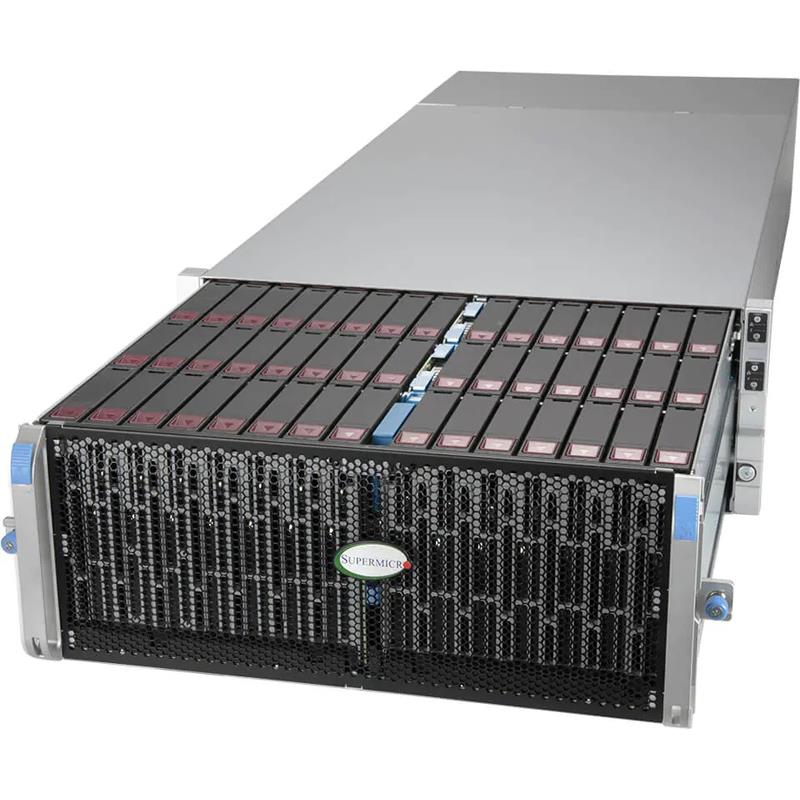

Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 4U Top-Loading Storage Server Powered by Two Intel Xeon 4510 Processors
Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 Top-Loading Storage 4U Complete Server Two Intel Xeon 4510 Processor (Installed) - Includes: 256GB of Memory, 1x 960GB M.2 NVMe SSD, 4x 20TB 3.5in SATA, SAS Storage Controller HW RAID via Broadcom 3916 and Dual-Port 10GbE Network Card With RJ45 Connectivity
Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 Top-Loading Storage 4U Complete Server Two Intel Xeon 4510 Processor (Installed) - Includes: 256GB of Memory, 1x 960GB M.2 NVMe SSD, 4x 20TB 3.5in SATA, SAS Storage Controller HW RAID via Broadcom 3916 and Dual-Port 10GbE Network Card With RJ45 Connectivity
Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 Top-Loading Storage 4U Complete Server Two Intel Xeon 4510 Processor (Installed) - Includes: 256GB of Memory, 1x 960GB M.2 NVMe SSD, 4x 20TB 3.5in SATA, SAS Storage Controller HW RAID via Broadcom 3916 and Dual-Port 10GbE Network Card With RJ45 Connectivity
Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 Top-Loading Storage 4U Complete Server Two Intel Xeon 4510 Processor (Installed) - Includes: 256GB of Memory, 1x 960GB M.2 NVMe SSD, 4x 20TB 3.5in SATA, SAS Storage Controller HW RAID via Broadcom 3916 and Dual-Port 10GbE Network Card With RJ45 Connectivity
Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 Top-Loading Storage 4U Complete Server Two Intel Xeon 4510 Processor (Installed) - Includes: 256GB of Memory, 1x 960GB M.2 NVMe SSD, 4x 20TB 3.5in SATA, SAS Storage Controller HW RAID via Broadcom 3916 and Dual-Port 10GbE Network Card With RJ45 Connectivity
Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 Top-Loading Storage 4U Complete Server Two Intel Xeon 4510 Processor (Installed) - Includes: 256GB of Memory, 1x 960GB M.2 NVMe SSD, 4x 20TB 3.5in SATA, SAS Storage Controller HW RAID via Broadcom 3916 and Dual-Port 10GbE Network Card With RJ45 Connectivity

Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 4U Top-Loading Storage Server Powered by Two Intel Xeon 4510 Processors

The Server Includes:

  • Processor: Dual Intel Xeon 4310 (12-core/2.1GHz)

  • Memory: 256GB DDR4-3200

  • Storage: 4x 20TB 3.5" SATA

  • Networking: Onboard Dual 10GbE RJ45

  • Power Supply: 2x 2600W Titanium Level

  • SAS Controller: HW RAID via Broadcom 3916

Complete Server 4U Top-Loading Storage Server, Supports Dual Socket P+ (LGA-4189) For Intel Xeon Scalable Processors 3rd Generation, Up to 36C/72T, Up to 54MB Cache, Supports up to 205W TDP CPUs (Air Cooled). Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM, in 16 DIMM slots, Chipset: Intel C621A. On-Board: SAS Controller HW RAID via Broadcom 3916. Drive Bays / Storage: 2 Rear Hot-Swap 2.5in SATA Drive Bays, 4 Rear Hot-Swap 2.5in NVMe Drive Bays, 90 Top-Loading Hot-Swap 3.5in/2.5in SAS/SATA Drive Bays, 2 M.2 NVMe Slots (M-key). Network Connectivity: 1 RJ45 1 GbE Dedicated BMC LAN Port. 2x 2600W Power Supplies

Components installed: Dual Intel Xeon 4310 Processro (12-core/2.1GHz), 256GB DDR4-3200, 4x 20TB 3.5" SATA, Onboard Dual 10GbE RJ45, SAS Controller: HW RAID via Broadcom 3916

$ 12,878.00$ 12,878.0012878.0USD

$ 12,878.00

Option not available

InStock
300 lb

    This combination does not exist.

    Add to Cart

    Key Applications


    • Big Data & Analytics, Data Lake

    • HPC and AI/ML Workloads

    • Telco & Cloud Service Providers

    • Financial Services & Healthcare Image Archives

    • Content Repositories

    • Government Data Protection


    Key Features


    • Dual socket 3rd Gen Intel Xeon Scalable processors, up to 72 Cores

    • 16 ECC DDR4-3200: LRDIMM/RDIMM

    • 3 x PCIe 4.0 x16 HHHL PCIe slots

    • 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)

    • 6 x 8cm hot-swap counter-rotate redundant PWM cooling fans

    • 2600W Redundant Power Supplies Titanium Level (96%)

    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

    • Drive Controller support via Broadcom 3916 or 3616

    Extra Specifications for Ready to Ship - Supermicro SSG-640SP-E1CR90-G1 4U Top-Loading Storage Server Powered by Two Intel Xeon 4510 Processors

    Main Specifications
    Device TypeTop-loading Storage Server
    Built-in DevicesSuper X12DSC-6
    Form Factor4U Rackmount - CSV-947HTS-R2K63P
    Dimensions (WxDxH)Height 7" x Width 17.6" x Depth 42.1"
    WeightGross Weight: 240 lbs (108.86 kg) - Net Weight: 150 lbs (68.04 kg)
    Processor
    Processor InstalledTwo Intel Xeon 4510 Processor With 12-Core/24 Thread (2.4GHz), TDP: 150 W.
    System Memory
    Memory Installed4x 64GB DDR4-3200
    Drive Bays
    Hard Drive Installed1x 960GB M.2 NVMe Solid-state Drive (SSD), 4x 20TB 3.5” SATA
    On-Board Devices
    SATA/SAS1x SAS Controller - HW RAID via Broadcom 3916 Installed
    Network ConnectivityDual 10GbE RJ45 (Installed)
    ChipsetIntel C621A
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port, 2 RJ45 10 GBASE-T LAN ports
    USB(s)2 USB 3.0 ports(rear)
    Video Output1 VGA port
    DOM2 SuperDOM (Disk on Module) ports
    System BIOS
    BIOS TypeAMI 128Mb SPI Flash EEPROM
    Management
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory, 4+1 Phase-switching voltage regulator
    FANFans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment, Thermal Control for fan connectors
    Expansion / Connectivity
    Expansion Slots Total (Free)3 PCIe 4.0 x16 LP slots
    M.22 M.2 NVMe slots (M-key)
    Drive Bays / Storage
    Drive Bays Configuration2 rear hot-swap 2.5" SATA drive bays, 4 rear hot-swap 2.5" NVMe* drive bays, 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays (NVMe support may require additional storage controller and/or cables)
    System Cooling
    Fans/Air Shroud6 Heavy Duty 8cm Fan(s)
    Power Supply
    Power Supply1x 2600W Redundant Titanium Level (96%) Hot-plug power supplies

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
