| Main Specifications |

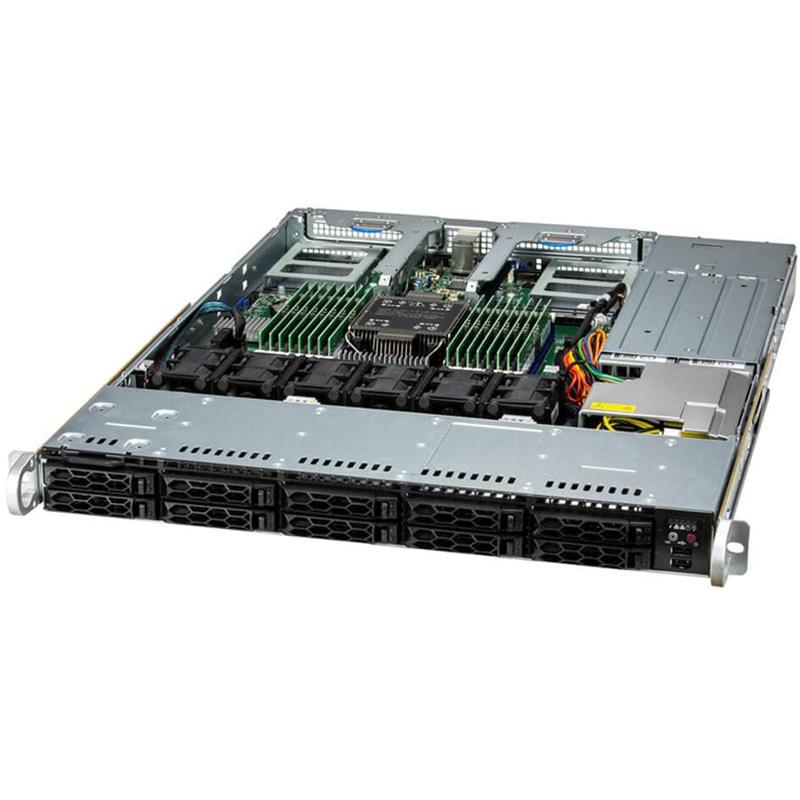

| Device Type | CloudDC Server |
| Built-in Devices | Super X13SEDW-F |
| Form Factor | 1U Rackmount - CSE-LB16TS-R0AWNP3 |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) |
| Weight | Gross Weight: 40 lbs (18.1 kg) - Net Weight: 25 lbs (11.3 kg) |
| Enclosure Color | Black Front & Silver Body |
| GPU |
| Max GPU Count | Up to 2 single-width GPUs |
| Supported GPU | NVIDIA PCIe: T1000, L4, A2 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Processor |
| Processor Installed | Two Intel Xeon 4510 Processor With 12-Core/24 Thread (2.4GHz), TDP: 150 W. |
| System Memory |
| Memory Installed | 2x 64GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 2x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | Dual 10GbE RJ45 (Installed) |
| Chipset | Intel C741 |
| SATA/SAS | SATA (6Gbps), RAID 0/1/5/10 support |
| NVMe. | NVMe, RAID 0/1/5/10 support(Intel VROC RAID key required) |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.2 Gen1 Type-A ports(rear), 2 USB 2.0 Type-A ports(front) |
| Video Output | 1 VGA port |
| Serial Port / Headers | 1 COM ports (1 rear) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | Drive activity, Network activity, Power status, Universal Information |
| Buttons | Power On/Off, Unit Identifier (UID) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Option A: 2 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible), 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option B: 2 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 10 front hot-swap 2.5" SAS*/SATA drive bays |
| Option A: 6 front hot-swap 2.5" SAS*/SATA drive bays, 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe/SAS/SATA drive bays |
| Option B: 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe/SAS/SATA drive bays (NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) |
| System Cooling |
| Fans/Air Shroud | 6 middle cooling PWM 40x40x56mm Fan(s) |
| Power Supply |
| Power Supply | 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
