| Main Specifications |

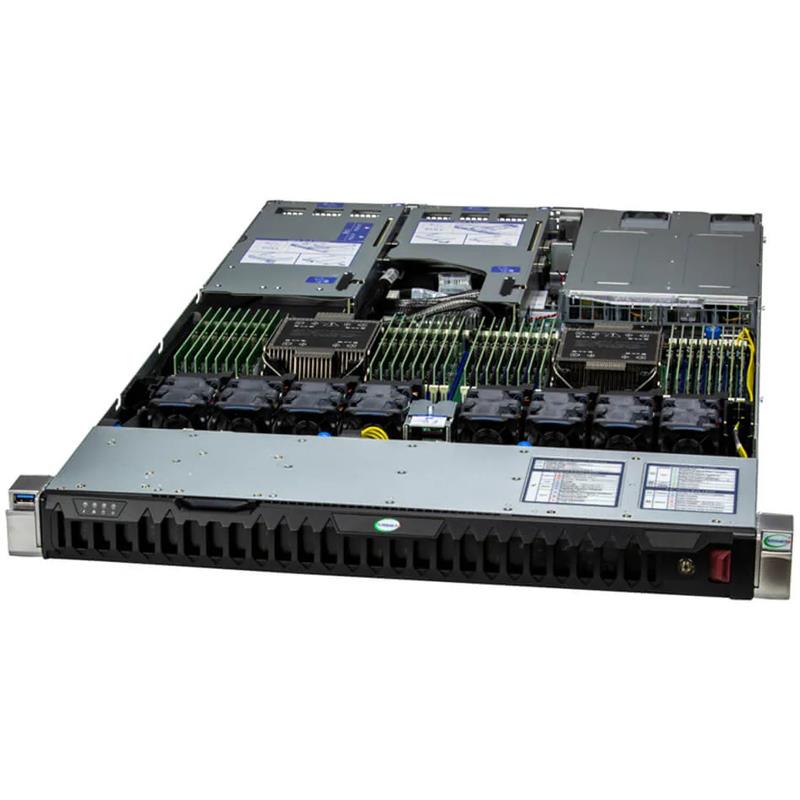

| Device Type | Hyper SuperServer |
| Built-in Devices | Super X13DEM |
| Form Factor | 1U Rackmount - CSE-HS119-R1K24P2 |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 29.4" (747 mm) |
| Weight | Gross Weight: 49 lbs (22.2 kg) - Net Weight: 34 lbs (15.4 kg) |
| GPU |
| Max GPU Count | Up to 1 double-width or 3 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, H100, RTX A5000, RTX A4000, L40S, L4 |
| Processor |
| Processor Installed | 2x Intel Xeon 6548Y+ Processor With 32-Core/64 Thread (2.5GHz) |
| System Memory |
| Memory Installed | 16x 32GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 2x 960GB M.2 NVMe Solid-state Drive (SSD), 2x 3.8TB U.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | Dual 10GbE RJ45 (Installed) |
| SATA/SAS | SATA (6Gbps), RAID 0/1/5/10 support |
| NVMe. | NVMe, RAID 0/1/5/10 support(Intel VROC RAID key required) |
| Chipset | Intel C741 |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 2.0 ports(rear), 1 USB 3.0 port(front) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | HDD activity, LAN1 activity, Power, System information |
| Buttons | Power On/Off, UID button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 FHHL slot, 2 PCIe 5.0 x16 FH/10.5"L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 NVMe/SATA slots (B+M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays |
| Option A: 12 front hot-swap 2.5" NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| System Cooling |
| Fans/Air Shroud | 8 counter-rotating 40x40x56mm Fan(s) |
| Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
| Power Supply | 2x 1200W Redundant Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
