| Main Specifications |

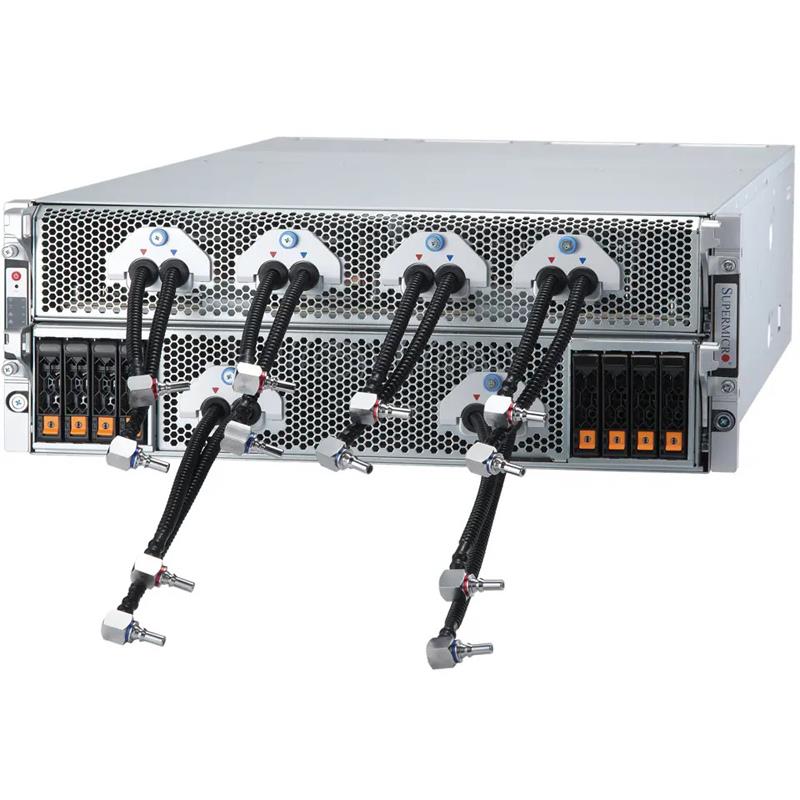

| Device Type | GPU SuperServer |
| Built-in Devices | Super X13DEG-M |
| Form Factor | 4U Rackmount - CSE-GP401TS-R000NP |
| Dimensions (WxDxH) | Height 6.85" (174 mm) x Width 17.6" (449 mm) x Depth 33.2" (842 mm) |
| Weight | Gross Weight: 138.89 lbs (63 kg) - Net Weight: 80.03 lbs (53 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | Two Intel Xeon 8570 Scalable Processor With 56-Core/112 Thread (2.1GHz), TDP: 350 W |
| GPU |
| GPU Installed | 1x NVIDIA HGX H200 8-GPU |
| System Memory |
| Memory Installed | 32x 96GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 2x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 8x Single 400G NDR/ETH OSFP, 1x Dual 200G NDR200/ETH QSFP112 (Installed) |
| Chipset | Intel C741 |
| Input / Output |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| Buttons | UID Button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 8 PCIe 5.0 x16 LP slots, 2 PCIe 5.0 x16 FHHL slots |
| Option A: 8 PCIe 5.0 x16 LP slots, 4 PCIe 5.0 x16 FHHL slots |
| M.2 | 2 M.2 NVMe slots (M-key) |
| Drive Bays / Storage |
| Drive Bays Configuration | 8 front hot-swap 2.5" NVMe drive bays |
| System Cooling |
| Fans/Air Shroud | 4 Fan 8cm Fans |
| Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
| Power Supply | 4x 5250W Titanium Level |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
