| Main Specifications |
| Device Type | GPU SuperServer |

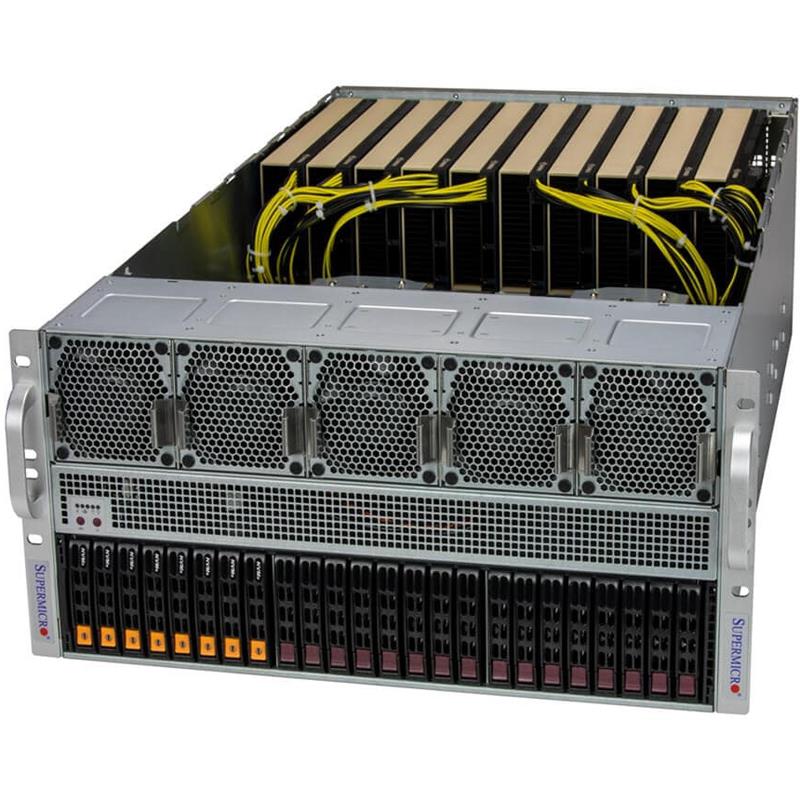

| Form Factor | 5U Rackmount - CSE-528GTS-R5K40P |

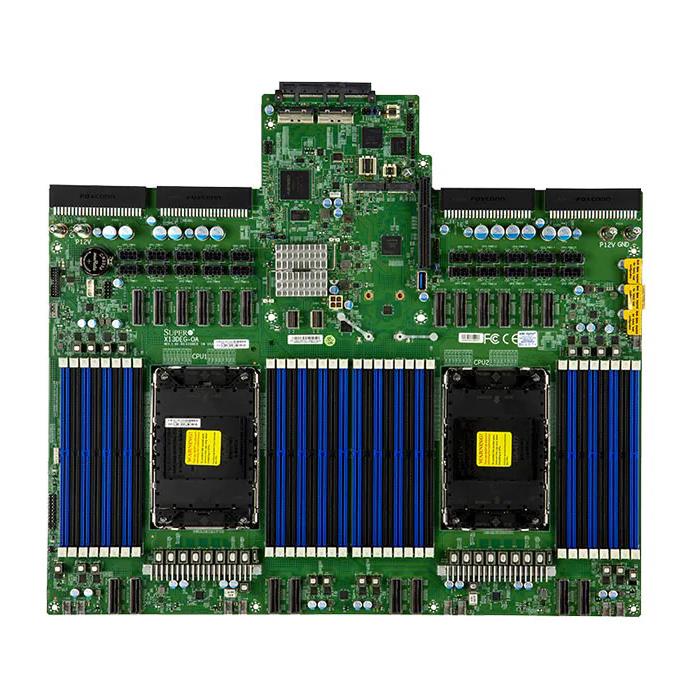

| Built-in Devices | Super X13DEG-OA |
| Dimensions (WxDxH) | Height 8.75" (222.5 mm) x Width 17.2" (437 mm) x Depth 29" (737 mm) |
| Weight | Gross Weight: 100 lbs (45.3 kg) - Net Weight: 65.5 lbs (29.7 kg) |
| Enclosure Color | Black Front & Silver Body |
| Processor |
| Processor Installed | 2x Intel Xeon 8562Y+ Processor With 32-Core/64 Thread (2.8GHz) |
| GPU |
| GPU Installed | 8x NVIDIA L40S PCIe |
| System Memory |
| Memory Installed | 16x 64GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 2x 960GB SATA Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 1x Single IB/Ethernet NDR200 Installed |
| Chipset | Intel C741 |
| Input / Output |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | Hard drive activity LED, Network activity LEDs, Power status LED, System Overheat & Power Fail LED |
| Buttons | Power On/Off button, System Reset button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 13 PCIe 5.0 x16 FHFL slots |
| M.2 | 2 M.2 NVMe slots (M-key) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 16 bays - 8 front hot-swap 2.5" NVMe drive bays, 8 front hot-swap 2.5" SATA drive bays |
| Option A: Total 24 bays - 8 front hot-swap 2.5" NVMe drive bays, 8 front hot-swap 2.5" NVMe* drive bays, 8 front hot-swap 2.5" SATA drive bays |
| (NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| 10 heavy duty fans with optimal fan speed control |
| Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
| Power Supply | 4x 2700W Redundant Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
