| Main Specifications |
| Device Type | IoT SuperServer |
| Built-in Devices | Super X13SAV-LVDS |
| Form Factor | Fan-based Embedded - CSE-E300 |
| Dimensions (WxDxH) | Height 1.69" (43 mm) x Width 10.43" (264.8 mm) x Depth 8.89" (225.8 mm) |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) - Net Weight: 3.7 lbs (1.6 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Intel Core i5-13500E Processor With 14-Core (2.4GHz) |
| System Memory |
| Memory Installed | 1x 32GB DDR4-3200 |
| Drive Bays |
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 1 RJ45 1GbE with Intel I210-AT, 1 RJ45 2.5GbE with Intel I225-LM |
| Chipset | Intel Q670E |
| Audio | Line Out, Mic in |
| Input / Output |

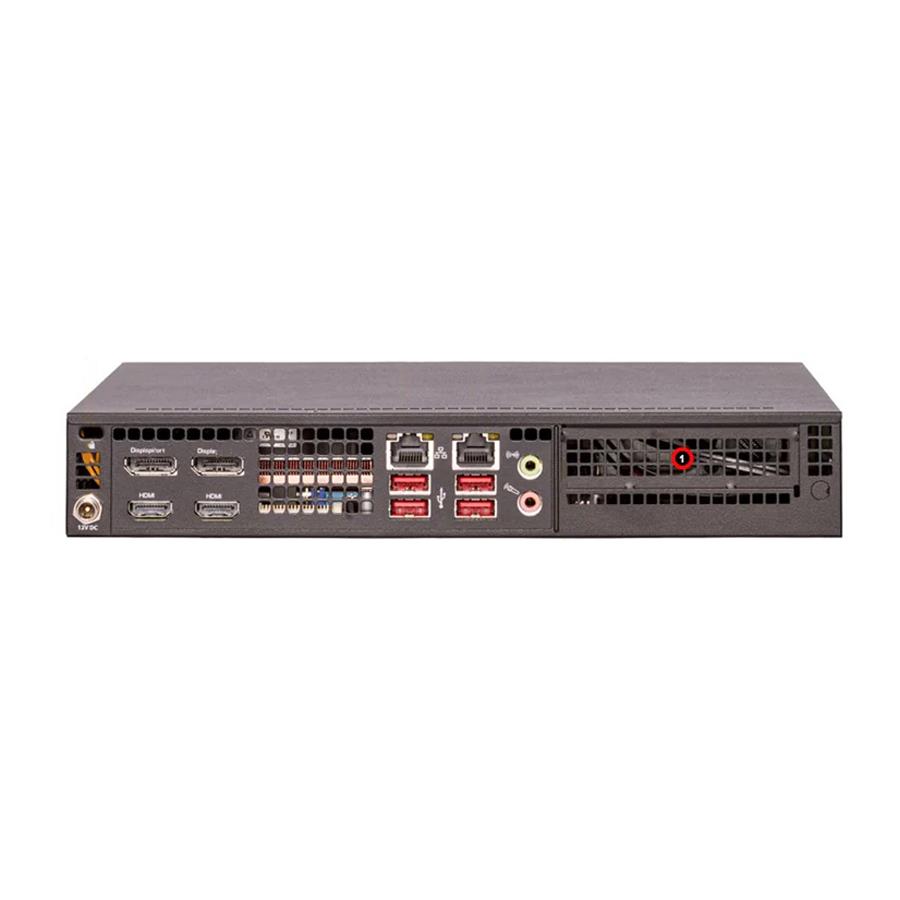

| LAN | 1 RJ45 2.5 GbE LAN port (Intel I225-LM), 1 RJ45 1 GbE LAN port (Intel I210-AT) |
| USB(s) | 4 USB 3.2 Gen2 Type-A ports(Rear) |
| Video Output | 1 HDMI 2.0b port(Rear), 1 HDMI 1.4 port(Rear), 2 DisplayPort ports(Rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0, Plug and Play (PnP), RTC (Real Time Clock) Wakeup, SPI dual/quad speed support |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Front Panel |

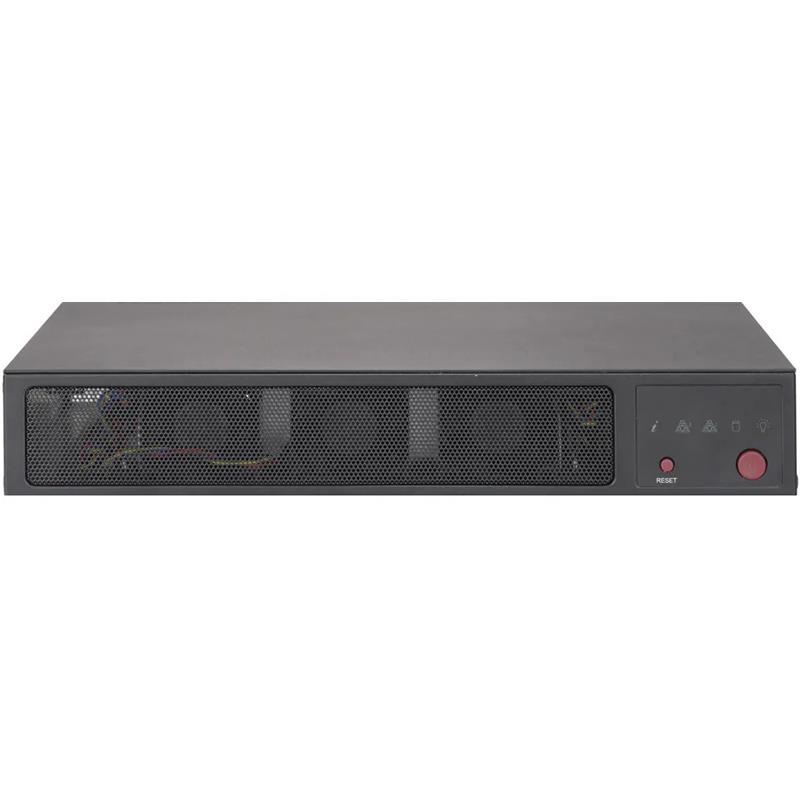

| LEDs | HDD Status, LAN1 activity, LAN2 activity, Power status, WIFI activity |
| Buttons | Power On/Off button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 (in x16) LP slot (Requires additional parts, please see the optional parts list for details. |
| M.2 | 1 M.2 PCIe 3.0 x1 slot (E-key 2230 USB 2.0) |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) |
| Drive Bays / Storage |
| Drive Bays Configuration | 1 internal fixed 2.5" SATA drive bay (SATA support may require additional storage controller and/or cables) |
| System Cooling |

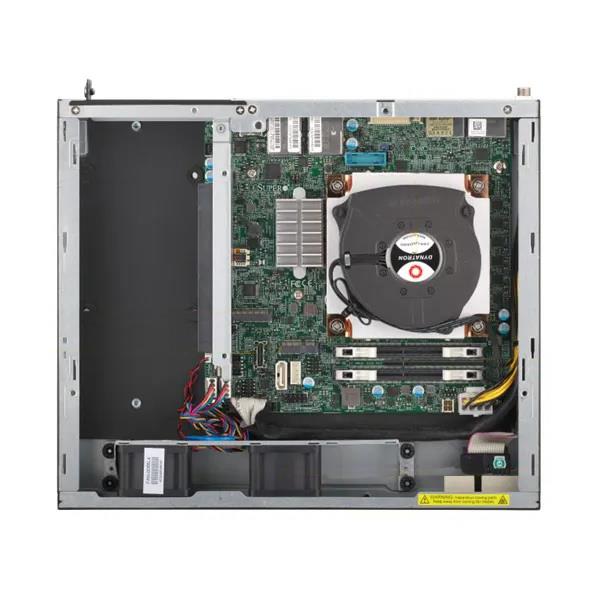

| Fans/Air Shroud | 2x 4-PIN PWM 40x40x28mm Fan(s), 1 CPU heatsink with 80x15mm Fan |
| Fans | 2x FAN-0065L4 |
| Power Supply |
| Power Supply | 1x 180W power supply |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
| Parts List - (Items Included) |
| Motherboard / Chassis | 1x MBD-X13SAV-LVDS / CSE-E300 |
| Cable(s) | 1x CBL-0473L, 1x CBL-PWEX-0982 |
| Parts | 1x MCP-260-00167-0B, 1x MNL-2558-QRG |
| Heatsink / Retention | 1x SNK-P0085A4 |
| Power Supply Number | 1x MCP-250-10133-0N |
