Supermicro AS-3015MR-H10TNR MicroCloud 3U Barebone Single AMD EPYC 4004 Series Processor
• Cloud Computing
• Web/Collocation Services
• Web Cache, CDN, Video Streaming
• Social Networking, Downloads
• Corporate - WINS, DNS, Print, Login
Barebone 3U Rackmount SuperServer, Per Node: Support Single Socket AM5 (LGA-1718), Supporting AMD EPYC 4004 Series Processor (Up to 16C/32T, Up to 32MB Cache). Max GPU Count: Up to 1 single-width GPU, Supported GPU: NVIDIA PCIe: T4, L4, A2. Up to 192GB in 4 DIMM Slots, UDIMM, Chipset: System on Chip, On-Board: NVMe (Native). Drive Bays: 2 Internal Fixed 2.5in PCIe 5.0 NVMe Drive Bays, 2 Internal Fixed 2.5in SATA Drive Bays, 1 M.2 NVMe slot (M-key 2280/22110), Network Connectivity: No NIC Option Supported, 2000W Power Supply - (CSE-MC301-000NFP + H13SRE-F) - AS-3015MR-H10TNR
1. Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
2. Support for up to 1 single-width PCIe GPU accelerator cards
3. Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
4. Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots
5. Up to 4 internal 2.5" (2 NVMe and 2 SATA) drive bays
6. 2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies
Extra Specifications for Supermicro AS-3015MR-H10TNR MicroCloud 3U Barebone Single AMD EPYC 4004 Series Processor
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Supermicro SuperDoctor® 5 (SD5) | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI 6.0 Power Management | ||
| PC Health Monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V | ||
| FAN | Fan speed control, Dual Cooling Zone | |
| Front Panel | ||
| Buttons | Power On/Off | |
| Product SKUs | ||
| Product SKUs | AS -3015MR-H10TNR | |
| Motherboard | ||

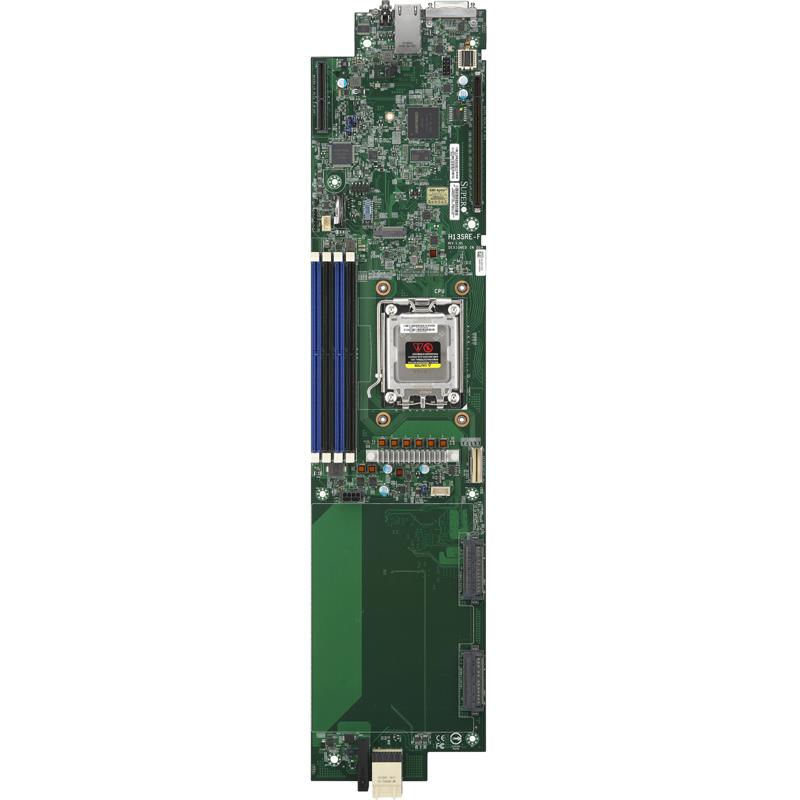

| Motherboard | Super H13SRE-F | |
| Processor (per Node) | ||
| CPU | Single Socket AM5 (LGA-1718) | |
| AMD EPYC™ 4004 Series Processor | ||
| Core Count | Up to 16C/32T; Up to 128MB Cache | |
| Note | Supports 65W - 170W TDP CPUs (Air Cooled)* | |
| *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details. | ||
| GPU (per Node) | ||
| Max GPU Count | Up to 1 single-width GPU | |
| Supported GPU | View GPU Options | |
| NVIDIA PCIe: L4, A2 | ||
| System Memory (per Node) | ||
| Memory | Slot Count: 4 DIMM slots | |
| View Memory Options | ||
| Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM | ||
| Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices (per Node) | ||
| NVMe | NVMe; (Native) | |
| Chipset | System on Chip | |
| Network Connectivity | No NIC option supported | |
| View AOC Options | ||
| Input / Output (per Node) | ||
| USB | 2 USB 2.0 ports | |
| Video | 1 port | |
| TPM | 1 TPM Onboard/port 80 | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| Chassis | ||

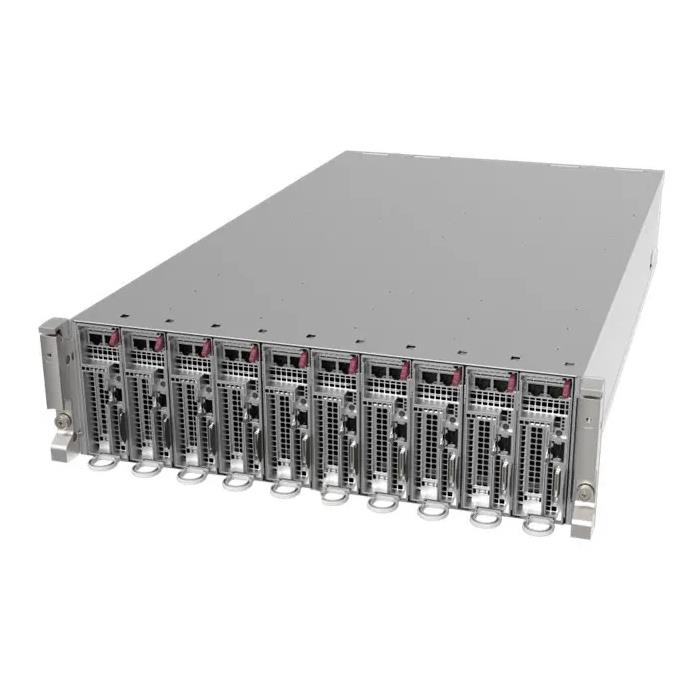

| Form Factor | 3U Rackmount | |
| Model | CSE-MC301-000NFP | |
| Dimensions and Weight | ||
| Height | 5.16" (131 mm) | |
| Width | 17.68" (449 mm) | |
| Depth | 30.51" (775 mm) | |
| Package | N/A | |
| Weight | Gross Weight: 147 lbs (66.68 kg) | |
| Net Weight: 107.5 lbs (48.76 kg) | ||
| Palletized Packing (W x H x L) | 27.17" (690 mm) x 16.93" (430 mm) x 44.88" (1140 mm) | |
| Available Color | No Paint | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage (per Node) | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 4 bays 2 internal fixed 2.5" PCIe 5.0 NVMe drive bays 2 internal fixed 2.5" SATA drive bays | ||
| 2 internal fixed 2.5" PCIe 5.0 NVMe drive bays | ||
| 2 internal fixed 2.5" SATA drive bays | ||
| M.2 | View M.2 Options | |
| 1 M.2 NVMe slot (M-key 2280/22110) | ||
| System Cooling | ||

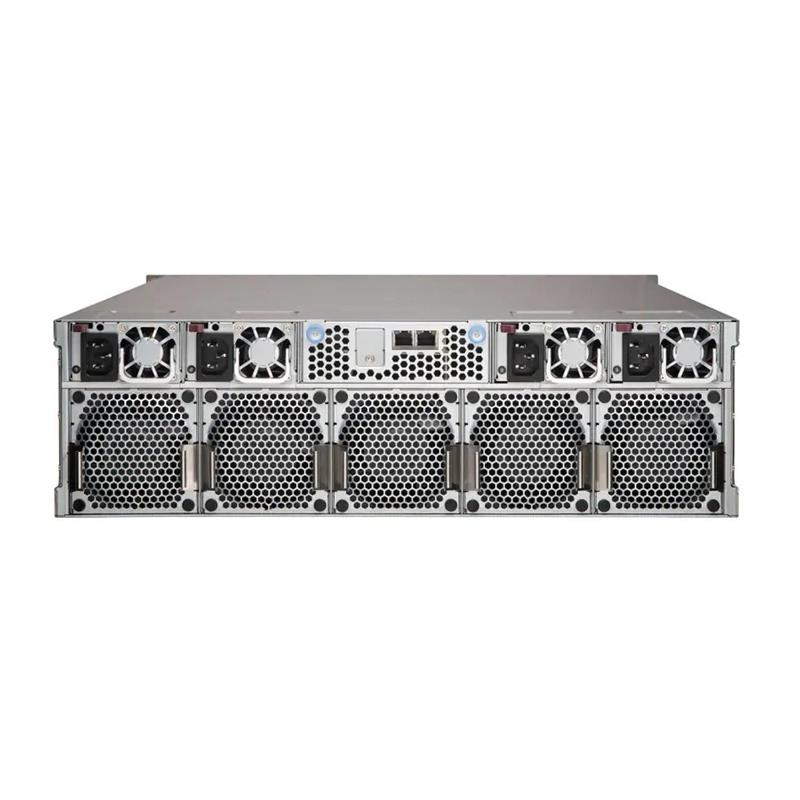

| Fans | 5 Heavy Duty 8cm Fan(s) | |
| Air Shroud | 10 Air Shrouds | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Accessories | MCP-250-30101-0N | $ 1.00 | 0 | PWS dummy cover without handle (for 73.5x40mm PWS),RoHS) | ||
| Accessories | MCP-240-30104-0N | 0 | MicroCloud MC301 HDD cage sets for top layer HDD,RoHS | |||
| Cable | CBL-SAST-1320YU2-85 | 0 | For 3rd/4th 2.5" SATA drive, SlimSAS x8 to 2x SFF-8639,20CM | |||
| Cooling Fans | FAN-0162L4-1 | 0 | 80x80x38 mm, 13.5K RPM Hot-swappable Cooling Fan for 3U10N MicroCloud Server | |||
| Cooling Fans | FAN-0225L4-1 | $ 1.00 | 0 | 80x80x80 mm, 13.4K-13.7K RPM Counter-rotating Rear Fan for Micro Cloud | ||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| GPU | GPU-NVL4 | 0 | NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w | |||
| GPU | GPU-NVA2-NC | 0 | NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W Configurable | |||
| Network Card(s) | AOC-S100GC-i2C-O | 1 | 2-ports 100GbE with QSFP28 based on Intel E810-CAM2,RoHS | |||
| Network Card(s) | AOC-CTG-i2S | 1 | (EOL_7/31/25) Intel 82599ES 2-port SFP+ 10Gb 2-port USB Gen2 x8 Micro-LP | |||
| Network Card(s) | AOC-C25G-I2S-O | $ 203.50 | 1 | MicroLP form factor 2 port 25G SFP28 based on Intel E810 | ||
| Network Card(s) | AOC-631102AC-ADAT | $ 118.50 | 1 | 2-ports Mellanox PCIe 25GbE SFP28 Gen 3.0/4.0 x 8 RoHS | ||
| Network Card(s) | AOC-S25GC-i2S-O | 1 | 2-ports 25Gb SFP28 Intel E810-XXVAM2 Gen 4.0 | |||
| Network Card(s) | AOC-CTG-B2T-O | 1 | 2-ports MicroLP 10G RJ45, based on Broadcom BCM57416 | |||
| Network Card(s) | AOC-CTGS-i2T-O | 1 | MicroLP Dual-port 10GbE RJ45, Intel X550 (Retail Pack) | |||
| Network Card(s) | AOC-CGP-i2 | 1 | Intel i350 2-port RJ45 1Gb Gen2 x4 Micro-LP | |||
| Power Supply | PWS-2K08A-1R | $ 536.00 | 0 | 1U 2000W 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc | ||
| Software | SFT-DCMS-Single | 0 | DataCenter Management Package (per node license); a must for switching BMC dedicated LAN (Rear/Front) |
