Main Specifications |

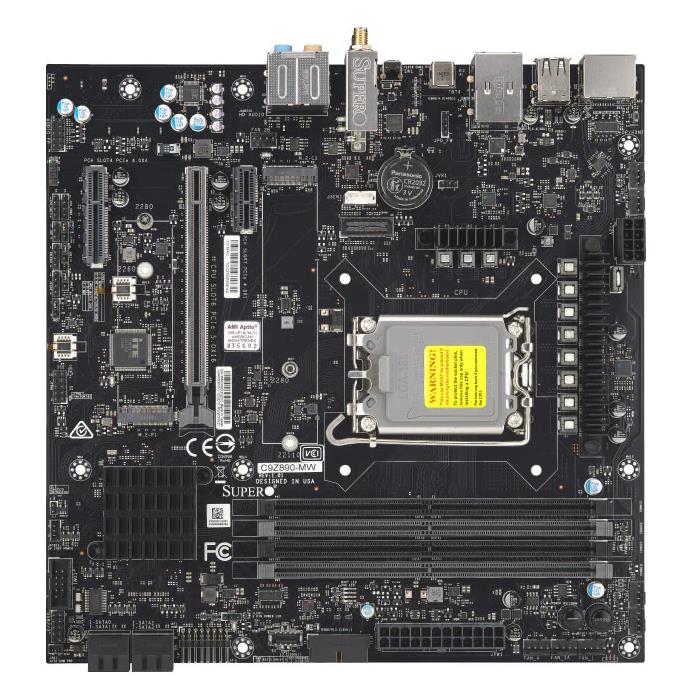

Device Type | Motherboard |
Form Factor | microATX |
Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
Processor |
Compatible Processors | Intel Core Ultra 9/7/5 Processors |
Compatible Socket | Single Socket LGA-1851 (Socket V1) supported, CPU TDP supports Up to 125W TDP |
Number of Cores | Up to 8+16 cores, 24 threads |
System Memory |
Memory Capacity | 4 DIMM slots, Up to 192GB Unbuffered non-ECC UDIMM, DDR5-5600+MT/s |
Memory Type | 5600 MT/s None-ECC UDIMM |
DIMM Sizes | 8GB, 24GB, 16GB, 32GB, 48GB |
Memory Voltage | 1.1V |
On-Board Devices |
Chipset | Intel Z890 |
SATA RAID | Intel Z890 Express controller for 4 SATA 3 (6 Gbps) ports, RAID 0,1,5,10 |
Audio | ALC 888S HD Audio |
Network Controllers | Single LAN with 1Gb Intel® Ethernet PHY I219-V |
| 5.76 Gbps Wi-Fi 7 + Bluetooth 5.4 Wi-Fi frequency band and bandwidth regulatory may vary between countries. The Bluetooth version may vary |
Input / Output |
SATA | 4 SATA 3 port(s) |
USB(s) | 4 USB 2.0 port(s) (2 via header, 2 rear Type-A) |
| 4 USB 3.2 Gen 1 port(s) (2 via header, 2 rear Type-A) |
| 1 USB 3.2 Gen 2x2 port(s) (1 Type C Header) |
| 1 USB 4.0 port(s) (1 rear Type-C Intel Thunderbolt 4) |
Video Output | 1 DP (DisplayPort) port(s), 1 Intel Thunderbolt 4 Type C (Shared w/ USB4) port(s), 1 HDMI port(s) Supports up to 8K@60Hz |
Serial Port / Headers | 1 COM Port(s) (1 header) |
TPM | 1 TPM Header |
Expansion / Connectivity |
Expansion Slots Total (Free) | 1 PCIe 4.0 x4 |
| 1 PCIe 5.0 x16 (in x16 slot) |
| 1 PCIe 4.0 x1 |
M.2 | Form Factor: 2280/22110, 2280 |
| Key: M-Key, M-Key |
| M.2 Interface: 1 PCIe 5.0 x4, RAID 0 & 1; 1 PCIe 4.0 x4, RAID 0 & 1 |
System BIOS |
BIOS Type | 256Mb SPI Flash with AMI BIOS |
BIOS Features | ACPI 6.0, Plug and Play (PnP), BIOS rescue hot keys, SMBIOS 3.0 or later, Riser card auto-detection support |
PC Health Monitoring |
FAN | 7x 4-pin fan headers (up to 7 fans), Fan speed control, 7 fans with tachometer status monitoring |
Other Features | WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking |
Environmental |
Operating Environment | Operating Temperature Range: 0°C - 50°C (32°F - 122°F) |
Parts List |
I/O Shield | 1x MCP-260-00193-0B |
QRG | 1x MNL-2707-QRG |
I/O Cables | 1x CBL-0044L |
Miscellaneous |
Included Accessories | 2x CBL-ANTD-0115SMA, 1x JMP-0010L-0000-PRX |
