| Main Specifications |

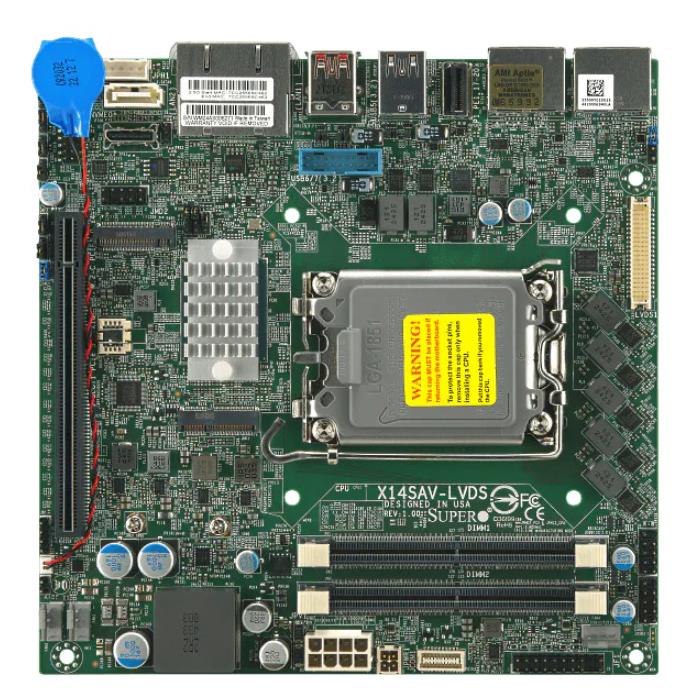

| Device Type | Motherboard |
| Form Factor | Mini-ITX |
| Dimensions (WxDxH) | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| Compatible Processors | Intel Core Ultra 9/7/5 Series 2 Processors |
| Compatible Socket | Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 65W TDP |
| Number of Cores | Up to 24 cores |
| System Memory |
| Memory Capacity | 2 DIMM slots, Up to 96GB Unbuffered ECC/non-ECC SODIMM, DDR5-6400MT/s, CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7) |
| Memory Type | 5600/4800/4400/4000 MT/s ECC/non-ECC DDR5 SODIMM Unbuffered Up to 96GB of memory with speeds of up to 5600 MT/s(1DPC) |
| DIMM Sizes | 8GB, 16GB, 24GB, 32GB, 48GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel W880 |
| SATA/SAS | Intel W880 Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Network Controllers | Dual LAN with Intel I226LM Ethernet Controller |
| TPM | 1 TPM Header, 1 TPM TPM 2.0 onboard |
| Input / Output |
| SATA | 1 SATA3 (6Gbps) port(s) |
| LAN | 2 RJ45 2.5 Gigabit Ethernet LAN port |
| USB(s) | 4 USB 2 port(s) (4 via header), 2 USB 3 port(s) (2 via header), 3 USB 3.2Gen2x1 port(s) (3 rear type A), 1 USB 3.2 Gen2x2 port(s) (1 rear type C) |
| Video Output | 1 LVDS port(s) 1x 24bit dual Channel LVDS, 2 DP (DisplayPort) port(s), 2 HDMI port(s) |
| Serial Ports | 2 COM Port(s) (2 header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 slot(s) |
| M.2 | Key: M-Key, E-Key |
| Form Factor: 2280, 2230 |
| M.2 Interface: 1 PCIe 5.0 x4; 1 PCIex1/USB2 |
| System BIOS |
| BIOS Type | AMI 32MB AMI UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Management |
| Software | Supermicro Server Manager (SSM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New |
| Memory |
| Voltage | VBAT, System temperature, System level control, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V, Monitors CPU Core Voltages, Fan speed control, PWM fan speed control, Power LED, Thermal Control for 3 Fan Connectors, 3 fans with tachometer monitoring |
| PC Health Monitoring |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12-24V DC Power Connector |
| FAN | 3x 4-pin fan headers (up to 3 fans) |
| Environmental |
| Operating Environment | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Relative Humidity Range: 10% - 85% (non-condensing) |
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 85°F) |
| Parts List |
| QRG | 1x MNL-2751-QRG |
| I/O Shield | 1x MCP-260-00200-0N |
| I/O Cables | 1x CBL-PWEX-1066, 1x CBL-0044L |
