| Main Specifications |

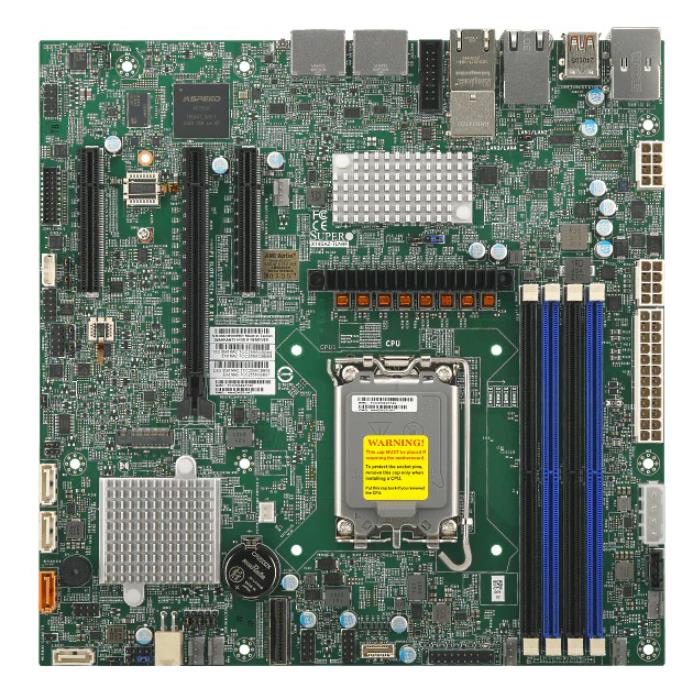

| Device Type | Motherboard |
| Form Factor | Micro-ATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | Intel Core Ultra 9/7/5 Series 2 Processors |
| Compatible Socket | Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP |
| Number of Cores | Up to 24 cores |
| System Memory |
| Memory Capacity | 4 DIMM slots, Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MT/s, Supports up to 192GB of DDR5 UDIMM/CUDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots |
| Memory Type | 5600 MT/s Up to 192GB of memory with speeds of up to 5600 MT/s(2DPC) |
| DIMM Sizes | 8GB, 16GB, 24GB, 32GB, 48GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel W880 |
| Audio | ALC 888S HD Audio |
| Network Controllers | Dual LAN with Intel X550 10GBase-T Ethernet Controller, Dual LAN with Intel I226LM Ethernet Controller |
| TPM | TPM TPM 2.0 onboard, 1 TPM Header |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) port(s) |
| USB(s) | 6 USB 3.2 Gen2 port(s) (4 rear type A, 2 via header) 4 USB 2 port(s) (4 via header) |
| Video Output | 2 HDMI port(s), 1 VGA port(s), 2 DP (DisplayPort) port(s) |
| Serial Ports | 2 COM Port(s) (2 header RS232) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16, 2 PCIe 4.0 x4 |
| M.2 | Key: M-key |
| Form Factor: 2280/22110 |
| M.2 Interface: 1 PCIe 5.0 x4 |
| System BIOS |
| BIOS Type | AMI 32MB AMI UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Management |
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software |
| PC Health Monitoring |
| Voltage | VBAT, Memory temperature, CPU temperature, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID, 6 fans with tachometer status monitoring |
| LED | Power LED |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support |
| Other Features | RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Environmental |
| Operating Environment | Operating Relative Humidity Range: 10% - 85% (non-condensing) |
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) |
| Non Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 85°F) |
| Parts List |
| I/O Shield | 1x MCP-260-00194-0N |
| QRG | 1x MNL-2741-QRG |
| I/O Cables | 4x CBL-0044L |
